RealWear Navigator Z1 Thermal Camera Wearable for Hazardous Work

Imagine working in a hot, smoky plant and still being able to see hidden heat sources without stopping. The RealWear Navigator Z1 Thermal Camera Wearable for Hazardous Work is a hands-free device that puts a thermal imager and a high-resolution visual camera right in front of your eyes. It solves the problem of unsafe, time-consuming inspections in dangerous environments. You need it to stay safe, stay productive, and finish the job faster.

RealWear Navigator Z1 Thermal Camera Wearable for Hazardous Work

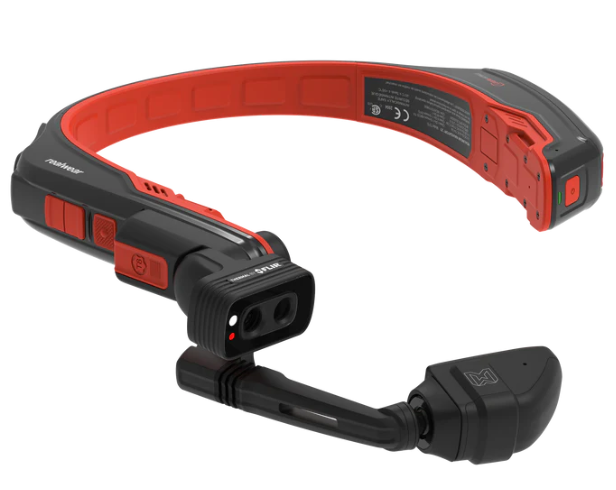

Workers in oil, gas, chemicals, or utilities often cannot get close to equipment that may be overheating or leaking. Missing a hot spot can lead to costly downtime or even accidents. This wearable camera gives you an instant thermal view while you keep both hands free for tools and controls. The solution is simple: a rugged headset with voice control, a FLIR thermal sensor, and a 48 MP visual camera, all built to survive ATEX Zone 1 and MIL-STD-810H conditions.

Benefits

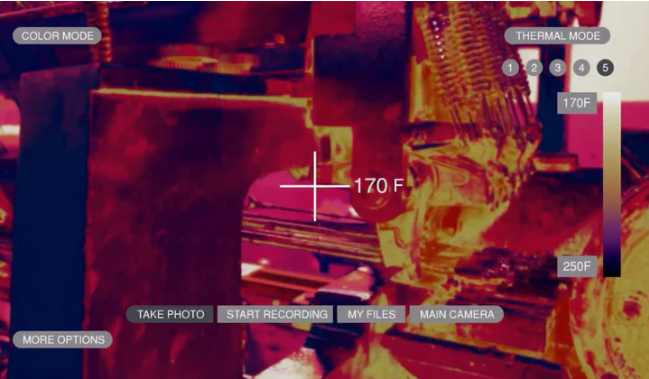

• See temperature differences instantly, so you can spot problems before they grow.
• Hands-free voice commands let you stay focused on the task, not on a tablet.
• Rugged design meets ATEX and IP66 standards, keeping you safe in explosive atmospheres.
• Long-lasting 2550 mAh battery lasts a full shift, and you can swap it without leaving the area.
• High-resolution video and zoom let you record evidence for reports or remote experts.

Usages

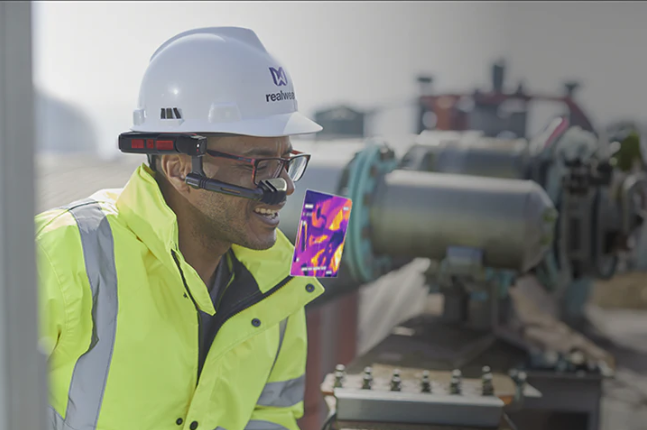

Use the Navigator Z1 when you inspect pipelines for hot spots, check electrical panels for overheating, or monitor fire-suppression systems in a refinery. It works well for routine maintenance in confined spaces where you cannot carry a handheld camera. The device also helps emergency responders see through smoke during a fire, and it can be mounted on a lift to scan large rooftops for heat loss. In every case, you stay hands-free and protected while getting clear thermal and visual data.

Key Features

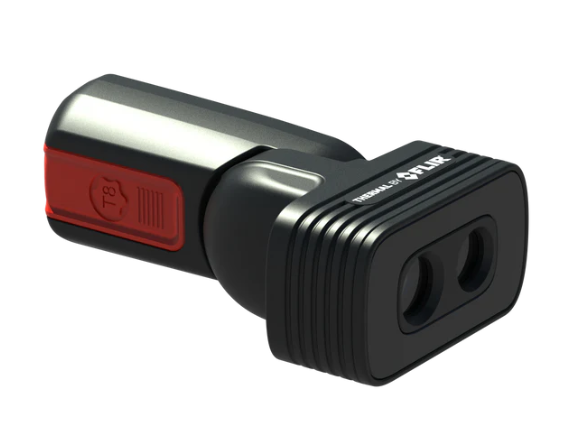

• FLIR Lepton 3.5 thermal sensor, 160 120 resolution, 57 FOV.
• 48 MP visual sensor with 1080p @ 60 fps video and >6 digital zoom.
• 0.35" monocular LCoS display, 1280 720 HD, 24 field of view.
• Voice-controlled interface with four noise-canceling microphones.
• Qualcomm QCS6490 processor, 8 GB RAM, 128 GB internal storage.
• Android 12 (AOSP) with WearHF hands-free OS.
• Wi-Fi 6/6E, Bluetooth 5.2, multi-constellation GPS.
• ATEX Zone 1, Class I-III Division 1, IP66, MIL-STD-810H certified.
• 2550 mAh removable, hot-swappable battery for full-shift use.
• Weight 383 g, operates from -20 C to +55 C, 2-meter drop tested.

Specifications
