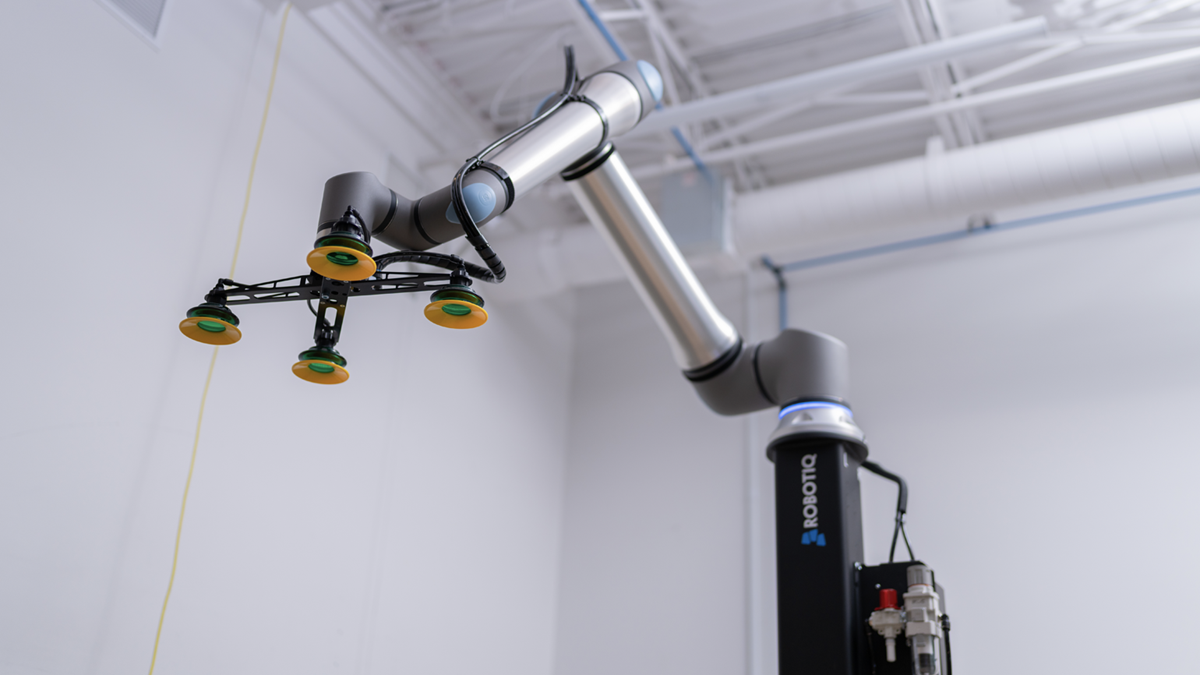

The PowerPick gripper line is designed to handle a wide range of applications, with a key focus on maximizing lifting capacity, making the grippers preferred choices to perform heavy-duty tasks like palletizing. Equipped with a vacuum generator that attaches to the base of the robot, the PowerPick grippers set a new standard for lightweight and enhanced lifting performance in their category. It is available in different variations for the UR10e, UR20, and UR30

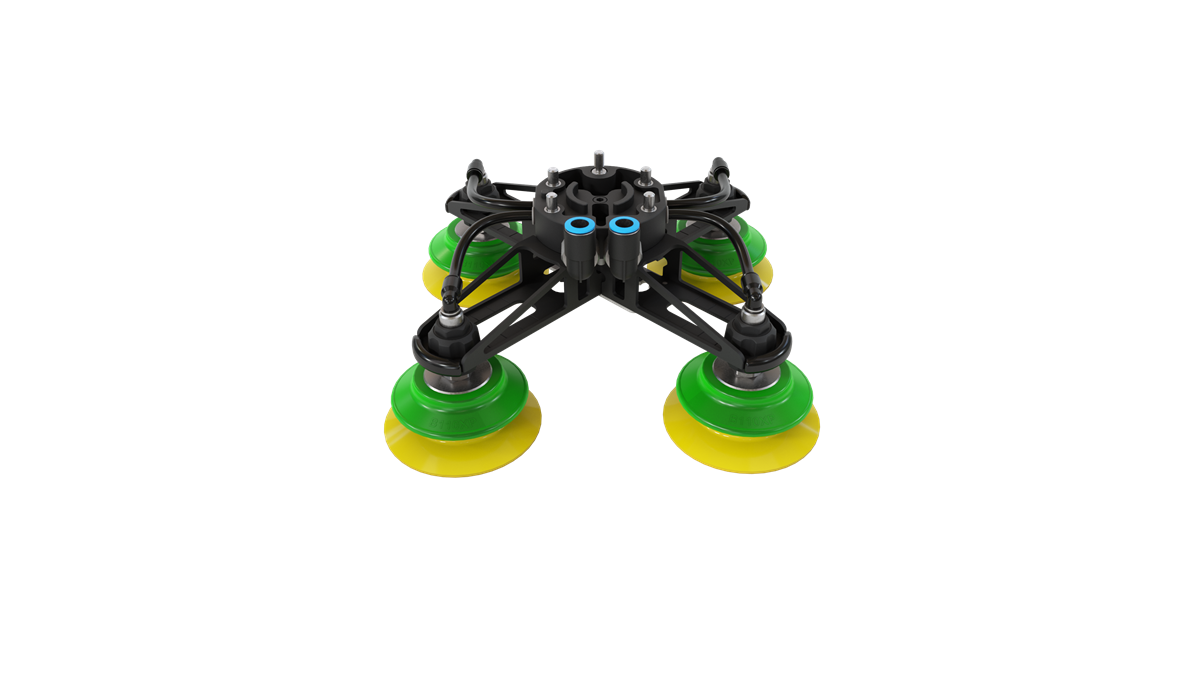

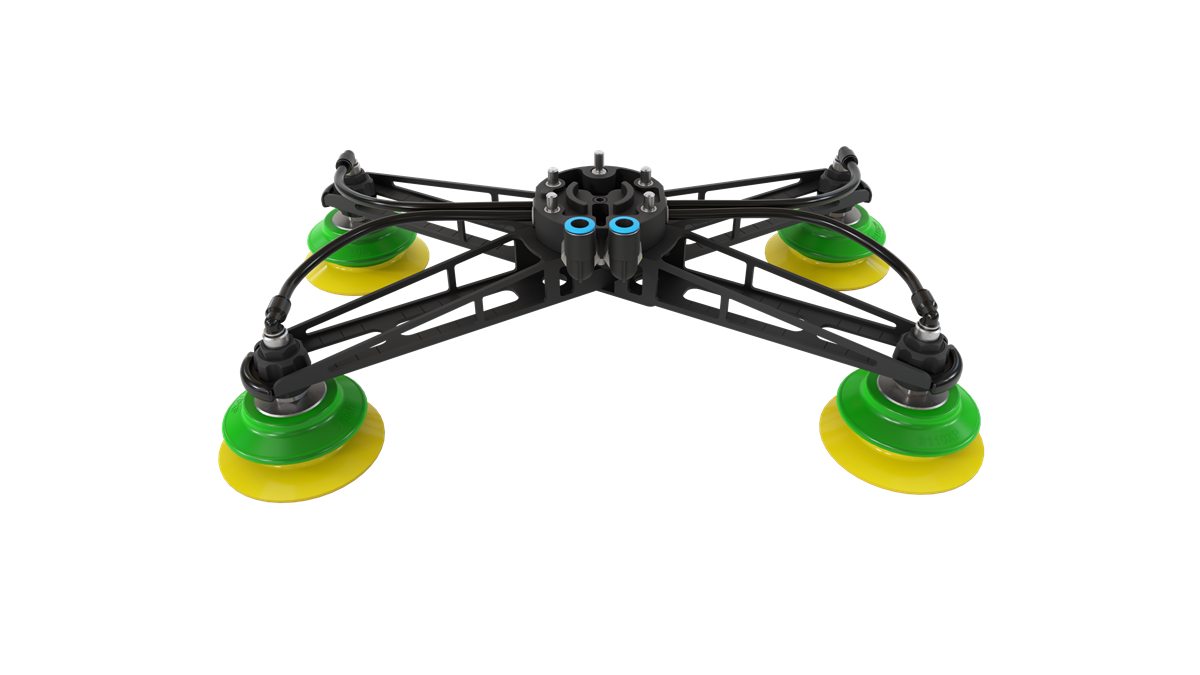

PowerPick10:
PowerPick10 offers 42 different configurations to accommodate a wide range of box sizes, shapes, materials, and weights without compromising stability. For increased throughput and picking multiple boxes at a time, up to 4 PowerPick10 units can be mounted side by side.
Features:
- Powerful - Lightweight design to maximize the lift capacity of robots.
- Fast cycle time with integrated blow off.
- Smart - part detection to minimize production stops.
- Adaptable - Easily Configurable to adapt to different objects.
- Dual Zone - pick multi objects simultaneously & control separately.
- Plug and play - Easy to use URCap
- Robust - proven, industrial grade components.
Specifications:
| Energy source |
Compressed air and electricity |
| Gripper mass |
See the Tool Center Point and Center of Mass section. |
| Controller mass |
2.46 kg / 5.40 lb |
| Gripping time |
310 ms |
| Release time (with blow off) |
20 ms |
| Minimal feed pressure |
3 bar / 45 psi |
| Feed pressure for low noise (< 80 dBa) |
4 bar / 60 psi |
| Optimal feed pressure for compressed air consumption |
5.5 bar / 80 psi |
| Feed pressure for maximum payload |
7 bar / 100 psi |
| Maximal feed pressure |
8 bar / 115 psi |
| Maximal vacuum at optimal feed pressure |
67% |
| Air consumption at low noise pressure (< 80 dBa) |
1614 SLPM / 42.64 GPM |
| Maximal payload 2 |
13 kg / 28.6 lb |
