Imagine a factory floor where every sensor talks instantly, even when the power flickers or the network drops. The Robustel EG5120 5G 4G Industrial Edge Gateway Dual SIM GNSS Bluetooth makes that vision real. It is a rugged gateway that connects machines to the cloud using 5G or 4G, while also offering GPS location, Bluetooth, and dual SIM backup. If you have ever lost data because a single cellular link failed, this device solves that problem and keeps your operations running.

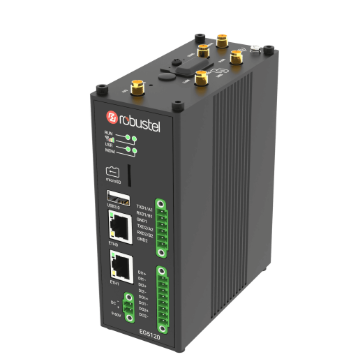

Robustel EG5120 5G 4G Industrial Edge Gateway Dual SIM GNSS Bluetooth
Many industrial sites struggle with unreliable connectivity, especially in remote or harsh environments. When a connection drops, data stops, alarms are missed, and productivity suffers. This gateway removes that risk by providing two cellular SIM slots, fast 5G speeds, and optional Wi-Fi, so you always have a path to the cloud. It also adds precise GPS data and Bluetooth for local device pairing, giving you a single, compact solution that covers all communication needs.
Key Features
- Quad-core Cortex-A53 CPU at 1.6 GHz.
- 2 GB DDR4 RAM and 16 GB eMMC storage.

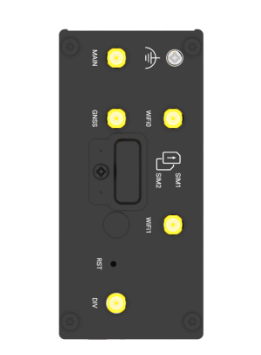

- Dual Mini-SIM slots for 4G/5G redundancy.

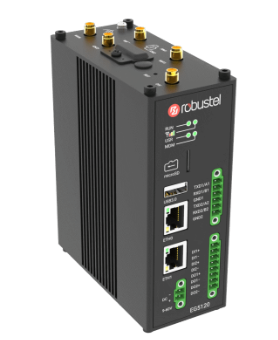

- Four 5G antennas and two 4G antennas with SMA-K connectors.

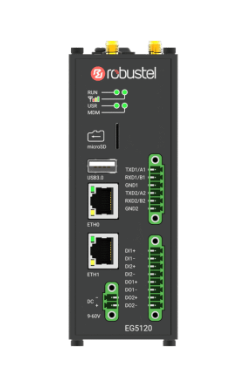

- Two RJ45 Ethernet ports supporting 1 Gbps.
- Two configurable RS-232/RS-485 serial ports.
- Four digital I/O (2 DI, 2 DO) wet-contact ports.
- Optional Wi-Fi 802.11ac with dual-band support.
- Optional Bluetooth 5.2 for short-range device links.
- GPS module requiring a 4-in-1 combo antenna.
- Power input 12/24/48 V DC, idle 5 W, max 20 W.
- IP30 metal housing, 567 g, operating from -40 C to +70 C.
Specifications
| Hardware System |
|
| CPU |
Quad core Cortex-A53, 1.6 GHz |
| NPU |
2.3 TOPS |
| RAM |
2 GB DDR4 |
| Flash |
16 GB eMMC |
| Cellular Interface |
|
| Version |
4G / 5G |
| Antennas |
2 (4G) / 4 (5G) |
| Connector |
SMA-K |
| SIM |
2 x Mini SIM (2FF) |
| Ethernet Port |
|
| Number of Ports |
2 x RJ45, 10/100/1000 Mbps |
| Protection |
Magnet isolation 1 KV; 1000 BAST-T compliant |
| Serial Port |
|
| Number of Ports |
2 x RS-232/RS-485 (Software configurable) |
| Connector |
6-pin 3.5 mm terminal block with lock |
| Baud Rate |
300 bps ~ 115200 bps |
| DI/DO Port |
|
| Number of Ports |
2 x DI + 2 x DO (Wet contact) |
| Connector |
8-pin 3.5 mm terminal block |
| Max Ratings |
+30 V DC / 100 mA |
| Wi-Fi (Optional) |
|
| Standards |
802.11a/b/g/n/ac, 2 x 2 MIMO (AP & Client) |
| Frequency |
2.4 GHz & 5 GHz ISM bands |
| Security |
WEP, WPA/WPA2, AES-CCMP |
| Bluetooth (Optional) |
|
| Standards |
Bluetooth 2.1, 3.0, 5.2 (EDR support) |
| GNSS (Optional) |
|
| Technology |
GPS (Requires 4-in-1 Combo Antenna) |
| Other Interfaces |
|
| Storage |
1 x microSD |
| USB |
1 x USB 2.0 (Host), Type A, 5 V / 900 mA |
| Reset |
1 x RST button |
| LED Indicators |
RUN, Signal, USR, MDM |
| Software |
|
| Operating System |
RobustOS Pro (Based on Debian 11 Bullseye) |
| Network Protocols |
PPP, PPPoE, TCP, UDP, DHCP, NAT, HTTPs, SSH2, etc. |
| VPN Tunnels |
IPsec, OpenVPN, GRE, L2TP, PPTP, DMVPN |
| Firewall |
DMZ, anti-DoS, Filtering (IP/MAC), Port Mapping |
| SDK / Development |
|
| Programming |
C, C++, Python, Java, Node.js |
| Available Resources |
14 GB Flash / 1.5 GB RAM available for SDK |
| Power Supply |
|
| Input Voltage |
12/24/48 V DC (Range: 9 ~ 60 V DC) |
| Consumption |
Idle: 5 W / Max: 20 W (@ 12 V) |
| Physical |
|
| Ingress Protection |
IP30 |
| Housing & Weight |
Metal, 567 g |
| Dimensions |
49 x 105 x 128 mm |
| Operating Temperature |
-40°C to +70°C |
| Compliance |
|
| EMI/EMS |
EN 55032, EN 61000-4 (Levels 2-4) |
| Environmental |
RoHS 2.0 |
| Certifications |
CE, UKCA, CB, RCM, FCC, IC, PTCRB, AT&T, Verizon, UL |
| Order Info |
|
| Order Code |
A009000717 |
| Package Contents |
Gateway, DIN Rail Kit, Power Adapter, Antennas (Cell/Wi-Fi/GNSS) |
