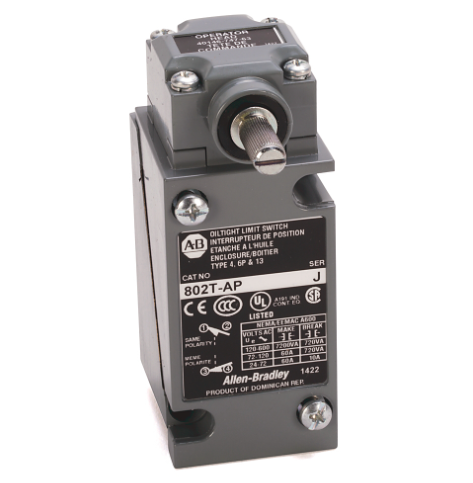

Rockwell 802T-AP Oiltight Limit Switch Metal Plug-In IP67 NEMA 6P

Tired of unexpected machine stops that cost you time and money? The Rockwell 802T-AP Oiltight Limit Switch Metal Plug-In IP67 NEMA 6P is a rugged safety device that tells your equipment when a moving part has reached its safe end point. It stops the motor before damage occurs, keeping your line running smoothly. If you need a reliable, oil-tight switch that can survive harsh environments, this part is made for you.

Rockwell 802T-AP Oiltight Limit Switch Metal Plug-In IP67 NEMA 6P

This switch solves the problem of uncontrolled motion in conveyors, mixers, and press machines. When a shaft moves beyond its design limit, it can cause wear, breakage, or safety hazards. The Rockwell limit switch provides a clear, instant signal that shuts down power, protecting both the machine and the operator. Its sealed metal housing meets IP67 and NEMA 6P standards, so water, dust, and oil cannot reach the contacts.

Benefits

• Stops equipment the moment a moving part reaches its limit, preventing costly damage.
• Sealed metal case blocks water, dust and oil, so it works in harsh plants.
• Two-circuit design lets you control power and alarm signals separately.
• Lever action returns automatically, giving fast reset without extra tools.
• Meets safety Category 1 standards, making it safe for high-risk applications.

Usages

Use this switch on belt conveyors that need a precise end-of-travel point, on mixing drums that must not over-rotate, and on hydraulic presses where the ram must stop at a set height. It also fits pneumatic cylinders, packaging machines, and any system that requires an oil-tight, plug-in safety device. The compact plug-in design lets you install it quickly on existing panels.

Key Features

• Direct opening action safety limit switch, model 802T.

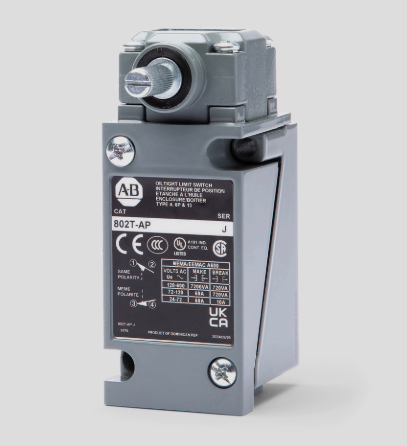

• Rugged metal plug-in construction for easy mounting.
• IP67 and NEMA 6P enclosure rating for water and dust protection.
• Lever type with spring return for snap-acting operation.
• Two independent circuits for power and alarm signals.
• Maximum torque to operate: 0.45 Nm, minimum for direct opening: 0.90 Nm.
• Contact travel up to 90 with 13 actuation angle.
• Safety classification Cat 1, suitable for Cat 3 or 4 systems.
• Lifetime rating over 2 million operations at minimum load.
• Optional mini 5-pin quick-disconnect (J1) and pre-wired cable options.
