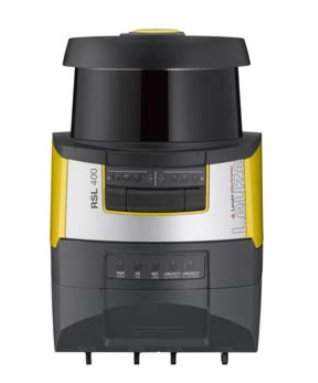

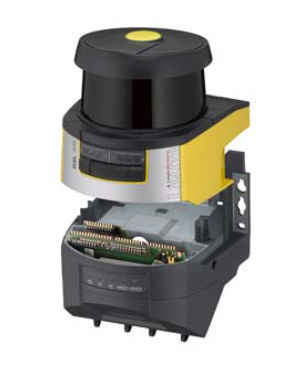

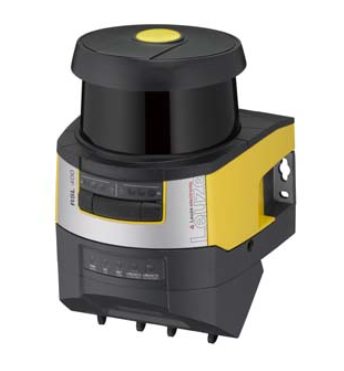

LEUZE RSL450P XL Safety Laser Scanner 20m Range PROFINET IP65

Imagine a factory floor where a single missed obstacle can stop production or cause injury. The LEUZE RSL450P XL Safety Laser Scanner 20m Range PROFINET IP65 is built to stop that from happening. It watches a wide area, detects people or objects, and tells your control system to act fast. If you need reliable safety for mobile robots or fixed machines, this scanner gives you the protection you cannot ignore.

LEUZE RSL450P XL Safety Laser Scanner 20m Range PROFINET IP65

Many plants struggle with blind spots around moving equipment. Those blind spots create risk and downtime. The problem matters because safety incidents cost money, time, and reputation. This scanner removes blind spots with a 270-degree view and a range up to 20 meters. It connects through PROFINET, follows safety standards, and lets you set up zones quickly. The result is a clear, dependable safety barrier that works in harsh industrial environments.

Benefits

• Fast reaction time keeps workers safe and machines running.
• Wide 270 scan covers large work areas with one device.
• IP65 housing protects against dust and water.
• PROFINET integration fits into existing automation networks.
• Adjustable resolution lets you match safety zones to any task.

Usages

Use the scanner on mobile robots that move pallets across a warehouse. It will stop the robot if a person steps into its path. Install it on fixed assembly lines to guard dangerous tools or cutting stations. It also works for side guarding of conveyor belts, keeping operators away from moving parts. Because it runs on 24 V DC and tolerates temperatures from 0 to 50 C, you can place it in most indoor or lightly ventilated areas without extra cooling.

Key Features

• Laser infrared source at 905 nm for reliable detection.
• Maximum range of 20 m depending on target reflectivity.
• Adjustable resolution: 30, 40, 50, 60, 70, 150 mm.
• Up to 100 field pairs or 50 quads for complex zones.
• Angular resolution of 0.1 degree for precise mapping.
• PROFINET / PROFIsafe communication with IRT-ready switch.
• Bluetooth, Ethernet, and USB interfaces for flexible setup.
• Four M12 connections for power and network links.
• Power consumption 22 W, current 900 mA max.
• Compliance with IEC 61496, IEC 61508, EN ISO 13849-1.

Specifications
