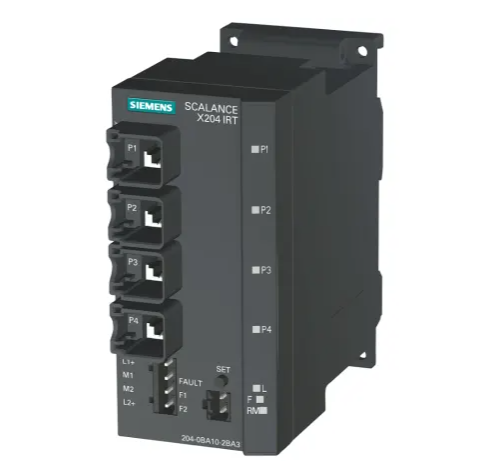

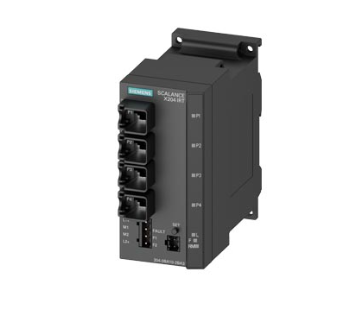

SCALANCE X204IRT Managed Industrial Ethernet Switch 4x RJ45 Ports

In many factories the network links between machines are exposed to dust, vibration and temperature swings. When a link fails, production can stop and the cost of downtime rises quickly. You need a switch that can survive harsh conditions, keep data flowing, and let you manage the network without complex setup. The SCALANCE X204IRT Managed Industrial Ethernet Switch 4x RJ45 Ports gives you a sturdy, easy-to-configure solution that protects your line and keeps everything running.

SCALANCE X204IRT Managed Industrial Ethernet Switch 4x RJ45 Ports with SCALANCE

A strong hook: keep your production line online with a switch built for industry. This device is a managed Ethernet switch that offers four RJ45 ports, 10/100 Mbit/s speed and full SCALANCE support. It is designed for PROFINET Class C and can be mounted on DIN-rail, wall or S7-300 rail. If your machines need reliable communication and you want to monitor traffic, set VLANs or use SNMP, this switch delivers the tools you need without extra hardware.

Usages

The X204IRT fits in small control cabinets for assembly lines, connects sensors in a water treatment plant, and links PLCs in a packaging line. It works well in mobile equipment such as forklifts where space is limited. The switch also serves as a bridge between legacy devices and newer Ethernet-based controllers, making upgrades smooth and cost-effective.

Benefits

• Robust metal case protects against dust and vibration, reducing unexpected failures.
• Easy web interface and CLI let you configure the network quickly, saving engineering time.
• Supports redundancy protocols (MRP, HRP, Ring, PRP) so a single cable break does not stop production.
• Low power consumption (3.4 W) lowers energy costs and heat inside cabinets.
• Wide temperature range (-40 C to +70 C) ensures operation in extreme environments.

Key Features

• 4 RJ45 Ethernet ports, 10/100 Mbit/s
• Managed switch with CLI, web GUI, SNMP v1/v2/v3, STEP 7
• PROFINET Class C, Network Load Class II compliance
• Redundancy: MRP, HRP, Ring, PRP
• IP30 protection, suitable for indoor industrial use
• DIN-rail, wall or S7-300 rail mounting options
• 24 V DC supply (18-32 V range) with 0.1 A terminal block
• Dimensions 60 125 124 mm, weight 0.78 kg
• Operating temperature -40 C to +70 C, storage -40 C to +85 C
• C-PLUG optional for easy cable management
