Imagine a control screen that never freezes, even on a noisy factory floor. The Schneider Electric 15" wide Panel PC, Pro-face PSA6000, Intel Core i5 1345UE is a rugged all-in-one computer built for industrial use. It gives you a clear touch interface and powerful processing in a thin panel. If you struggle with unreliable PCs that need constant maintenance, this unit removes downtime and simplifies your automation tasks.

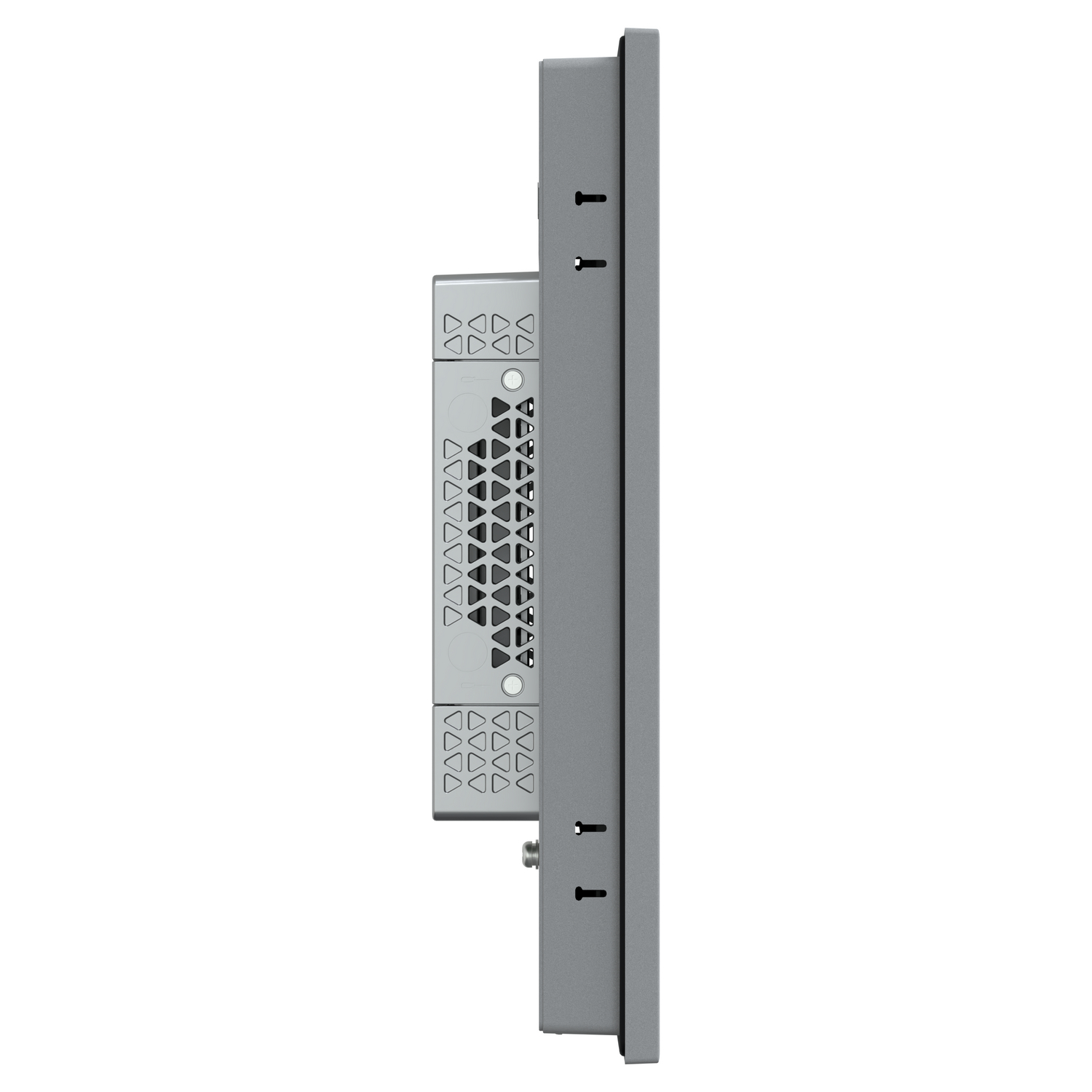

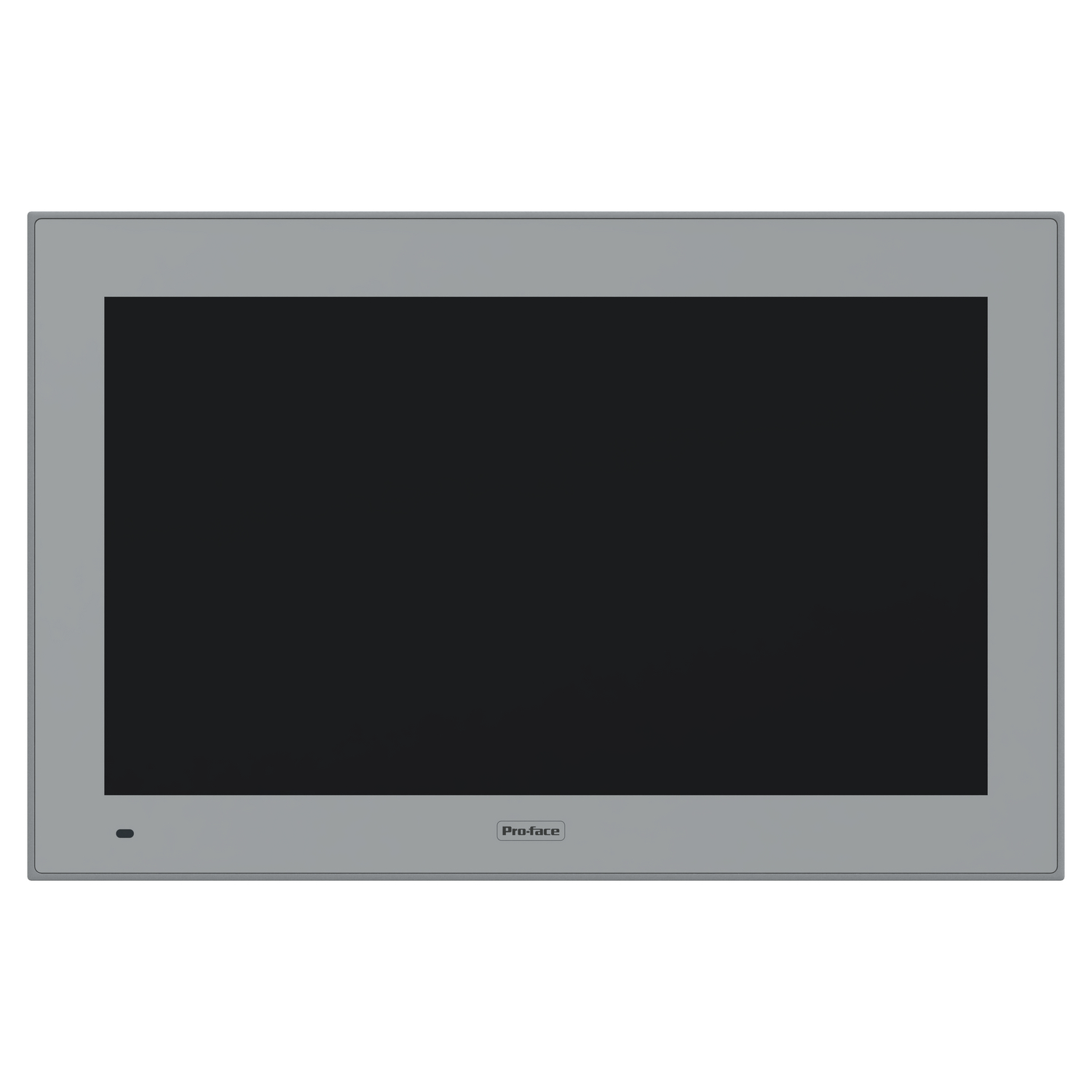

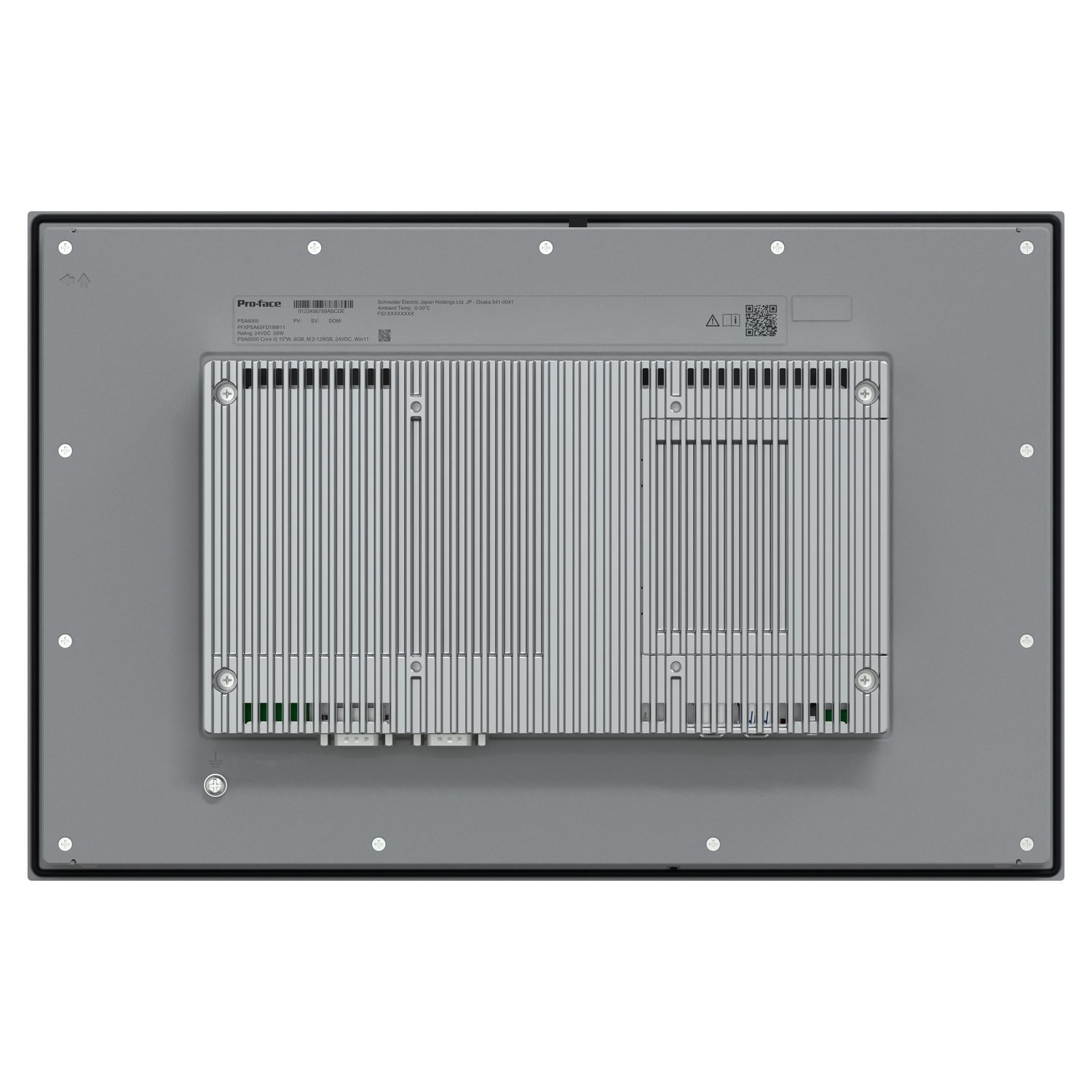

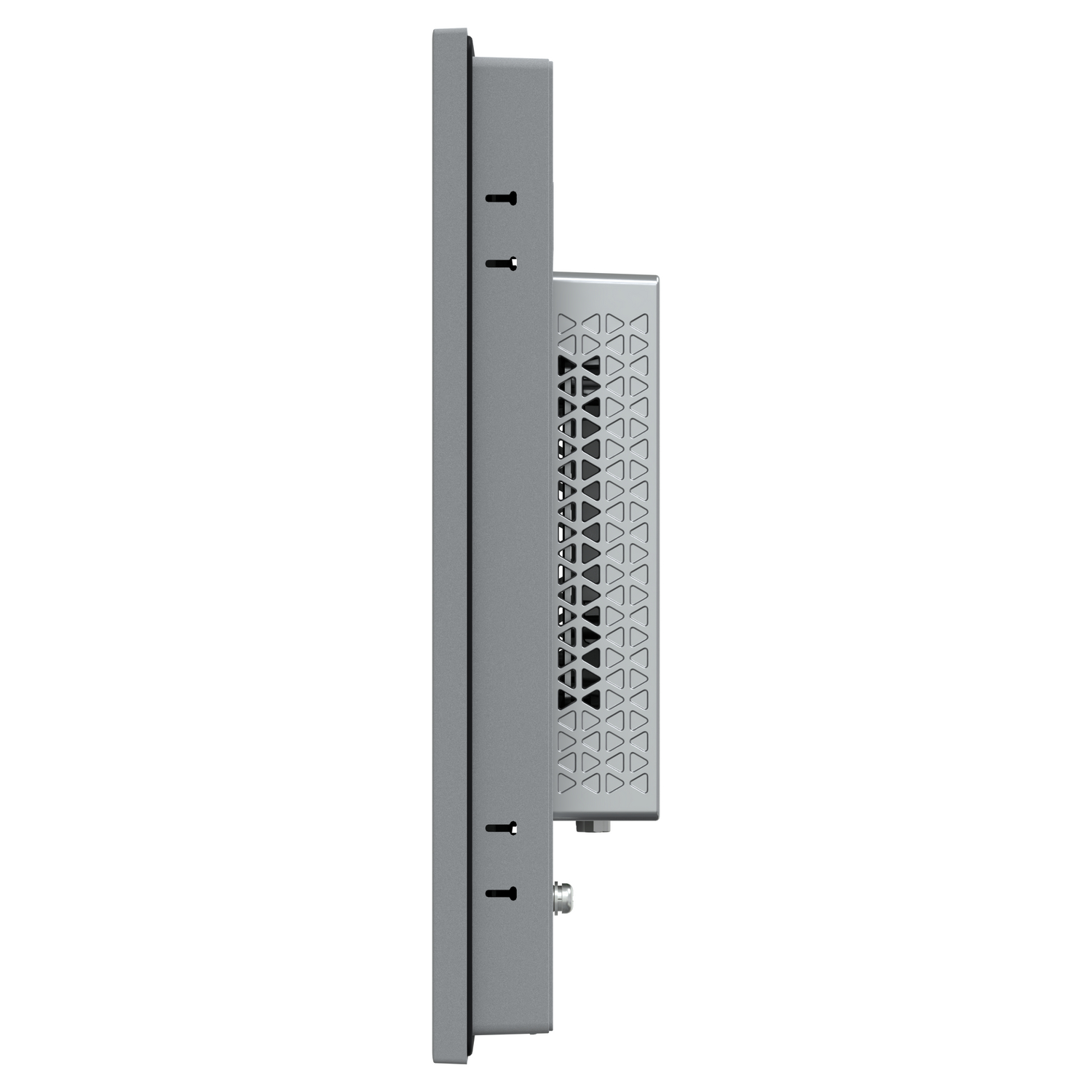

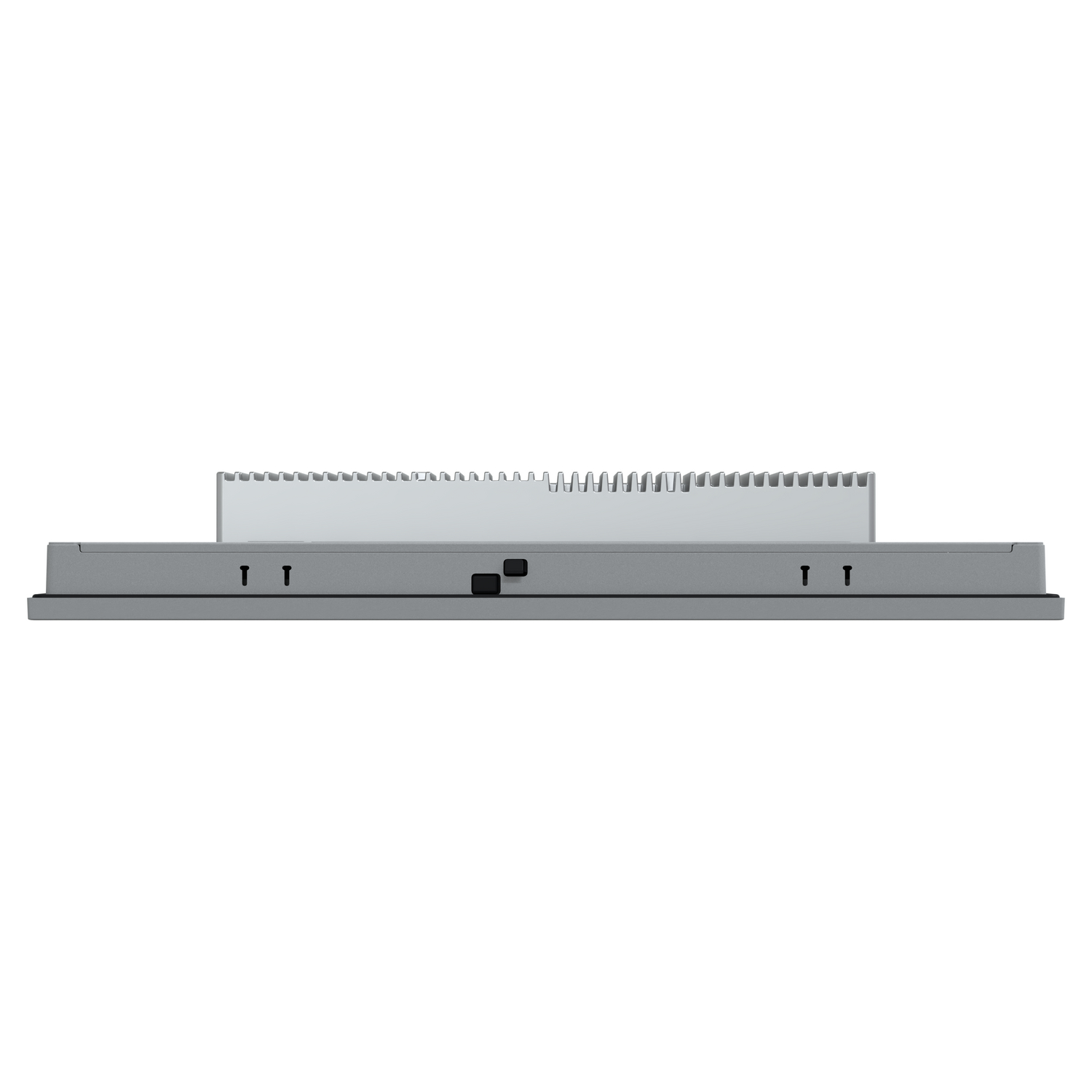

Schneider Electric 15" wide Panel PC, Pro-face PSA6000, Intel Core i5 1345UE
Many factories face the problem of screens that cannot handle dust, vibration, or temperature swings. When a display fails, production stops and costs rise. This panel PC solves the problem by offering an IP66 front cover, a sturdy metal case, and a fan-less cooling system. It lets you run Windows 11 IoT Enterprise smoothly, so your HMI software stays responsive and your line keeps moving.
Benefits
- Fast Intel i5 processor keeps graphics and data flowing without lag.
- Full HD 15-inch touch screen lets operators control machines with a single finger.
- IP66 front protection guards against water and dust in harsh environments.
- Multiple Ethernet and serial ports simplify wiring to sensors and PLCs.
- Low power consumption reduces energy costs and heat buildup.
Specifications
| Main |
|
| Range of product |
Pro-face PSA6000 |
| Device short name |
All in one Panel PC |
| Product or component type |
Panel PC |
| Operating system |
Windows 11 IoT Enterprise 2024 LTSC 64 bit |
| Processor name |
Intel Core i5 1345UE at 1400 MHz P-Core: 2 12, Intel Core i5 1345UE at 1400 MHz E-Core: 8 12 |
| Memory type |
8 GB DDR5 |
| Data storage equipment |
128 GB M.2 SSD |
| Storage capacity |
128 GB |
| Complementary |
|
| Display size |
15 inch |
| Aspect ratio |
16:9 |
| Display type |
TFT LCD screen |
| Display resolution |
1920 x 1080 pixels full HD |
| Display colour |
16 million colours |
| Touch panel |
Projected capacitive technology (PCT) |
| With touch screen |
True |
| Backlight lifespan |
70000 hours 16 million colours at 25 °C |
| Integrated connection type |

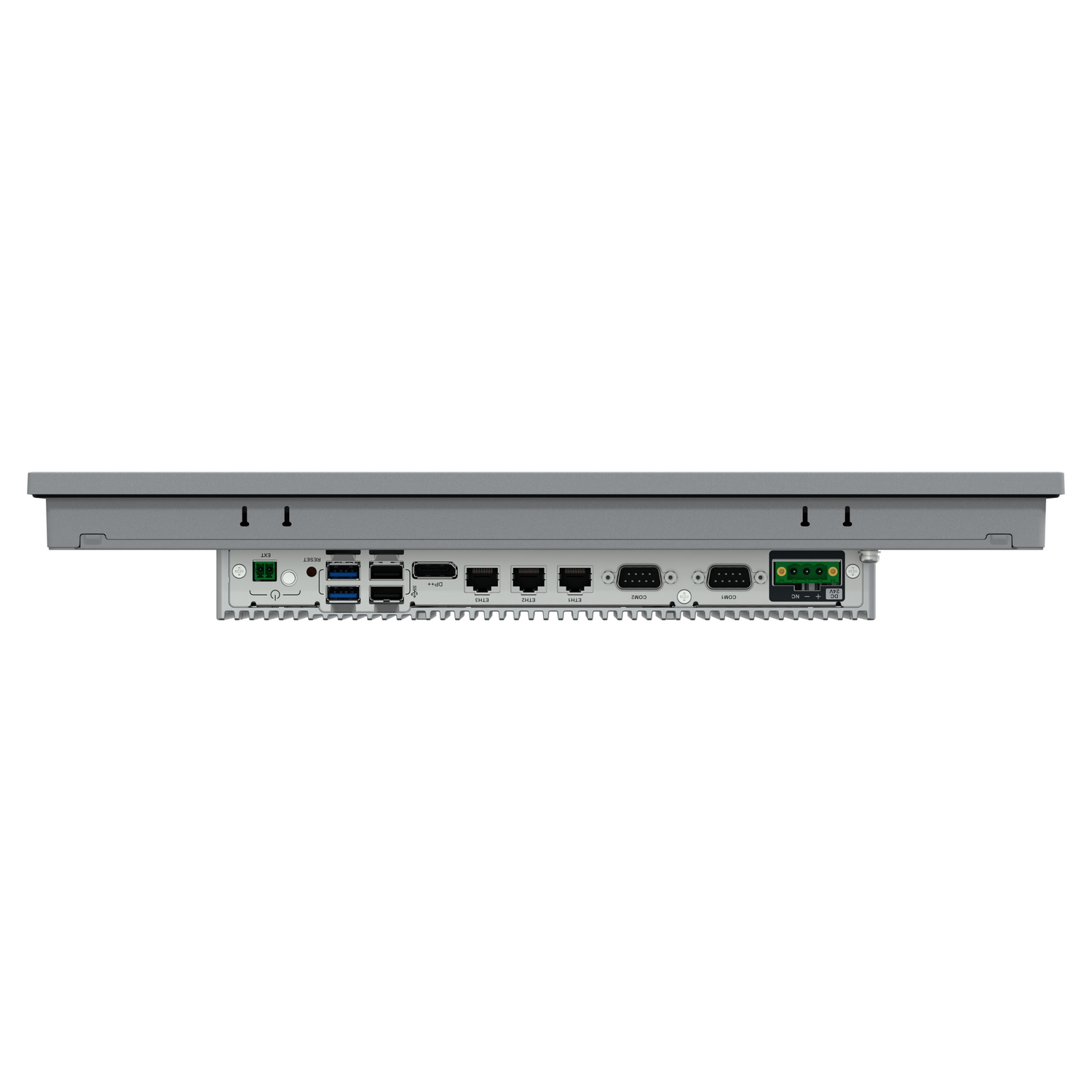

COM1 serial link with 1 plug SUB-D 9, RS232 - 2400...115200 bps on bottom non-isolated, COM2 serial link with 1 plug SUB-D 9, RS422/RS485 - 2400...115200 bps on bottom non-isolated, USB 3.1 port with 2 USB type A on bottom, USB 2.0 port with 2 USB type A on bottom, Ethernet with 3 RJ45, 10 BASE-T/100 BASE-TX/1000 BASE-T - 10/100/1000 Mbps on bottom, display port with 1 DP on bottom DP++ |
| Number of HW interfaces USB |
4 |
| Number of HW interfaces serial RS232 |
1 |
| Number of HW interfaces serial RS422 |
1 |
| Number of HW interfaces serial RS485 |
1 |
| Number of HW interfaces industrial Ethernet |
3 |
| Number of slots |
1 slot(s) for M.2 |
| [Us] rated supply voltage |
24 V DC power supply |
| DC control voltage |
24 V |
| Type of cooling |
AN (air natural) |
| Supply voltage limits |
24 V DC |
| Network type |
DC |
| Power consumption in W |
58 W |
| Power losses |
58 W |
| Inrush current |
30 A |
| Fixing mode |
By 4 M4 screws |
| Device mounting |
Panel mounting, VESA mounting |
| Cut-out dimensions |
394 (+ 1/- 0) x 250 (+ 1/- 0) mm |
| Width |
406.4 mm |
| Height |
262.4 mm |
| Depth |
58.8 mm |
| Net weight |
4.9 kg |
| Environment |
|
| Product certifications |
UL, RCM, KC, UKCA, CE |
| Standards |
UL 61010 |
| IP degree of protection |
IP66 front, IP20 rear |
| Ambient air temperature for operation |
0…50 °C (with an airflow velocity of 0.6 m/s), 0…50 °C |
| Ambient air temperature for storage |
-20…60 °C |
| Operating altitude |
0...2000 m |
| Pollution degree |
2 |
| Vibration resistance |
3.5 mm (f = 5…9 Hz) - single amplitude - conforming to IEC 61131-2 |
| Shock resistance |
147 m/s² X, Y, Z directions for 3 times |
