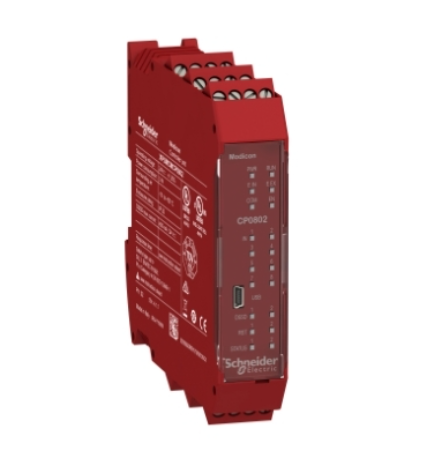

Schneider Electric Modicon MCM Safety Controller 8 Inputs 2 Outputs

Imagine a machine line that stops because a safety sensor fails, causing costly downtime and risk to workers. The Schneider Electric Modicon MCM Safety Controller 8 Inputs 2 Outputs is a compact safety CPU that watches your plant and reacts in milliseconds. It is built for machines that need reliable emergency stop, guard monitoring, and safe restart. If you have missed safety compliance or want to avoid production loss, this controller gives you the protection you need.

Schneider Electric Modicon MCM Safety Controller 8 Inputs 2 Outputs

Many factories struggle with complex wiring and slow response times when a safety event occurs. A delayed reaction can damage equipment, hurt operators, and break legal standards. This controller solves the problem by offering eight digital inputs and two safety outputs in a single module, so you replace many separate devices with one reliable unit. It meets Category 4, PL e, and SIL CL 3 requirements, giving you proof of compliance and peace of mind.

Usages of Schneider

The controller fits right into a standard 35 mm DIN rail and can be used in packaging lines, robotic cells, and conveyor systems. It monitors emergency stop buttons, safety light curtains, two-hand devices, and safety mats, then drives contactors or drives through its two OSSD outputs. You can also connect it to test equipment for line diagnostics or to a PLC for coordinated control. Its backplane bus and USB port let you expand up to 14 modules for larger plants.

Benefits

• Fast reaction in less than a millisecond reduces risk of injury.
• All-in-one design cuts wiring costs and saves space.
• Meets high safety standards, so you pass audits easily.
• Expandable I/O lets the system grow with your plant.
• Built-in diagnostics alert you before a fault becomes a problem.

Key Features

• Eight PNP digital inputs (24 V, 400 mA).
• Two safety OSSD outputs for contactor or drive connection.
• Two start/restart/EDM inputs for safe restart control.
• Four test line control outputs for diagnostics.
• Configurable diagnostics with two diagnostic channels.
• Category 4, PL e, SIL CL 3 safety level compliance.
• Backplane expansion bus supports up to 14 modules.
• USB 2.0 port for easy programming and data transfer.
• Optional SD-card storage for log files.

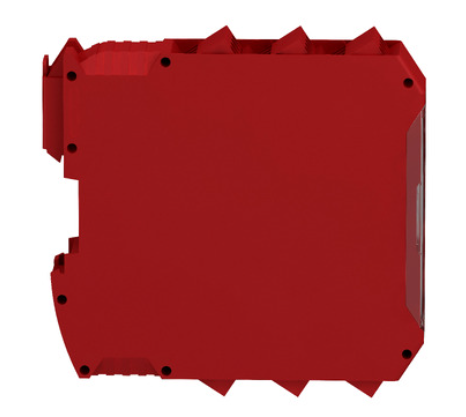

• Compact size (22.5 mm 99 mm 114.5 mm) and light weight (0.25 kg).

Specifications
