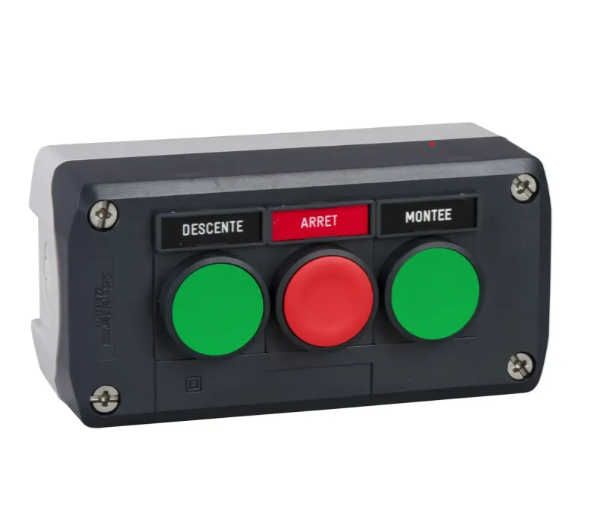

Schneider Electric XALD321 Harmony Control Station Push Button Panel

Tired of control panels that are hard to read and break easily? The Schneider Electric XALD321 Harmony Control Station Push Button Panel gives you a clear, durable interface for industrial machines. It lets operators start, stop, and lower equipment with three easy buttons. If you have been fighting confusing panels or frequent replacements, this unit solves that problem. It also fits standard XB5 & 22 mm control units, so you do not need extra adapters.

Schneider Electric XALD321 Harmony Control Station Push Button Panel

The main issue on the shop floor is a lack of reliable, easy-to-use control stations. When a button fails or the display is unclear, production stops and safety can be at risk. This panel removes that risk by offering three clearly colored push-buttons that work with 10 million cycles and protect against short circuits. With IP66-IP69K protection it stays safe in dusty or wet environments, so you keep your line running. The panel also supports both AC and DC control voltages, giving you flexibility when retrofitting older equipment.

Benefits

• Fast visual cues - green, red and green buttons tell you exactly what action is happening, so you never guess the status.
• Durable design - polycarbonate housing and 10 million cycle rating reduce replacement costs, saving you time and money.
• Safe operation - built-in 10 A fuse and slow-break contacts protect equipment and users, preventing costly damage.
• All-weather protection - IP66 to IP69K rating keeps the panel working in harsh factories, even in washdown areas.
• Easy wiring - screw clamp terminals accept a wide range of wire sizes for quick installation, no special tools required.

Usages

Use the XALD321 on conveyor systems to start the motor, stop it in an emergency, and lower the belt for maintenance. It fits perfectly in water treatment plants where operators need a waterproof button for pump start, stop and drain functions. In packaging lines it can control the lift-table, providing a clear up, down and stop command at each workstation. The panel can also be mounted on mobile equipment like forklifts, giving operators instant control wherever they work.

Key Features

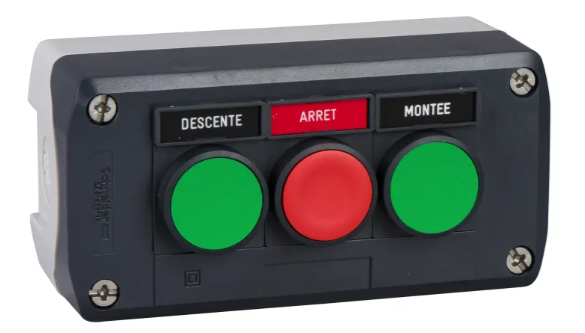

• Three flush push-buttons: green MONTEE (NO), red ARRET (NC), green DESCENTE (NO) for clear visual feedback.
• Operating voltage 120-600 V AC or 125-600 V DC, compatible with most industrial drives.
• Cable entry with two 14 mm knock-outs and two Pg 13.5 / ISO M20 knock-outs, allowing neat cable management.
• Mechanical durability of 10 million cycles meets demanding OEM specifications.
• Silver-alloy contacts give reliable conductivity and reduce contact resistance over time.
• 10 A cartridge fuse provides short-circuit protection, easy to replace.
• Rated insulation voltage 600 V and impulse voltage 6 kV for safety, meets global safety standards.
• IK03 impact rating and vibration resistance up to 5 gn, protects against accidental hits.
• Compliant with IEC 60947-5-1, UL 508 and CSA C22.2 standards, ensuring reliable performance worldwide.
