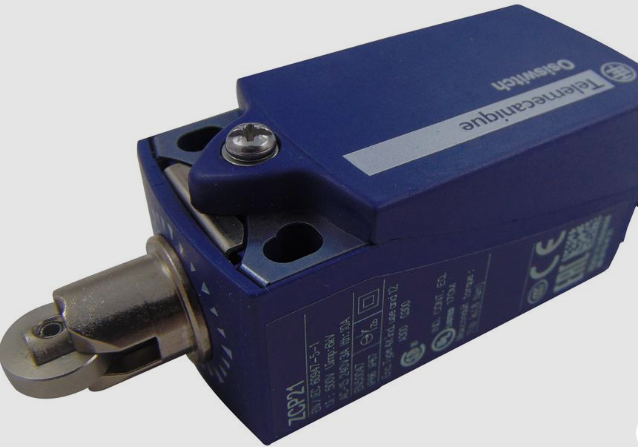

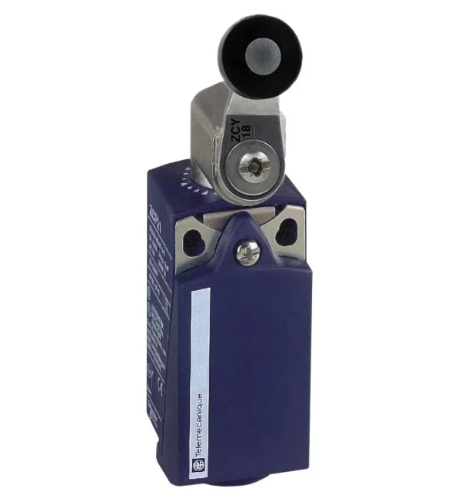

Schneider Electric XCKP2118P16 Compact Limit Switch Rotary Head IP67

When a machine stops at the wrong point, production slows and costly repairs can follow. Many factories struggle with switches that wear out quickly or cannot survive dust, water or vibration. The result is unexpected downtime and lost profit. The Schneider Electric XCKP2118P16 Compact Limit Switch Rotary Head IP67 gives you a sturdy, waterproof solution that keeps your equipment running smoothly and protects your investment.

Schneider Electric XCKP2118P16 Compact Limit Switch Rotary Head IP67 with Schneider

Never miss a stop again. This compact limit switch from Schneider is built for rotary motion and offers a 30 cam actuation. It is perfect for machines that need a clear on/off signal at a precise position. If you have been dealing with unreliable contacts or switches that cannot handle harsh environments, this product solves the problem with a sealed IP67 housing and a robust spring-return lever.

Usages

The rotary head design fits well in conveyor belt end stops, packaging line guides, and elevator door controls. It also works in HVAC damper actuators, robotic arm limits, and any equipment that requires a reliable position sensor in a dusty or wet area. Because it can be mounted by the body and accepts a lateral approach, installation is quick on panels, enclosures or machine frames.

Benefits

• Reduces unexpected downtime by delivering a fast, snap-action response.
• Protects your machine from water and dust with an IP67 rating.
• Handles up to 10 million mechanical cycles for long-term use.

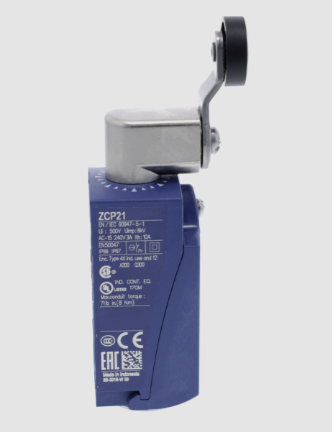

• Easy wiring thanks to screw-clamp terminals and a single cable entry.
• Meets safety standards with IK04 impact protection and short-circuit fuse.

Key Features

• Compact fixed body with a rotary head for 30 cam actuation.
• Two poles: 1 normally closed and 1 normally open contact.

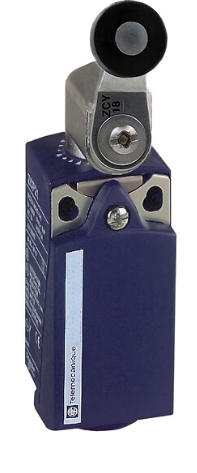

• Spring-return roller lever made of thermoplastic for smooth reset.
• Rated insulation voltage 300 V (UL/CSA) or 500 V (IEC).
• Impulse withstand rating of 6 kV for surge protection.
• 10 A cartridge fuse gG for short-circuit safety.
• Mechanical durability of 10 million cycles.
• Electrical durability of 5 million cycles at DC-13 ratings.
• Dimensions 31 65 30 mm and weight only 0.135 kg.
• Operating temperature from -25 C to 70 C.
• Shock resistance 50 g (11 ms) and vibration resistance 25 g (10-500 Hz).
• Green Premium product, REACh and RoHS compliant.
