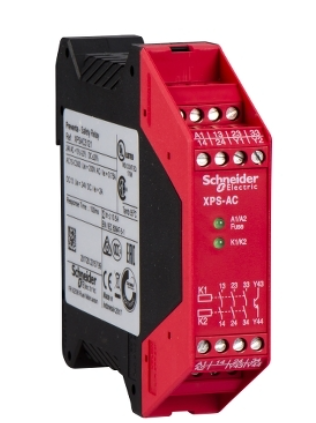

Schneider Electric XPSAC Emergency Stop Safety Relay 24V AC DC Module

Stop guessing when a machine needs to shut down. The Schneider Electric XPSAC Emergency Stop Safety Relay 24V AC DC Module gives you a reliable way to cut power instantly. It is built for emergency stop buttons and switch monitoring in industrial plants. If a safety button fails or a wiring error occurs, you risk damage, injury, and costly downtime. This relay removes that risk by delivering a fast, certified stop signal every time.

Schneider Electric XPSAC Emergency Stop Safety Relay 24V AC DC Module

Machines that run unattended need a fail-safe way to stop. Without a proper emergency stop, a single fault can cause a chain reaction of failures. The problem matters because safety regulations require proven stop functions and any breach can lead to fines or accidents. This relay meets PL e/Cat 4 and SIL 3 standards, so you get a tested, instant response that keeps workers safe and equipment protected. It works with both 24 V AC and DC supplies, fitting most control panels without extra wiring.

Benefits

• Instant power cut reduces injury risk.
• Meets high safety standards for compliance.
• Works with AC and DC, simplifying installation.
• LED indicators show status at a glance.
• Compact DIN-rail design saves panel space.

Usages

Use this module in any machine that requires an emergency stop, such as conveyor belts, robotic cells, and packaging lines. It also fits lift control panels, CNC machines, and palletizing systems where a quick shutdown is critical. The relay can monitor safety switches on doors or guards, sending a stop command when a guard opens. Because it accepts both 24 V AC and DC, you can place it in older plants or new installations without changing the power supply.

Key Features

• PL e/Cat 4 (ISO 13849-1) and SIL 3 (IEC 62061) compliance.
• 24 V AC (-20+10 %) and 24 V DC (-20+20 %) supply range.
• Instantaneous relay opening with three NO contacts.
• One solid-state auxiliary output for extra signaling.
• Captive screw clamp terminals for 0.14 mm to 2.5 mm wires.
• Maximum response time 100 ms on input open.
• Two status LEDs for local indication.
• IP20 protection on terminals, IP40 on enclosure.
• Operating temperature -10 C to 55 C, storage -25 C to 85 C.
• Breaking capacity 180 VA hold, 1800 VA inrush (AC) and 1.5 A at 24 V (DC).
• Low power consumption: 40 mA (DC) or 90 mA (AC).
• Mounts on 35 mm symmetrical DIN rail for easy panel integration.
