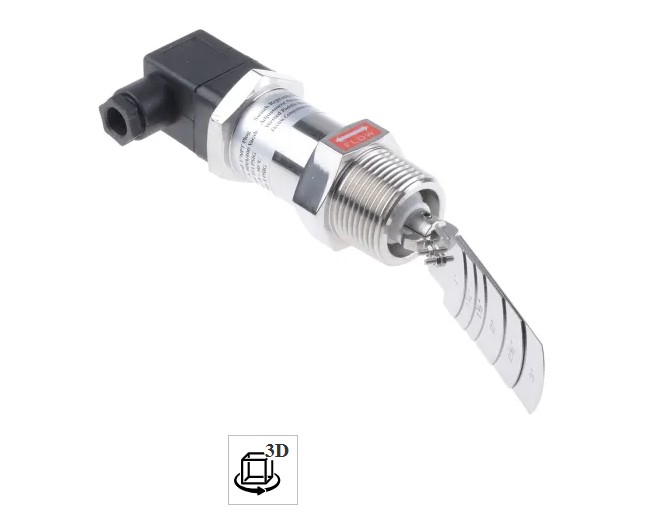

Sensata Cynergy3 Paddle Flow Switch/Sensor, 230V, 20 Bar - LFS Series - LFS-03
Use this paddle flow switch/

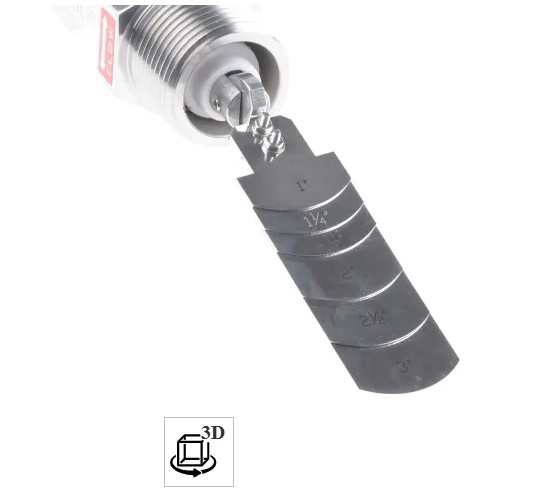

Sensor from Sensata Cynergy3 to detect the force of liquid motion in a pipe. It's suitable for accurately monitoring both continuous and intermittent flow. The switch has a stainless steel paddle, which is durable and resistant to corrosion. A screw-on sealed lid ensures your wiring is well-protected within the housing for enhanced electrical safety. A switch like this one is frequently used in water irrigation pipes and safety sprinkler systems in industrial and commercial environments.
Features & Benefits
- IP65 (ingress protection) rating means it's protected against dust and low-pressure water jets
- Aluminium alloy housing is wear and corrosion-resistant for long-lasting performance
- Wide operating temperature range of -30°C to +75°C for use in demanding environments
What pressure range can this switch handle?
This robust paddle switch is capable of reliable operation in pressures of up to 20 bar, so it's a good choice for high-pressure applications.
Where on the pipe should I install this paddle switch?
The best place to install this paddle switch is on a straight section of pipe where there are no obstacles that might cause fluctuations in flow rate. You should ensure there's a good length of straight pipe both in front of and behind the switch.
Specifications
| Brand |
Sensata / Cynergy3 |
| Device Type |
Paddle |
| Series |
LFS |
| Minimum Flow Rate |
15.2 L/min, 19 L/min |
| Maximum Flow Rate |
60.6 L/min, 83.3 L/min |
| Supply Voltage |
230 V |
| Current Rating |
1 A |
| Pipe Diameter Range |
1 → 3 in |
| Connection Type |
1 NPT |
| Maximum Pressure |
20 bar |
| Material |
Aluminium Alloy |
| Minimum Operating Temperature |
-30°C |
| Maximum Operating Temperature |
+75°C |
