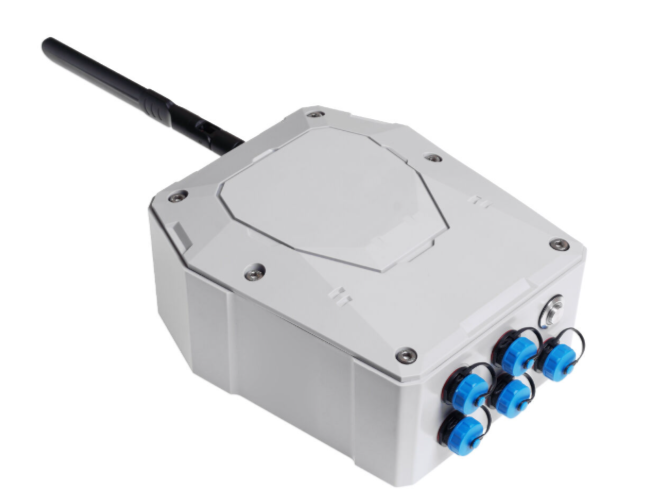

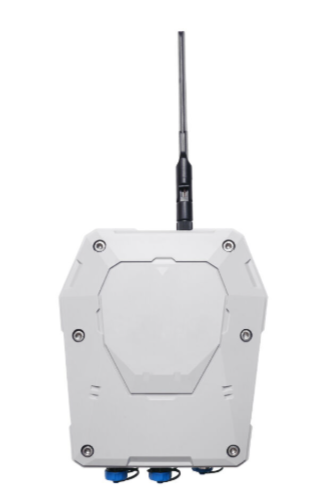

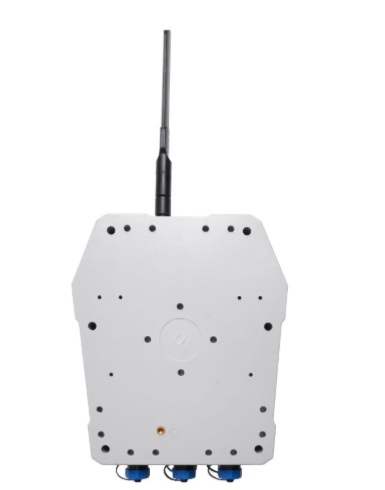

SenseCAP 4G Sensor Hub Data Logger with Battery IP66 GPS RS485

Imagine you could watch every sensor reading from a remote farm, a wind farm, or a city street without climbing a ladder or running a cable. The SenseCAP 4G Sensor Hub Data Logger with Battery IP66 GPS RS485 does exactly that. It collects data from up to 32 Modbus-RTU sensors, stores it locally, and pushes it to the cloud over 4G, 3G or 2G. If you have ever lost data because a connection failed or a power outage hit your site, this hub gives you the reliability you need.

SenseCAP 4G Sensor Hub Data Logger with Battery IP66 GPS RS485

Many outdoor monitoring projects suffer from weak signals, water damage, and short battery life. Those problems cause missed alerts, extra maintenance trips, and higher costs. This hub solves the issue by offering a waterproof IP66 case, an internal 7.4 V 6000 mAh battery that lasts more than two weeks, and built-in GPS for location tracking. It also supports HTTP, MQTT and Websocket so your data reaches any cloud platform you choose. In short, you get a rugged, self-powered, always-connected logger that keeps your data safe.

Usages of SenseCAP

The hub works well in agriculture to monitor soil moisture, temperature and fertilizer levels. It fits wind and solar farms for tracking turbine vibration, power output and weather data. City planners use it for air quality, noise and traffic sensors. It also serves water utilities to log pressure, flow and leak detection sensors. Anywhere you need reliable, remote data collection, SenseCAP can be placed and left to work.

Benefits

• Less field visits because the unit runs on solar or wall power and stores data offline.
• Instant alerts via cloud protocols keep you informed of critical changes.
• Waterproof design survives rain, dust and harsh sunlight without failing.
• GPS location helps you find the device quickly in large installations.
• Supports up to 32 sensors, so you can expand your system without buying new hardware.

Key Features

• Modbus-RTU RS485 communication for reliable sensor connections.
• Cellular support for 4G, 3G and 2G networks.
• HTTP, MQTT and Websocket cloud protocols.
• Internal 7.4 V 6000 mAh Li-ion battery with >2-week life.

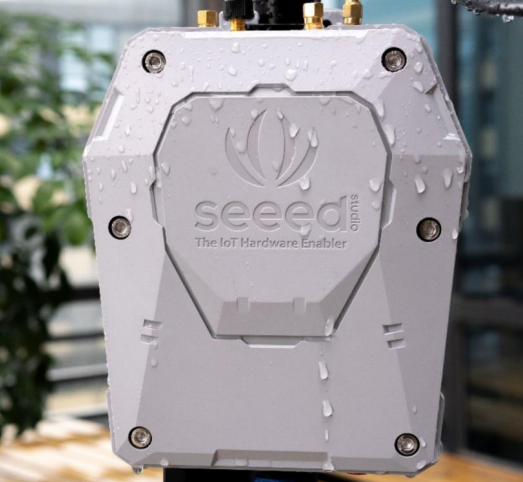

• IP66 rating protects against water and UV exposure.
• Integrated GPS (disabled by default) for precise location.
• Configurable upload interval from 1 to 1,440 minutes.
• Over-the-air firmware updates keep the device current.

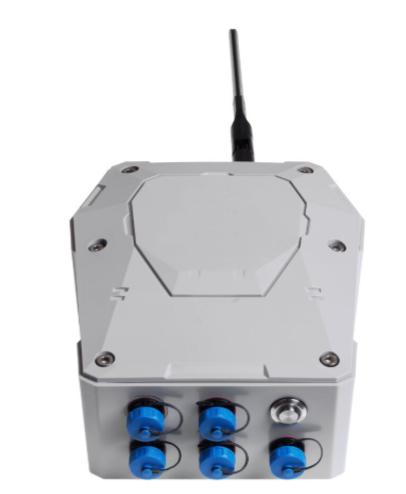

• Four RS-485 ports and a USB-to-TTL port for flexible wiring.
• Operating temperature from -20 C to +60 C.

Specifications

Category	Feature	Specification
Communication	Sensor Protocol	Modbus-RTU RS485
	Cellular Support	4G, 3G, 2G
	Cloud Protocols	HTTP, MQTT, Websocket
Capacity	Max Sensors	Up to 32 sensors
	Modbus Addresses	128 to 254 (Decimal)
	Baud Rate	9600 bps
	Sensor Power	5V and 12V compatible
Power	Supply Options	DC Wall Power or Solar Power
	Internal Battery	7.4V, 6000mAh (6Ah) Li-ion
	Battery Life	>2 weeks (measuring 7 parameters)
Data Management	Offline Caching	10,000 measurements
	Upload Interval	1 to 1,440 minutes (configurable)
	Remote Updates	Over-the-Air (OTA) supported
Physical	Operating Temp	to
	Protection Rating	IP66 (Waterproof, UV resistant)
	GPS	Integrated (Disabled by default)
Interface	Ports 1–4	RS-485 Sensor Channels
	Port B6	Power & Serial (USB-to-TTL)
	Connector Pinout	1: 12V, 2: 5V, 3: RS485 A, 4: RS485 B, 5: GND
