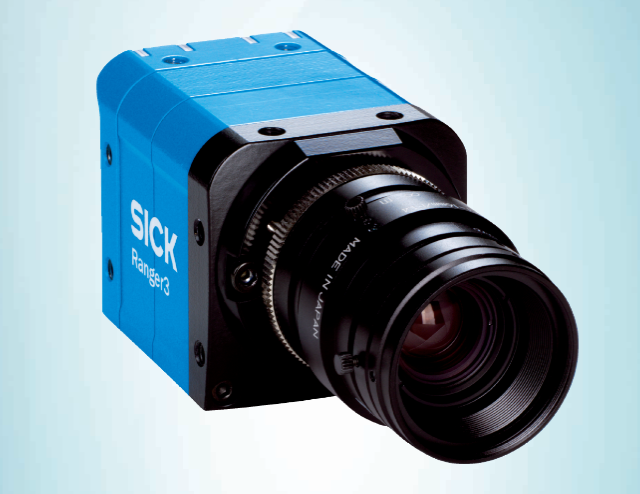

SICK Ranger3 V3DR3-80CT31111 3D Machine Vision Camera

Tired of missing defects on fast moving lines? The SICK Ranger3 V3DR3-80CT31111 3D Machine Vision Camera gives you fast, accurate 3-D data so you can catch every error before it reaches the customer. This camera is built for industrial inspection, robot guidance and quality control. If your current sensor is slow, blurry or cannot measure depth, you lose time and money. With this camera you get reliable measurements in real time, keeping your line running smoothly.

SICK Ranger3 V3DR3-80CT31111 3D Machine Vision Camera

The main problem is that many vision systems cannot combine high speed, high resolution and true 3-D data in one device. When a system cannot see depth, it cannot detect mis-placement, volume errors or surface defects. The SICK Ranger3 camera solves this by using laser triangulation and a global-shutter CMOS sensor to deliver up to 69,000 profiles per second with 16-bit height accuracy. The result is a clear, fast view of every part, even on moving belts.

Benefits

• Capture 3-D shape at up to 69,000 profiles per second - your line stays fast.
• Global-shutter sensor eliminates motion blur - measurements stay sharp.
• HDR and linear exposure modes adapt to bright or dark scenes - you get consistent data.
• Gigabit Ethernet stream delivers up to 2.5 Gbit/s - integration is simple and reliable.
• Flexible lens mount lets you choose the field of view that fits your part size.

Usages

Use the camera for bin picking robots that need exact part location, for conveyor belt inspection that measures size, volume and surface defects, for palletizing stations that verify correct orientation, and for quality stations that check weld seams or paint coverage. It also works in pharmaceutical packaging to detect missing caps, and in automotive assembly to measure panel gaps. Anywhere you need fast, accurate 3-D data, this camera fits.

Key Features

• 3D laser triangulation with 2D line scanning and color capture.
• Sensor resolution 2560 832 pixels, 5,120 px color/gray line resolution.
• Pixel size 6 m 6 m (3D) and 3 m 6.4 m (high-res).
• Scan rate 69 k profiles/s (AOI) and 7 k profiles/s (full frame).
• HDR and linear exposure modes for challenging lighting.
• Global-shutter CMOS sensor with ROCC technology.
• C-mount lens option, interchangeable to set field of view.
• Gigabit Ethernet (M12, 8-pin, X-coded) with UDP/IP GigE Vision.
• 4 digital inputs (10-28.8 V) and 2 TTL outputs for I/O signaling.
• IP20 housing, upgradeable to IP65/IP67 with ProFlex hood, aluminum body.
