SICK Safety Laser Scanner 275° PROFINET SIL2 IP65 64m Range

When a machine works close to people, a missed obstacle can cause injury or costly downtime. Operators need a reliable way to see people, tools or carts before a collision happens. The SICK Safety Laser Scanner 275 PROFINET SIL2 IP65 64m Range watches a wide area, sends fast alerts and stops the machine safely, so you keep production running and protect your staff.

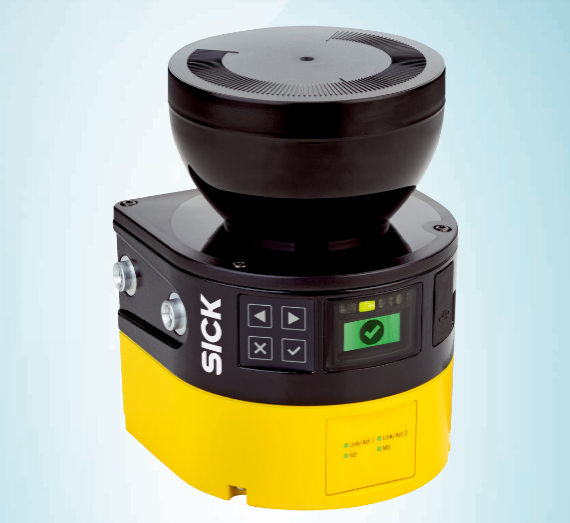

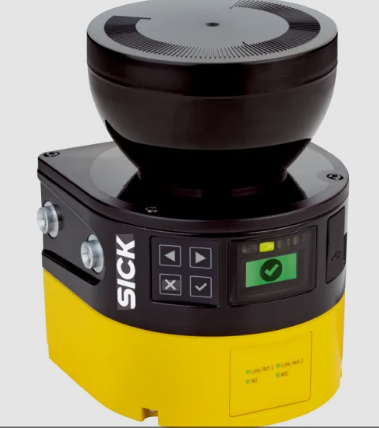

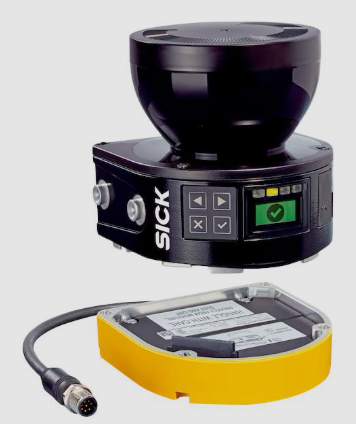

SICK Safety Laser Scanner 275 PROFINET SIL2 IP65 64m Range with SICK

Imagine a sensor that covers almost a full circle, sees objects up to 64 m away and talks to your PLC over PROFINET. That is what this SICK safety laser scanner does. It is built for factories that need SIL 2 compliance and a rugged IP65 housing. If you worry about people walking into a robots path, this scanner gives you a clear safety barrier that you can trust.

Usages

The device fits into robot cells where a wide field of view is required. It works on conveyor belts that move pallets close to automated arms. It can protect collaborative workstations where humans and machines share space. It also monitors loading zones in warehouses, ensuring forklifts stop before entering a dangerous area.

Benefits

• Fast 115 ms response keeps your line moving without delay.
• 275 scan angle reduces blind spots and simplifies layout.
• IP65 housing protects against dust and water in harsh plants.
• SIL 2 certification meets strict safety standards, lowering risk.
• PROFINET connection integrates easily with existing control systems.

Key Features

• Warning field range up to 64 m for early detection.
• Protective field range 9 m for safe stopping distance.
• Collision protection field 19 m on reference target.
• Angular resolution 0.1 for precise object edges.
• Configurable distance resolution from 30 mm to 200 mm.
• Cycle time selectable between 1 ms and 16 ms.
• Four safety outputs via PROFINET for flexible wiring.
• 24 V DC supply, 7.2 W typical power consumption.
• Aluminum housing with polycarbonate optics cover for durability.
• Operating temperature -10 C to +50 C for most industrial sites.
• Class 1 laser safety rating, safe for human exposure.
• 20-year mission time ensures long-term reliability.
