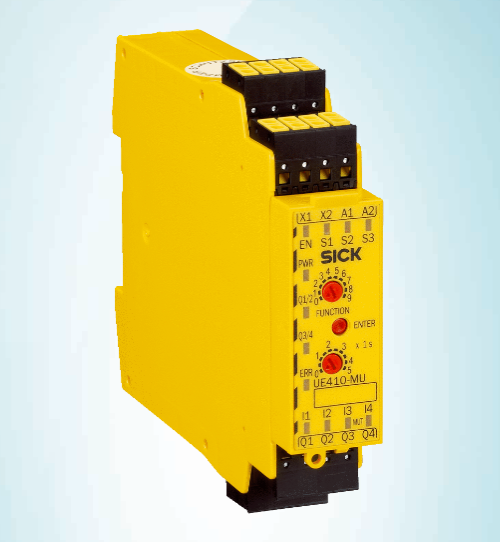

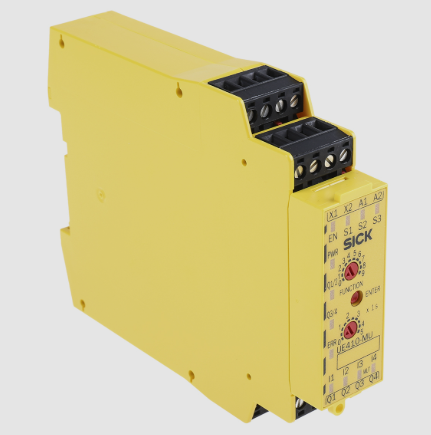

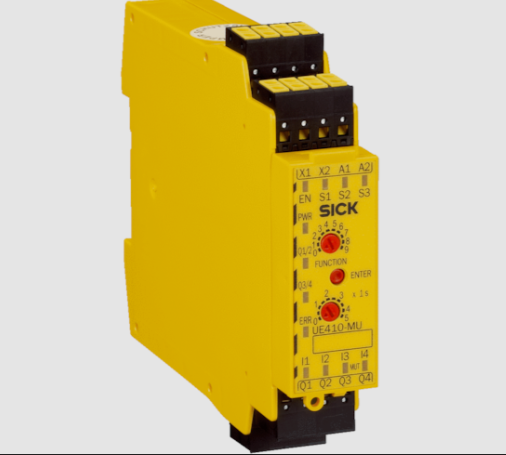

Sick UE410-MU3T5 Safety Controller Module 24V DC SIL3

Imagine a machine that stops instantly when a safety sensor trips, protecting both workers and equipment. The Sick UE410-MU3T5 Safety Controller Module 24V DC SIL3 is a compact safety controller that makes this possible. It is built for machines that need reliable emergency stop, two-hand control, or safety gate monitoring. If you have faced unexpected downtime because a safety circuit failed, this module gives you the confidence that the safety function will work every time.

Sick UE410-MU3T5 Safety Controller Module 24V DC SIL3

Machines that handle heavy loads or fast moving parts often struggle with meeting safety standards while keeping production fast. Missing or unreliable safety logic can lead to costly accidents and regulatory fines. The UE410-MU3T5 controller solves this by delivering SIL3 level protection in a small 24 V DC package. It monitors inputs, controls outputs, and provides muting and reset functions without adding complex wiring. The result is a clear, dependable safety solution that fits into tight control cabinets.

Benefits

• Fast response time keeps the machine safe within milliseconds.
• Low power consumption (3 W) reduces energy costs.
• Compact size saves space in crowded control panels.
• Built-in short-circuit protection prevents damage to wiring.
• Muting function lets you pause safety monitoring during maintenance without stopping the whole line.

Usages

Use this controller for emergency stop pushbuttons on assembly lines, for safety gates on conveyor belts, and for two-hand control stations on press machines. It also works with opto-electronic safety shields, non-contact safety switches, and testable inductive sensors. The module can be mounted in any machine that requires Category 4 safety according to EN ISO 13849, making it ideal for automotive, packaging, and material handling equipment.

Key Features

• Supply voltage 24 V DC (19.2 V 30 V).
• Power consumption only 3 W.
• Two dual-channel or four single-channel inputs.
• Input voltage range 13 V 30 V (HIGH) and -5 V 5 V (LOW).
• Output type PNP semiconductor with short-circuit protection.
• Output voltage 18 V 30 V, current 2 A.
• Response time 13 ms 79 ms.
• IP20 terminals, IP40 housing for protection.
• Operating temperature -25 C 55 C.
• SIL3 safety integrity level (IEC 61508) and Category 4 (EN ISO 13849).
• Logical functions: OR, AND, BYPASS, Muting.
• Two reset/restart inputs and two external device monitoring inputs.
