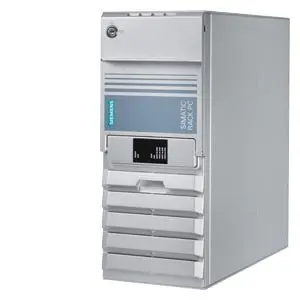

SIEMENS Rack PC SIMATIC IPC547G Industrial PC

Imagine a factory line that never stops because its control computer crashes. The SIEMENS Rack PC SIMATIC IPC547G Industrial PC is built for that exact need. It is a rugged, 4-U rack-mount computer that runs your automation, HMI, and data-logging software without fail. If you have experienced costly downtime from overheating or weak hardware, this PC solves the problem with industrial-grade cooling, redundant power and high-speed storage. You need a machine that can work 24/7 in a harsh environment, and this product delivers.

SIEMENS Rack PC SIMATIC IPC547G Industrial PC

Many plants struggle with computers that cannot keep up with complex automation and visualization tasks. When the system slows down, operators lose confidence and production slows. The SIEMENS Rack PC addresses this by offering a 6th-generation Intel Core i processor with Turbo Boost, DDR4 memory and PCIe 3.0 slots. The high-performance chipset and dual-channel memory keep data flowing fast, while built-in Intel HD Graphics handles multiple monitors. As a result you get reliable, fast response even during peak loads, so your line stays productive and your team can focus on output, not troubleshooting.

Benefits

• Runs continuously for 24 hours with high MTBF and variable-speed fan, reducing unexpected stops.
• Redundant power supply and hot-swap drive bays keep the system alive during component failure.
• RAID 1 and RAID 5 options protect your data and allow fast recovery after a disk error.
• Integrated Intel Active Management Technology lets you service the PC remotely, saving travel time.
• Supports up to five monitors, so operators can view all data on one screen layout.

Usages

The IPC547G fits into standard 19-inch control cabinets, making it ideal for assembly lines, packaging machines, and CNC equipment. Use it as a central HMI server that drives multiple touch panels, or as a data-logger that records sensor values in real time. Its Ethernet ports and optional redundant power let you build a reliable network for SCADA systems. The same hardware can be mounted on telescopic rails to serve as an industrial tower PC in a lab or test bench. In any case the computer stays cool and quiet even in dusty, high-temperature factories.

Key Features

• Intel Xeon E3-1275 v5 or Core i7-6700 processor with Turbo Boost.
• Up to 64 GB DDR4-2133 SDRAM in four DIMM slots.
•


  Specifications

  Category	Specification	Details
  Design	Form Factor	19 inch rack, 4 U
  	Installation	Horizontal and vertical supported
  	Protection Rating	IP30 front, IP20 rear
  	Dust Protection	Filter class G2
  Chipset	Model	Intel C236 (GL82C236 PCH)
  Processor Options	Intel Xeon E3-1275 v5	4C, 8T, 3.6 - 4.0 GHz, 8 MB cache
  	Intel Core i7-6700	4C, 8T, 3.4 - 4.0 GHz, 8 MB cache
  	Intel Core i5-6500	4C, 4T, 3.2 - 3.6 GHz, 6 MB cache
  Memory	Type	DDR4-2133 SDRAM
  	Capacity	Up to 64 GB (4 DIMM slots)
  Expansion Slots	Total Slots	7 slots
  	Configuration	2× PCI, 2× PCIe x4 Gen 3, 1× PCIe x8 Gen 3, 2× PCIe x16 Gen 3
  Storage	HDD	SATA up to 2 TB
  	SSD	SATA 240 GB or 480 GB
  	RAID	RAID 1 supported (HDD/SSD)
  	Drive Bays	Optional hot swap
  Optical Drive	Type	DVD±R/RW slimline
  Graphics	Integrated	Intel HD Graphics 530 or P530
  	Resolution (DP)	Up to 4096 × 2304 @ 60 Hz
  	Resolution (DVI-D)	Up to 1920 × 1200
  Network	Interface	2 × Ethernet RJ45, 10/100/1000 Mbps
  	Features	Teaming capable
  Ports	USB	6 × USB 3.0, 5 × USB 2.0
  	Serial/Audio	1 × COM port; Audio line in, mic in, line out
  	Display	2 × DisplayPort, 1 × DVI-D
  Operating System	Options	Windows 7 Ultimate 64-bit, Server 2012 R2, 10 IoT Enterprise LTSB
  Monitoring	System Checks	Watchdog, Temperature, Fan, SMART HDD, RAID status
  Power Supply	Options	Optional redundant power supply
  Environmental	Operating Temp	+5 to +40 °C
  	Humidity	5 to 85% (non-condensing)
  	Protection	Class I according to IEC 61140
