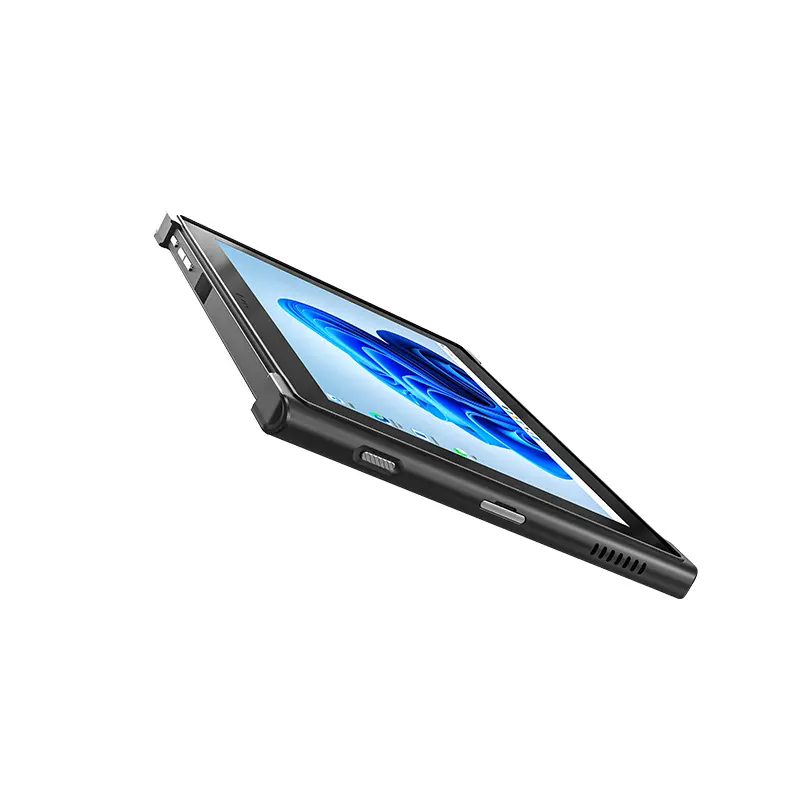

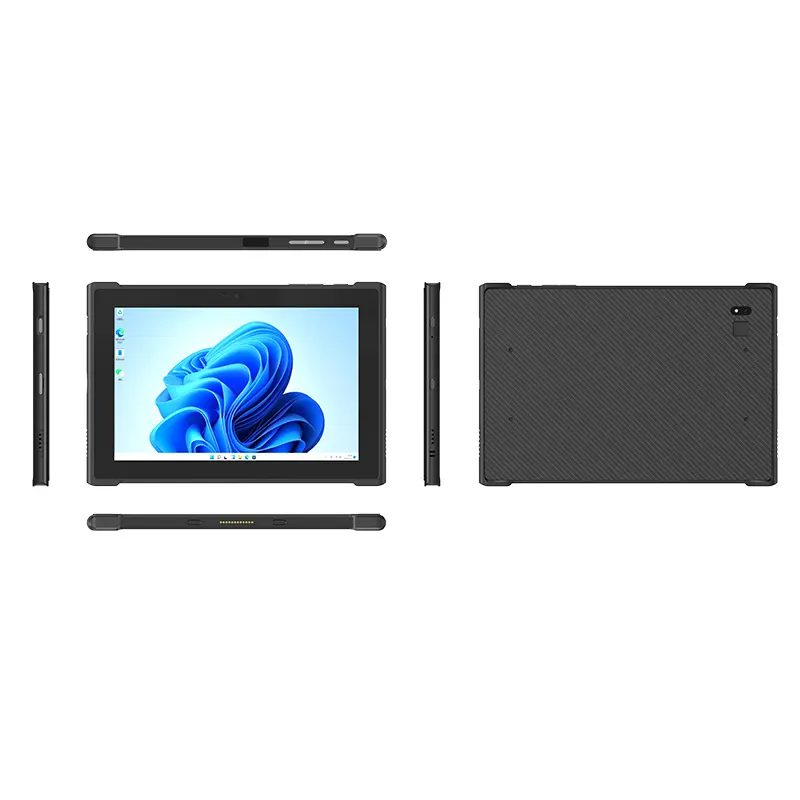

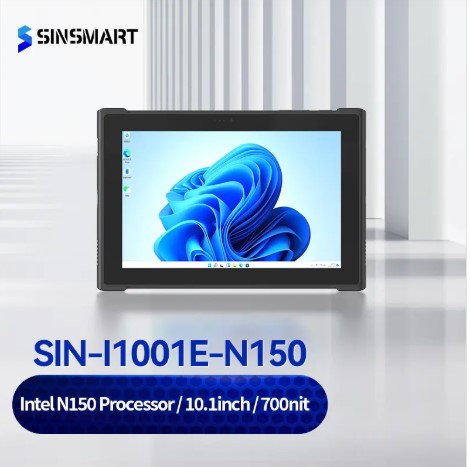

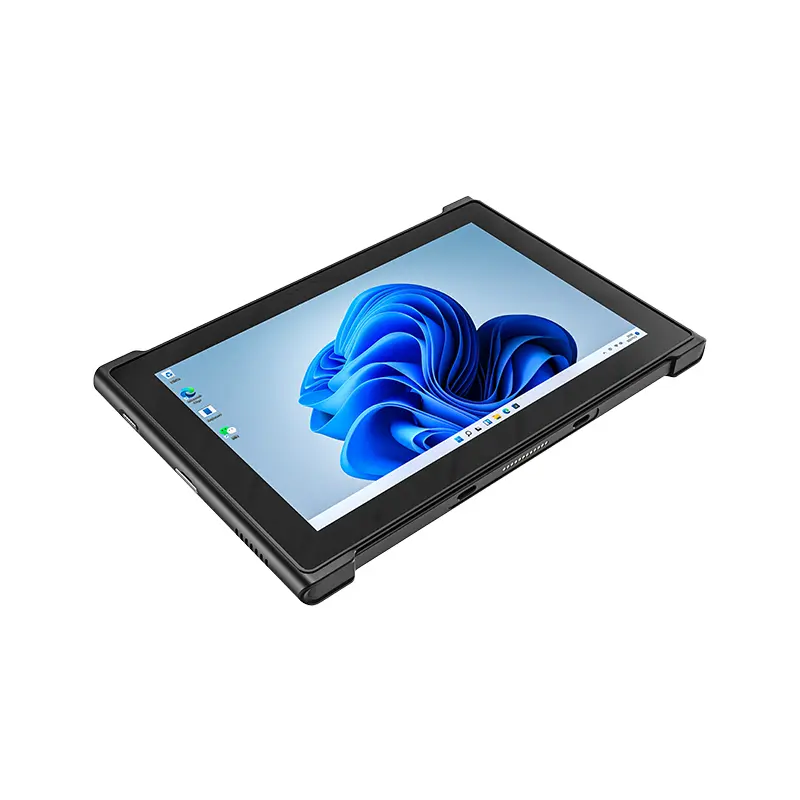

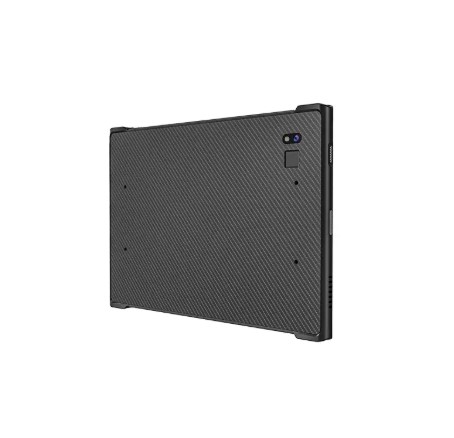

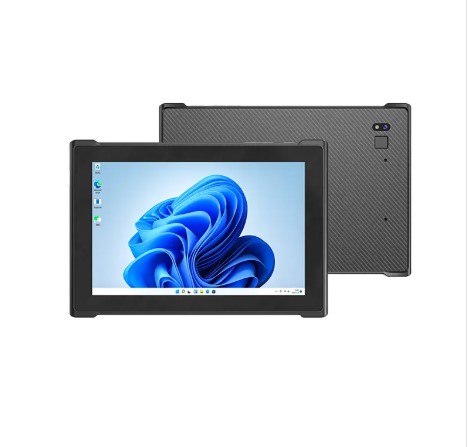

Rugged Windows Tablet SIN-I1001E-N150
The SIN-I1001E-N150 is a slim, lightweight 10.1-inch rugged tablet built for logistics, manufacturing, and field operations. It measures 260×174.7×12.7 mm, weighs about 930 g, and meets IP67 with 1.8 m drop resistance. The FHD IPS display is 1200×1920 with 700 nits brightness and 10-point capacitive touch (supports MPP702 active pen). Powered by Intel® N150 with Intel® Graphics and Windows 11 Home, it balances endurance and portability for all-day tasks.
1.Data capture & security
As a fingerprint reader tablet, SIN-I1001E-N150 includes fingerprint: YES and front-facing HF-RFID (NFC) reader (NXP300)—ideal if you need a windows tablet nfc or a rugged tablet with RFID for access control and smart tagging. It also supports 1D barcode scanning, making it a practical rugged tablet with barcode scanner for inventory and traceability. (2D: NO.)
Connectivity covers Intel® Wi-Fi 6 AX101, Bluetooth® 5.2, and optional 4G/5G—so configured models serve as a fast 5G rugged tablet in the field. GPS/GLONASS positioning is supported for reliable outdoor navigation.
2.I/O & cameras
Ports include USB 3.2 (Type-C) ×2, Nano-SIM + MicroSD, and a 12-pin Pogo for docking/charging; power via USB-C / 33 W (EU) adapter. Cameras are front 5 MP and rear 13 MP for documentation and video calls.
3.Battery & ruggedness
A 4800 mAh / 7.4 V Li-ion battery delivers about 7.4 hours of operation. Rated for –20 °C to 60 °C operation, –30 °C to 70 °C storage, and 95% (no condensation) humidity. IP67 sealing and 1.8 m drop resistance enhance field reliability.
At-a-glance highlights
- 10.1" FHD (1200×1920), 700 nits, slim 12.7 mm, ~930 g.
- Intel® N150 + Windows 11 Home; Wi-Fi 6 / BT 5.2 / optional 4G/5G.
- NFC (HF-RFID), fingerprint, 1D scanner (2D: NO).
Features:
- CPU:Intel N150(6MB Cache,up to 3.6GHz,4 cores,4 threads,TDP 6W)
- GPU: Intel® Graphics
- Memory:8G,Storage capacity(128GB)
- Display:10.1",FHD(1200*1920),700 nits
- Touch screen:10 point capacitive touch screen,support MPP702 active pen
- Camera:Front 5.0MP + rear 13.0MP
- Protection level:IP67 compliant
- Wireless Communications:Wi-Fi 6,Bluetooth® V5.2,4G/5G,GPS,Glonass
- Dimensions:10.1",260*174.7*12.7mm,weight about 930g
- Operating system:Windows11 Home
- Model:SIN-I1001E-N150
Specifications:
| Durability |
MIL-STD-810H certified; 6ft drop 26 faces; IP67 certified; ±8kV contact discharge, ±15kV air discharge |
| Operating System |
Windows 11 Home; Optional Windows 11 PRO/IOT |
| Processor |
Intel N150 (6MB Cache, up to 3.6GHz, 4 cores, 4 threads, TDP 6W) |
| Graphics |
Intel® Graphics |
| Memory |
8GB LPDDR5 on board |
| Storage |
128GB eMMC; Optional 256GB eMMC; Optional 512GB UFS |
| Display |
10.1” FHD (1200 x 1920), 700nits sunlight readable display;
10-point capacitive touchscreen, support an active stylus
|
| Audio |
Integrated microphone; Integrated 1W speaker x 2; Class k audio amplifier |
| Camera |
Integrated 5.0 MP front camera; Integrated 13.0 MP auto-focus rear camera with flash |
| Keyboard & Input |
4 buttons (1 scan key) |
| Network & Connectivity |
Intel® Wi-Fi 6 AX101 (802.11 ax); Bluetooth® V5.2; Integrated 4G LTE multi-carrier mobile broadband;
Optional 5G; Integrated GPS and Glonass module
|
| Security |
Integrated TPM2.0; Integrated fingerprint scanner; Integrated HF-RFID (NFC) reader |
| Data Capture |
Integrated 1D/2D barcode reader |
| I/O Interface |
USB3.2 (Type-C) x 2; Docking connector (12pin PogoPin) x 1; Micro SD card x 1; SIM card x 1 |
| Battery & Charging |
33W USB Type-C adapter; Battery Li-Ion, 7.74V, 4800mAh, 7.4 hours; RTC 3V/1mA on board |
| Environment |
Operating temperature: -20°C ~ 60°C (-4°F ~ 140°F);
Storage temperature: -30°C to 70°C (-22°F~158°F);
Humidity: 95% (Non-Condensing)
|
| Dimension |
260mm(L) x 174.7mm(W) x 12.7mm(H) |
| Weight |
930g |
| Accessories |
Standard: adapter, cable(Type-C), rotatable hand strap; Optional: docking charger, stylus, leather keyboard |
| Warranty |
one-year limited warranty standard |
