People who work outdoors often need a tablet that can survive drops, rain, dust and extreme temperatures. A broken screen or a dead battery can stop a job, cause delays and cost extra money. You need a device that stays on, shows your location and keeps working no matter the weather. The SINSMART SIN-I1012E(Linux) 10.1" GPS IP65 MIL-STD-810G Rugged Tablet PC gives you exactly that - a tough, reliable computer with built-in GPS and long battery life.

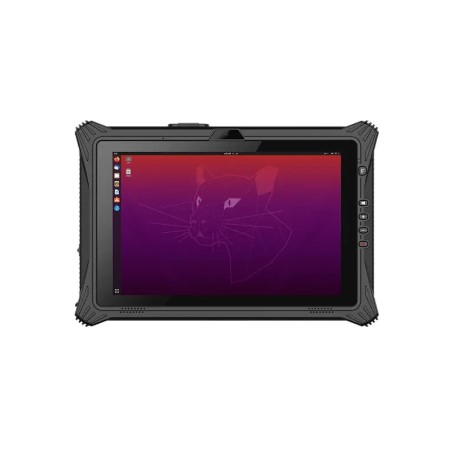

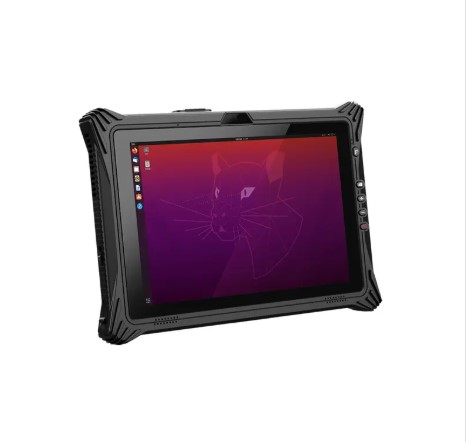

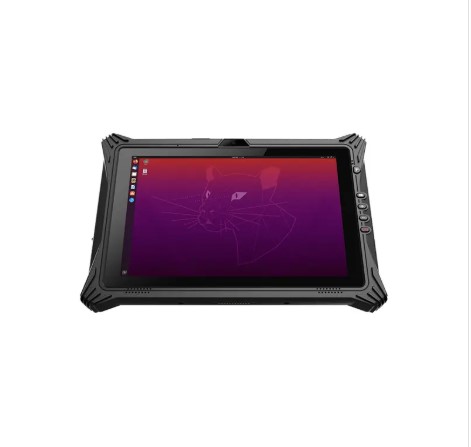

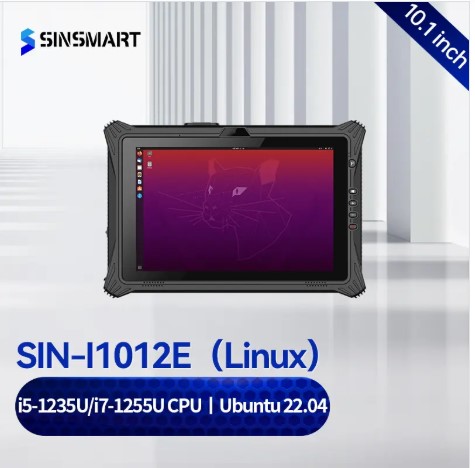

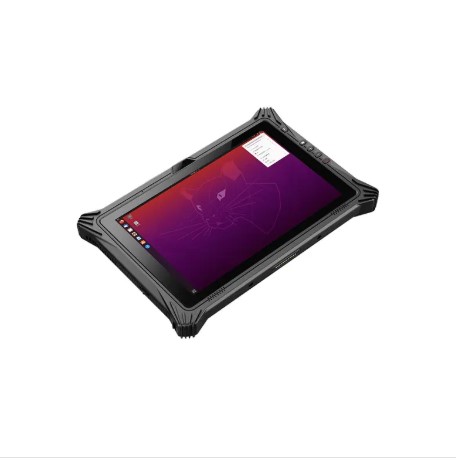

SINSMART SIN-I1012E(Linux) 10.1" GPS IP65 MIL-STD-810G Rugged Tablet PC with SINSMART
Imagine a tablet that never quits when you need it most. This rugged tablet runs Linux, offers a bright 10.1-inch IPS screen and a precise GPS receiver. It is built to military standards, so it can be dropped, splashed and still work. If you need a computer that can survive a construction site, a field survey or an emergency response, this is the tool that fits the job. SINSMART delivers the durability you trust.
Key Features
- 10.1" IPS display, 1200 x 1920 resolution, 700 nits brightness.
- IP65 water and dust protection, MIL-STD-810G shock resistance.
- Intel Core i5-1235U or i7-1255U processor for fast performance.
- 8 GB RAM standard, up to 64 GB optional.
- 128 GB SSD storage, expandable to 512 GB.
- Built-in GPS, Glonass and optional Beidou support.
- Wi-Fi 6 and Bluetooth 5.1 for reliable connectivity.
- USB-C, USB-3.0, HDMI, SIM slot and optional 4G LTE.
- 10-point capacitive touch with glove-friendly response.
- Removable 5000 mAh Li-polymer battery lasting up to 4.5 hours under load.
Specifications
| Dimension |
289.9 x 196.7 x 27.4 mm |
| Weight |
device unit 1140 g |
| Device Color |
black |
| LCD |
10.1 inch IPS 16:10, 1200×1920, 700nits/400nits |
| Touch Panel |
10 point G+F+F capacitive touch screen |
| Camera |
Front 2.0MP Rear 8.0MP |
| I/O |
USB 3.0 Type-A x 1, USB Type-C x 1, SIM Card x 1, TF Card x 1, HDMI 1.4a x 1, 12pins Pogo Pin x 1, Φ3.5mm standard
earphone jack x 1, Φ6.5mm DC jack x 1
|
| Power |
AC100V ~ 240V, 50Hz/60Hz, Output DC 19V/3.42A |
| NFC |
Optional, 13.56 MHz, Card reading distance: 4 cm |
| Fingerprint |
Standard |
| RTC battery |
3V/210mAh |
| Battery |
| Capacity |
7.4V/700mAh |
| Type |
Built-in Li-polymer battery |
| Battery |
| Capacity |
7.4V/5000mAh |
| Type |
Removable Li-polymer battery |
| Endurance |
4.5h (50% volume sounds, 200 lumens brightness, 1080P HD video display by default) |
| Performance parameter |
| CPU |
Intel Core i5-1235U/i7-1255U |
| OS |
Ubuntu-22.04.4 |
| RAM |
8GB, Optional 16GB, Up to 64GB |
| Storage |
128GB, Optional 256GB, Up to 512GB |
| Network connections |
| WIFI |
Wi-Fi 6 802.11a,b,d,e,g,h,i,k,n,r,u,v,w,ac,ax (2.4G/5.8G) |
| Bluetooth |
BT5.1
Transmission distance: 10 m |
| 4G (Optional) |
LTE FDD: B1/B3/B5/B8/B20
LTE-TDD: B40 WCDMA: B1/B5/B8
GSM: 900/1800 |
| GNSS |
Support GPS, Glonass, Optional Beidou |
| Reliability |
| Operate Temperature |
-20 °C ~ 60 °C |
| Store Temperature |
-30 °C ~ 70 °C |
| Humidity |
95% Non-Condensing |
| Rugged Feature |
IP65 certified, MIL-STD-810G certified |
| Drop Height |
1.22m drop |
| Electrostatic Discharge |
± 8kV contact discharge, ± 15kV air discharge |
| Extension modules (1 out of 4) |
| Ethernet interface |
RJ45 (10/100/1000M) x 1 |
| Serial port |
DB9 (RS232) x 1 |
| USB2.0 |
USB 2.0 x 1 |
| 2D |
Optional, Optical resolution: 5mil/scan speed: 50 times/s |
