Tired of a computer that cannot survive the shop floor or the field? The SINSMART SIN-JU151-WR680MC 15.6 Inch Single-Screen Industrial Portable PC is built for tough places where ordinary laptops fail. It gives you a full-size screen, strong processing power and a rugged case that keeps working in dust, heat and vibration. If you need reliable data entry, monitoring or control while you move around, this machine solves that problem.

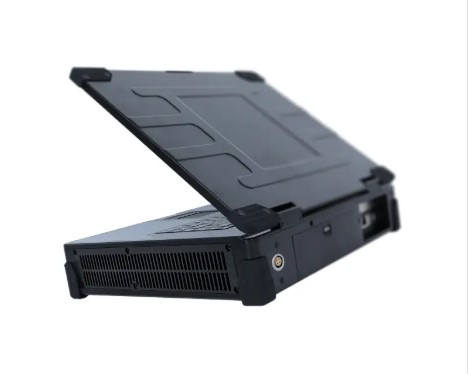

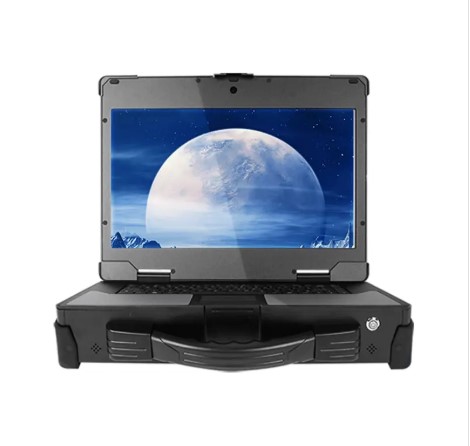

SINSMART SIN-JU151-WR680MC 15.6 Inch Single-Screen Industrial Portable PC
Many industrial users struggle with devices that overheat or shut down when the temperature drops below freezing. When a computer stops, production stops, and costs rise. The SINSMART PC tackles this by offering a sealed chassis, a wide operating temperature range and a powerful Intel R680E chipset that runs cool even under load. You get a stable platform that lets you run Windows or Linux, connect multiple drives and keep working without interruption.
Key Features
- Intel R680E chipset with support for 12th/13th-gen processors.
- 1920 x 1080 LED display with 300 nits brightness.
- 7-core CPU architecture for fast multitasking.
- 2 DDR4 SO-DIMM slots, up to 64 GB memory.
- Three SATA III bays, RAID 0/1/5/10 options.
- PCIe X16 slot and three M.2 slots for expansion cards.
- Six USB 3.2 ports, dual DP, HDMI, and three LAN ports.
- Two COM ports and SIM card holder for cellular connectivity.
- Optional cooling fan system supporting up to seven 40 mm fans.
Specifications
| Chipset |
Intel®R680Echipset |
| Resolution |
1920 x 1080 LED Screen |
| Brightness |
300nits |
| Battery |
9600mAh |
| No. of Cores |
7 Core |
| CPU |
LGA1700 architecture, supports Intel® 12/13 generation processors |
| Memory |
2 x DDR4 SO-DIMM memory slots, supports 64G |
| Harddisk |
3 x SATAIII interface (supports RAID 0,1,5,10) |
| Display |

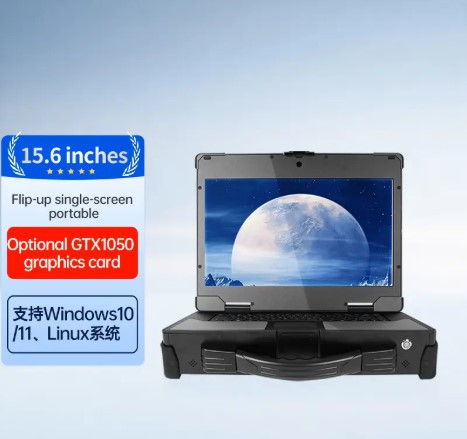

15.6-inch LED screen, 1920 x 1080 resolution, |
| Input device |
100-key keyboard, capacitive touchpad |
| Expansion |
1 x PCIeX16 slot, 1 x M.2 M-key, 1 x M.2 E-key, 1 x M.2 B-key, with SIM card holder |
| I/O |
2 x DP interface, 1 x HDMI interface, Line-out, MIC, 6 x USB 3.2, 3 x LAN, 2 x COM port, 2 x expansion slot |
| Power |
supply: Input: AC 100~240V Output: DC-19V |
| Cooling system |
Optional cooling fan according to the power consumption of the whole machine, support 7 x 40 fans |
| Working environment |
Working temperature: -10℃ ~ 60℃, |
| System |
Windows 10/11, Linux |
| Dimensions weight |
380×290×77.6(mm), 5KG |
