Tired of computers that freeze when the factory floor gets hot, dusty or vibrates? The Spectra PowerBox 530 Pro 4 MXM Industrial PC is a rugged box PC built to run nonstop in those conditions. It gives you desktop class speed, graphics power and many ports in a small unit that can be mounted on a DIN rail, wall or side panel. If your current system cannot keep up with real time data, you lose time and money, and this machine is made to stop that.

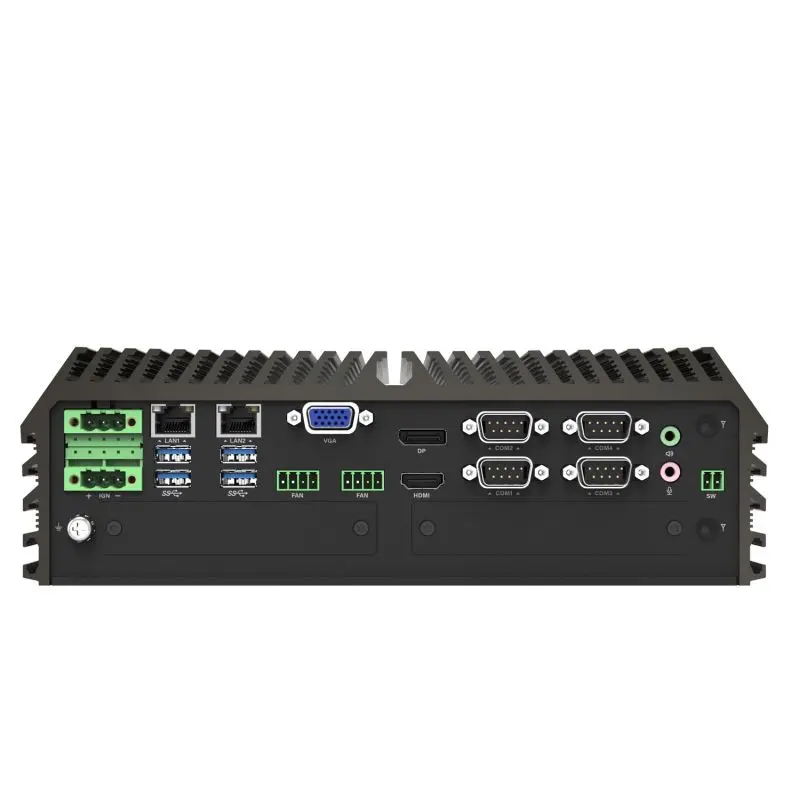

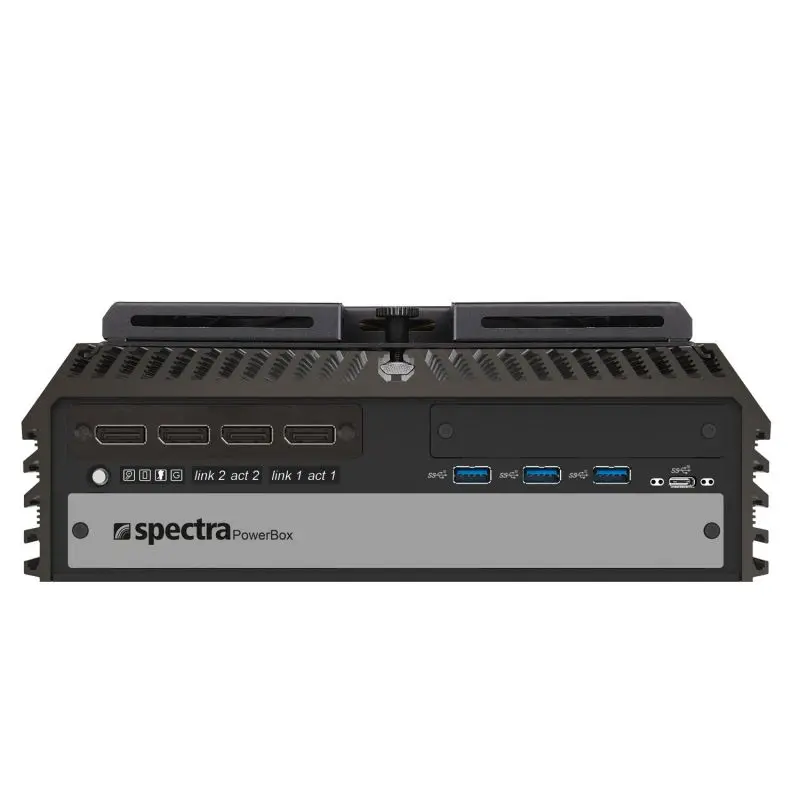

Spectra PowerBox 530 Pro 4 MXM Industrial PC
Many factories suffer from PCs that overheat, crash, or cannot display several screens at once. When a computer slows down, production lines pause and costs rise. This problem matters because every minute of downtime hurts the bottom line. The PowerBox solves it by pairing a 14th-gen Intel i7 processor with an NVIDIA MXM-RTX3000 graphics module, four DisplayPort outputs and fast SSD storage. The result is a smooth, reliable system that handles heavy workloads, multiple video feeds and network traffic without missing a beat.
Usages of Spectra
The PowerBox fits well in production lines that need real time monitoring, such as assembly robots, quality-control cameras and PLC interfaces. It works in remote oil and gas sites where power ranges from 9 to 48 V and space is limited, thanks to its DIN-rail and wall mount options. It also serves as a graphics workstation for machine vision, displaying up to four camera feeds side by side. In warehouses it can run inventory management software and barcode scanners without lag.
Benefits
- Runs multiple control apps at the same time.
- Shows four video streams without slowing down.
- Works in extreme temperature and dust conditions.
- Reduces wiring with built-in PoE and power ignition.
- Mounts easily on rail, wall or side panel.
Key Features
- 14th-gen Intel Core i7 CPU for fast processing.
- NVIDIA MXM-RTX3000 graphics for high-resolution output.
- Four DisplayPort video outputs for multi-screen setups.
- 512 GB SSD storage with optional M.2 extensions.
- 16 GB RAM for smooth multitasking.
- 1 GbE and 2.5 GbE LAN ports for reliable networking.
- USB 3.2 Gen1, Gen2 and Gen2x2 ports for fast data transfer.
- RS-232, RS-422 and RS-485 COM ports for industrial devices.
- Active cooling system to keep temperature low.
- Power input range 9-48 V DC for flexible installation.
Specifications
| Product Type |
Industrial PC |
| Form Factor |
Box PC |
| Product Series |
Spectra PowerBox 500 |
| Ready-to-use |
Yes |
| CPU Generation |
14th Gen / Raptor Lake |
| CPU Family |
Intel Core i7 |
| RAM / Memory |
16 GB |
| System Drive |
512 GB |
| Drive Bay |
2.5" |
| Storage Extensions |
M.2 M-Key SSD, M.2 B-Key SSD, SIM Card |
| Graphics Controller |
Intel integrated, NVIDIA MXM |
| Graphics Interfaces |
VGA, HDMI, DisplayPort (DP) |
| LAN Ports / Speed |
1 × 1 GbE LAN, 1 × 2.5 GbE LAN |
| USB Ports / Speed |
USB 3.2 Gen1 (5 Gbit/s)USB 3.2 Gen2 (10 Gbit/s)USB 3.2 Gen2x2 (2 × 10 Gbit/s) |
| COM Ports |
RS-232 / RS-422 / RS-485 |
| Expansion Slots |
M.2 B-Key, M.2 E-Key, Proprietary sockets |
| Operating System |
Windows 11 IoT Enterprise LTSC 2024 |
| Operating Temperature |
Standard industrial range |
| Cooling |
Active |
| Mounting Options |
DIN-Rail, Side-mount, Wall |
| Power Supply / Input |
9–48 V DC |
