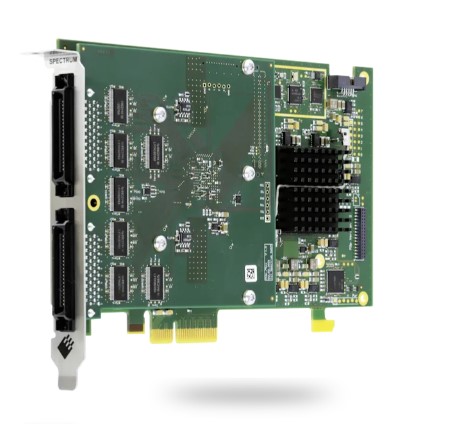

Spectrum Instrumentation M2p.7515-x4, PCIe x4 Gen1 Half-length Digital I/O Card

Spectrum Instrumentation M2p.7515-x4 PCI Express (PCIe) x4 Gen1, 32 Channels Digital I/O Card - MTHO-507

The M2p.75xx series of fast digital I/O cards allow to acquire or replay digital patterns with a programmable speed of up to 125 MS/s. The direction can be switched by software between input (digital data acquisition) and output (digital pattern generation). The on-board memory of 1 GByte can be completely used for digital pattern. Furthermore the on-board memory can be switched to a FIFO buffer allowing to continuously stream data in either output or input direction.

Features:

• 1 kS/s up to 125 MS/s sampling speed
• Ultra Fast PCI Express x4 interface
• 110 Ohm input impedance selectable
• Inputs 3.3 V and 5.0 V TTL compatible
• 1 GByte of on-board memory
• 700 MB/s FIFO mode for input and output
• Synchronization of up to 16 cards per system
• PCIe x4 Gen1 Interface
• Works with x4/x8/x16 PCIe slots
• Software compatible to PCI
• Sustained streaming mode up to 700 MB/s
• Direct data transfer to / from CUDA GPU using SCAPP
