Do you struggle to get reliable weather data for your farm, construction site, or remote research station? The Speed Studio SenseCAP S700 V2 7-in-1 Compact Weather Sensor gives you fast, accurate readings of temperature, humidity, pressure, wind, rain and light, all from one small device. It solves the problem of having many separate instruments that are hard to install and maintain, so you can trust the data you need, when you need it.

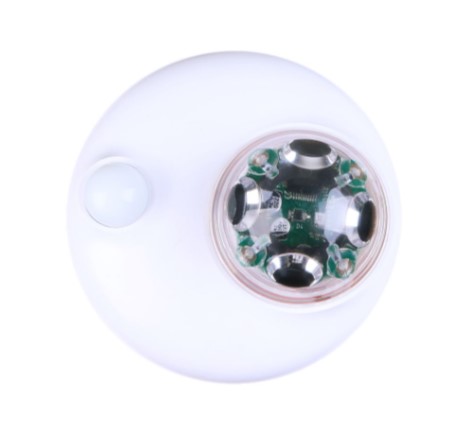

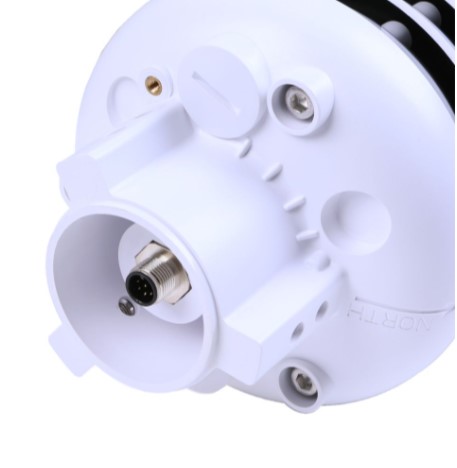

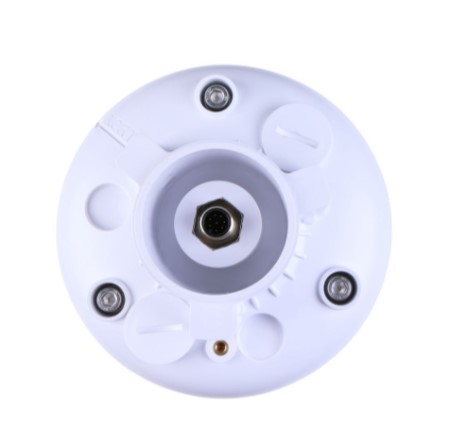

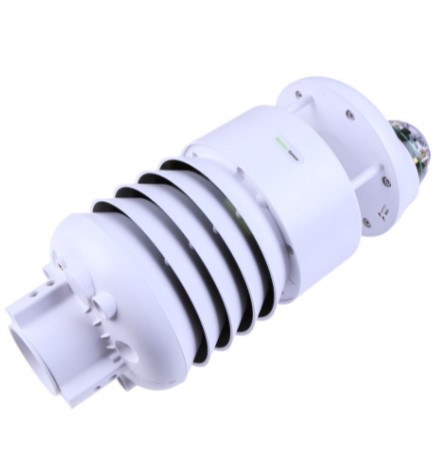

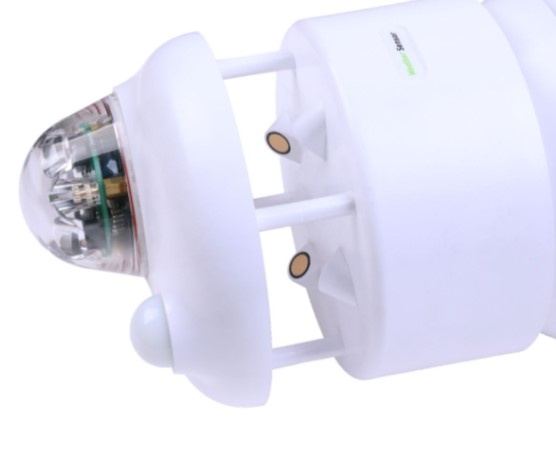

Speed Studio SenseCAP S700 V2 7-in-1 Compact Weather Sensor
Many users waste time and money because their weather stations miss one or two important measurements. Missing data can lead to wrong decisions about irrigation, safety, or energy use. This sensor combines seven measurements in a single, rugged unit, so you get a complete picture without extra cables or extra power. The built-in heating and IP66 rating keep it working in harsh climates, giving you confidence in every reading.
Key Features
- Measures temperature, humidity, pressure, wind speed, wind direction, rainfall intensity and light.
- RS485 (MODBUS-RTU) and SDI-12 protocols for easy integration.
- Power range 12 V-24 V with optional 24 V heating supply.
- Operating temperature from -40 C to +85 C.
- Wind speed range up to 80 m/s, with 0.3 m/s accuracy at low speeds.
- Rainfall intensity up to 200 mm/h, 10 % accuracy.
- Light intensity up to 200,000 Lux, 5 % accuracy.
- 3 m cable length simplifies mounting.
- Weight only 2 kg, making it easy to transport.
- IP66 rating ensures protection against dust and water jets.
Specifications
| General Parameters |
|
| Parameters Measured |
Air temperature, relative humidity, barometric pressure, wind speed, wind direction,
rainfall intensity and light intensity
|
| Protocol |
RS485 (MODBUS-RTU) / SDI-12 |
| Power Supply |
12V~24V |
| Heating Power Supply |
24V |
| Cable Length |
3m |
| Operating Temperature & Humidity |
-40 °C ~ +85 °C, 0 ~ 100%RH |
| IP Rating |
IP66 |
| Device Weight |
2kg |
| Air Temperature |
|
| Range |
-40 °C ~ +85 °C |
| Accuracy |
±0.1℃ |
| Resolution |
0.01 ℃ |
| Air Humidity |
|
| Range |
0 ~ 100% RH |
| Accuracy |
±1.5% RH |
| Resolution |
0.01% RH |
| Barometric Pressure |
|
| Range |
300 ~ 1250 hPa |
| Accuracy |
±50 Pa |
| Resolution |
10 Pa |
| Wind Speed (Ultrasonic) |
|
| Range |
0~60 m/s standard range; 0~75m/s extended range; Up to 80m/s withstand range |
| Accuracy |
±0.3m/s (≤10m/s); ±3% (10m/s ~ 50m/s); ±5% (>50m/s) |
| Resolution |
0.1 m/s |
| Wind Direction (Ultrasonic) |
|
| Range |
0 ~ 360° |
| Accuracy |
±3.0° |
| Resolution |
0.1° |
| Rainfall Intensity (Optical) |
|
| Range |
0 ~ 200 mm/h |
| Accuracy |
±10% |
| Resolution |
0.2 mm/h |
| Light Intensity |
|
| Range |
0 ~ 200,000 Lux |
| Accuracy |
±5% of reading |
| Resolution |
5 Lux |
