Many factories and kiosks need a computer that never stops, never gets hot and never makes noise. When a device overheats it can shut down, cause lost data and increase maintenance costs. Noise can disturb workers or customers, especially in quiet environments. The SRG-IMX8P Fanless Embedded Box PC with NXP i.MX8M Plus, 4GB RAM removes the fan, keeps the temperature low and runs silently, giving you a reliable, low-maintenance solution.

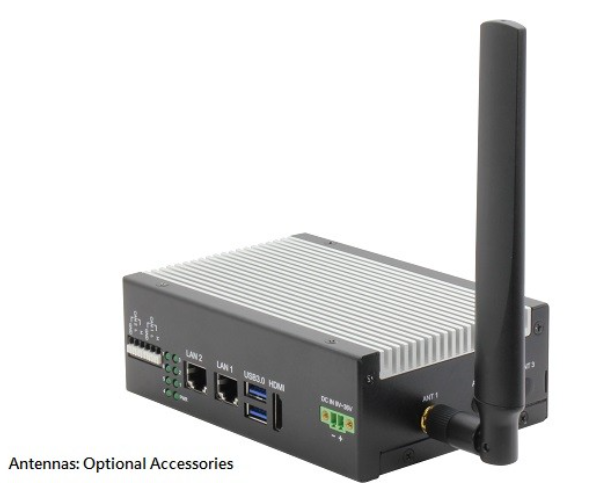

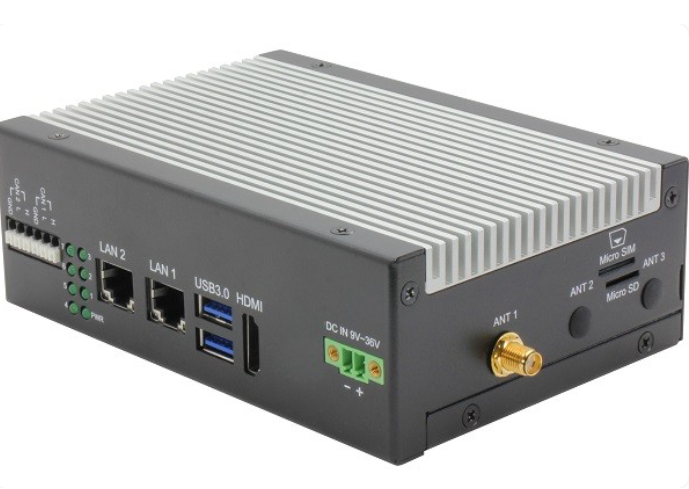

AAEON Tech SRG-IMX8P Fanless Embedded Box PC with NXP i.MX8M Plus, 4GB RAM with Fanless
A compact, fanless box that delivers the power of a modern ARM processor in a sealed chassis. It is built for industrial control, digital signage, edge AI and any application that demands constant uptime. The fanless industrial PC design eliminates moving parts, so you avoid dust buildup and noisy operation while still getting fast computing.
Usages
Use this PC in a factory line to monitor sensors and control machines. Install it in a retail display to run interactive menus without distracting fans. Deploy it at the edge of a smart city camera system where temperature swings from -20 C to 70 C. It also fits in medical cabinets where clean, silent operation is required.
Benefits
- Silent operation keeps workplaces calm and improves customer experience.
- No fan means lower power consumption and longer device life.
- Wide temperature range lets you install it in harsh environments.
- Quad-core i.MX8M Plus processor handles AI inference and multitasking.
- Built-in dual GbE ports give fast, reliable network connections.
Key Features
- ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.7 GHz CPU
- 2.3 TOPS NPU for edge AI processing
- 4 GB LPDDR4 1866 MHz memory
- 32 GB eMMC storage with optional MicroSD slot
- HDMI output for external display
- Two Gigabit Ethernet ports
- USB 3.0 x2 for high-speed peripherals

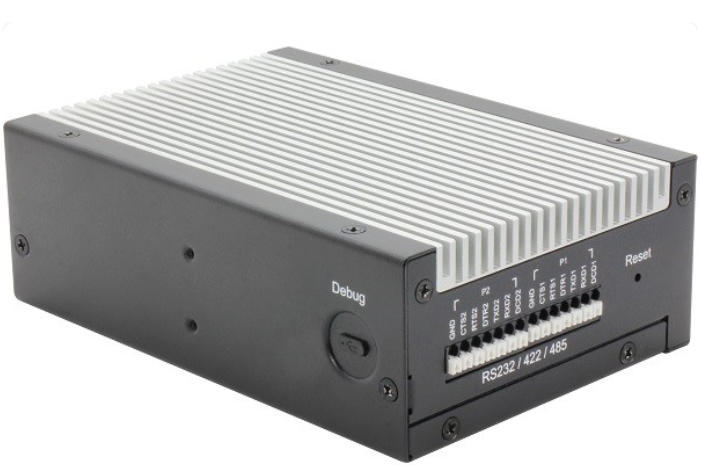

- RS-232/422/485 x2 and Phoenix connectors for serial devices
- Mini PCIe x2 slots and SIM card socket for expansion
- Operating temperature from -20 C to 70 C
Specifications
| PART NUMBER |
SRG-IMX8P-A11-W432 |
| CPU |
ARM NXP i.MX8M Plus Quad-Core Cortex-A53 1.7GHz Processor |
| NPU |
2.3 TOPs |
| MEMORY |
Onboard LPDDR4 1866MHz 4GB |
| DISPLAY |
HDMI x 1 |
| STORAGE |
eMMC 32GB, MicroSD x 1 |
| LAN |
GbE x 2 |
| USB |
USB 3.0 x 2 |
| COM |
RS-232/422/485 x 2, Phoenix |
| EXPANSION SLOT |
Mini PCIe Slot x 2, SIM card socket x 1 |
| POWER |
DC 9-36V |
| OPERATING TEMP |
-20°C ~ 70°C |
| AUDIO |
— |
| OTHERS |
CAN-FD x 2 CH, Phoenix; 3G/4G LTE module / Wifi/BT Module (optional) |
| OS |
Win 10 IOT for ARM64 |
