Power outages and voltage spikes can shut down servers, lose data, and cost money. For IT managers, every minute of downtime hurts productivity and reputation. The SURT192RMXLBP2 delivers clean, continuous power, protecting critical equipment and giving you time to shut down safely. It solves the worry of unexpected loss by providing pure sine wave output, long runtime, and network monitoring, so your business stays online when the grid fails.
SURT192RMXLBP2 with SURT192RMXLBP2

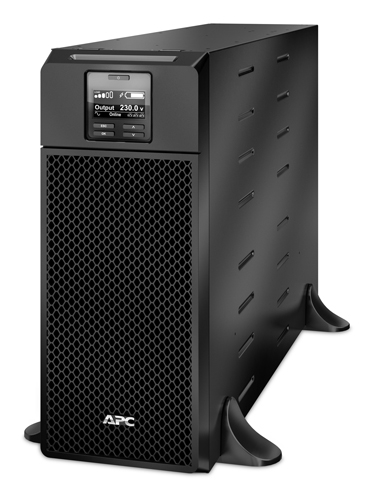

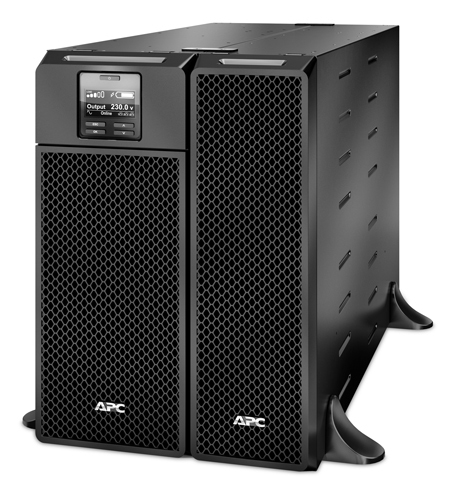

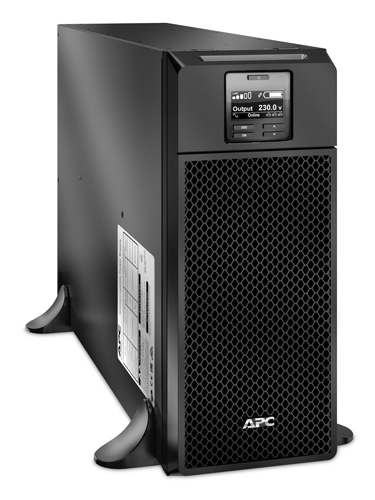

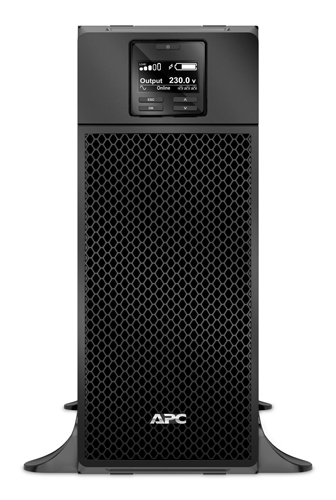

Never let a blackout bring your data center to a halt. The SURT192RMXLBP2 is a 6 kVA online tower UPS built for IT professionals who need reliable power for servers, storage arrays, and networking gear. It supplies pure sine wave electricity, smooths voltage fluctuations, and offers extended runtime during outages. When the power fails, the built-in Network Management Card alerts you and PowerChute Network Shutdown safely powers down virtual machines and physical servers, preventing data loss and hardware damage.
Usages
Use the SURT192RMXLBP2 in a server room to keep rack-mount servers running during short outages. It fits in a network closet to protect switches, routers, and firewalls that keep your office connected. The unit can also be placed in a small data center to back up storage systems and virtualization hosts. With its hard-wire input and multiple IEC C13 and C19 outlets, you can power a mix of equipment without needing extra adapters.
Benefits
- Continuous power prevents server crashes and data loss.
- Pure sine wave output protects sensitive electronics from distortion.
- Network monitoring lets you see status and act before problems grow.
- Automatic graceful shutdown saves time and avoids manual intervention.
- High efficiency reduces electricity costs while delivering strong performance.
Key Features
- 6 kVA / 6000 W double-conversion online topology.

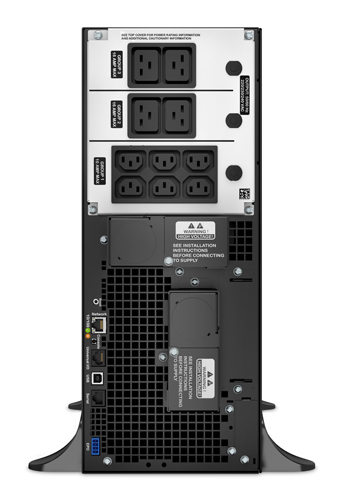

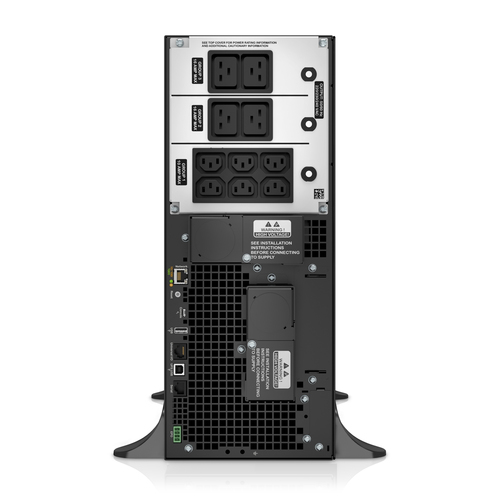

- 10 IEC outlets (6 C13, 4 C19) for diverse equipment.
- Embedded Network Management Card with RJ-45 and USB.
- PowerChute Network Shutdown for safe server power-off.
- Auto-restart and audible alarms for quick recovery.
- Surge protection up to 480 J and 55 dB noise level.
- Hot-swap sealed lead-acid battery with 1.5 h recharge.
- Input voltage range 100-275 V, frequency 40-70 Hz.
- Output voltage regulation 220-240 V, THD 3 %.
- SmartSlot for optional I/O or communication cards.
Specifications
| Features |
| Auto-restart |
Yes |
| Audible alarm(s) |
Yes |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Output voltage Total Harmonic Distortion (THD) |
3% |
| Emergency Power Off (EPO) |
Yes |
| Crest factor |
3:1 |
| Efficiency |
94.4% |
| Number of output phases |
1 |
| Surge energy rating |
480 J |
| Output frequency regulation |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
220 V |
| Input frequency |
40 - 70 Hz |
| Input operation voltage (max) |
275 V |
| Input operation voltage (min) |
100 V |
| Waveform |
Sine |
| Output power |
6000 W |
| Output power capacity |
6 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| SmartSlot |
Yes |
| Serial interface type |
RJ-45 |
| Serial interface |
Yes |
| USB port |
Yes |
| Number of output IEC jumpers |
2 |
| AC outlets quantity |
10 AC outlet(s) |
| Power plug |
Hardwire |
| AC outlet types |
C13 coupler, C19 coupler |
| Battery |
| Battery capacity |
902 VAh |
| Cold start |
Yes |
| Automatic battery test |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
1.5 h |
| Battery life (max) |
5 year(s) |
| Typical backup time at half load |
8.7 min |
| Typical backup time at full load |
2.5 min |
| Battery capacity |
902 VAh |
| Battery capacity |
902 VAh |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| LED indicators |
Status |
| Display type |
LCD |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 - 15000 m |
| Operating altitude |
0 - 3000 m |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Cables included |
USB cable |
| Sustainability |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
60 kg |
| Height |
432 mm |
| Depth |
719 mm |
| Width |
174 mm |
| Packaging data |
| Package weight |
67 kg |
| Package height |
370 mm |
| Package depth |
960 mm |
| Package width |
610 mm |
| Software CD |
Yes |
| Warranty card |
Yes |
| Temperature sensor |
Yes |
| Other features |
| Packaging content |
Removable support feet Web/SNMP Management Card |
| Operating temperature (T-T) |
0 - 40 °C |
