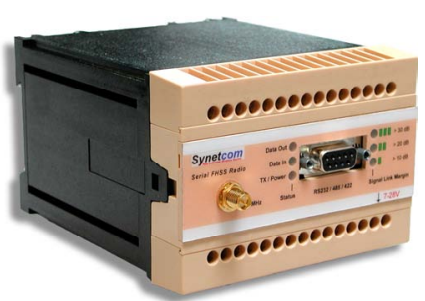

Synetcom 900MHz 1W Serial Radio Gateway RS232 RS485 RS422 DIN

Imagine losing critical sensor data just because your wireless link is weak. The Synetcom 900MHz 1W Serial Radio Gateway RS232 RS485 RS422 DIN fixes that problem. It turns serial data from RS232, RS485 or RS422 devices into a reliable 900 MHz radio signal. You get a sturdy bridge between remote equipment and your control center, even in harsh weather. If you need a simple, dependable way to keep data flowing, this gateway is the answer.

Synetcom 900MHz 1W Serial Radio Gateway RS232 RS485 RS422 DIN

Many users struggle with intermittent connections that cause missed readings or corrupted logs. When data stops, decisions become guesswork and downtime rises. This gateway solves the issue by offering configurable RF power, FHSS hopping, and strong error protection. It works with Modbus and other common protocols, so you can replace fragile cables with a wireless link that still meets industrial standards. The result is a clear, continuous stream of information you can trust.

Usages of Synetcom

The device fits in water-treatment plants to send meter readings to a remote SCADA system. It links agricultural sensors across a farm so a farmer can monitor soil moisture from the barn. In oil and gas fields it carries pressure and temperature data from wellheads to a central hub. It also works for building automation, connecting fire-alarm panels or HVAC controllers to a management server without running new cables.

Benefits

• Reliable data transfer even over 40 miles line-of-sight.
• Easy integration with existing RS232/RS485/RS422 devices.
• Low power consumption suitable for solar or battery operation.
• Built-in CRC protection reduces errors and retransmissions.
• Temperature range of -40 C to +70 C handles extreme environments.

Key Features

• Configurable RF power from 1 mW to 1 W.
• Frequency range 902-928 MHz with 50 hopping channels.
• Maximum data rate 115.2 kb/s for fast communication.
• Receiver sensitivity down to -110 dBm at low speed.
• DIP switch selects RS232, 2-wire RS485 or 4-wire RS422.
• LED indicators show TX power, data flow and link margin.
• Supports Modbus and Modbus RTU protocols.

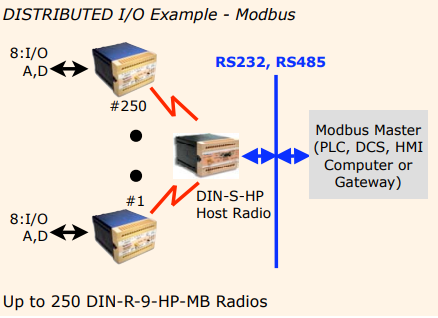

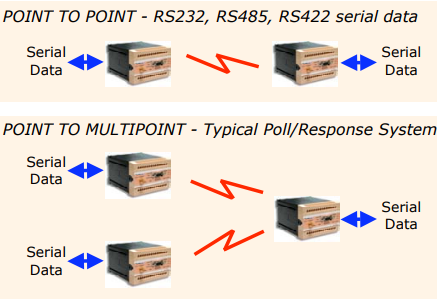

• Point-to-point, multipoint and repeater modes with ACK/Retry.
• Operating temperature -40 C to +70 C for rugged use.
• FCC, IC, C-TICK and CSA approvals for global deployment.

Specifications
