Tired of losing connection when your machines move outside the office? The Teltonika RUTX11, 4G/LTE (Cat 6) 256 MB RAM Industrial Cellular Router gives you a reliable link wherever you need it. It is built for harsh environments and lets you keep data flowing from remote sites, vehicles, or factories. If your business depends on constant communication, this router solves the downtime problem.

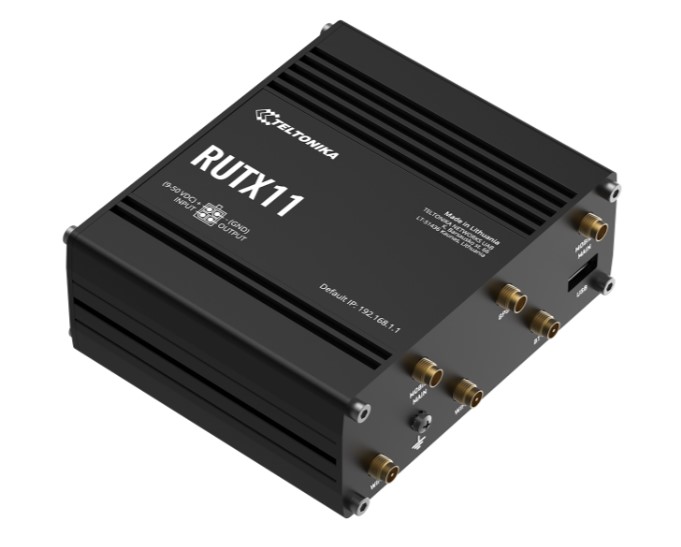

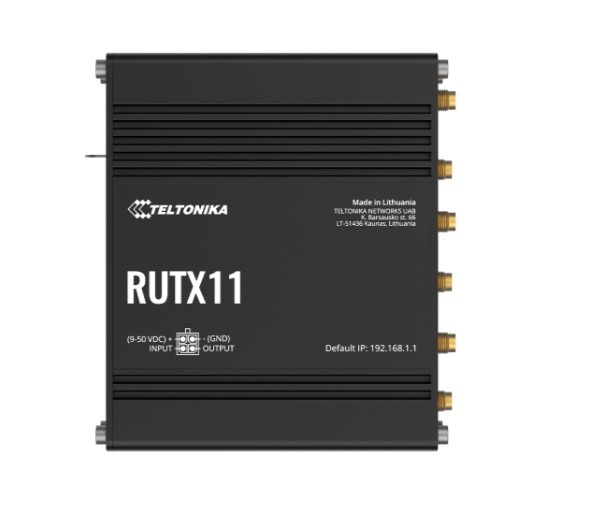

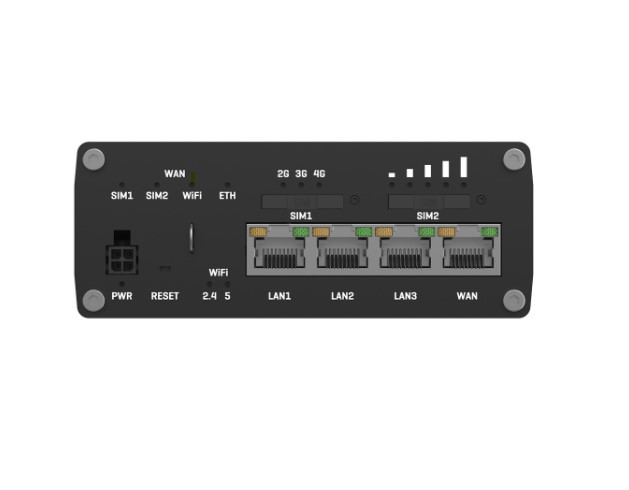

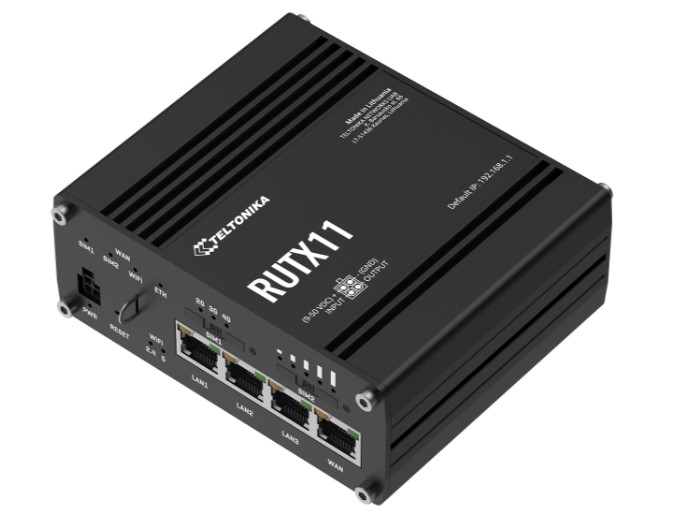

Teltonika RUTX11, 4G/LTE (Cat 6) 256 MB RAM Industrial Cellular Router
Many remote projects suffer from weak cellular signals and unstable networks. When a connection drops, you lose monitoring data, cannot control equipment, and risk costly delays. The RUTX11 addresses this by supporting Cat 6 LTE, dual SIM slots, and a rugged aluminium case. Its built-in Wi-Fi, Ethernet, and GPS give you many ways to stay online, so you can keep your operation running without interruption.
Key Features
- 4G LTE Cat 6 and 3G support for broad carrier compatibility.
- Qualcomm quad-core ARM Cortex-A7 CPU at 717 MHz.
- 256 MB RAM and 256 MB flash storage for stable operation.
- Two external 2FF SIM slots with automatic failover.
- Four Gigabit Ethernet ports (1 WAN/3 LAN) for wired devices.
- Dual-band Wi-Fi (2.4 GHz and 5 GHz) with AP and STA modes.
- GPS, GLONASS, BeiDou, Galileo, QZSS satellite positioning.
- Bluetooth 4.0 Low Energy for short-range device pairing.
- Digital input and open-collector output on a 4-pin socket.
- Power range 9-50 VDC with DIN-rail mounting for easy installation.
Note: This Product is EMEA / APAC VERSION with EU plug and incompatible in USA & CANADA.
Specifications
| HARDWARE |
|
| Mobile |
4G/LTE (Cat 6), 3G |
| CPU |
Qualcomm, 4 x ARM Cortex A7, 717 MHz |
| Storage |
256 MB Flash |
| Memory |
256 MB RAM |
| Power |
|
| Powering option |
4pin power socket, 9-50 VDC |
| SIM |
|
| SIM |
2 x External SIM holders (2FF) |
| Antenna |
|
| Antenna connectors |

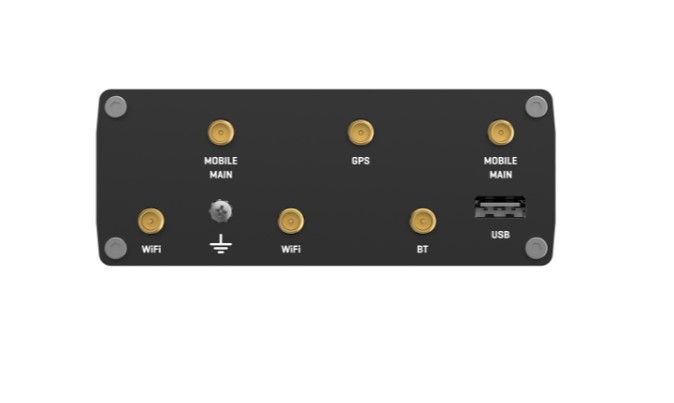

2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS |
| Ethernet |
|
| Ethernet |
4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN |
| WiFi |
|
| WiFi |
IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA) |
| GNSS |
|
| GNSS |
GPS, GLONASS, BeiDou, Galileo, QZSS |
| Bluetooth |
|
| Bluetooth |
4.0 (Low energy) |
| Inputs/Outputs |
|
| Inputs/Outputs |
On 4pin socket: 1 x Digital input, 1 x Digital open collector output |
| Other Interfaces |
|
| Other |
1 x USB host |
| Status LEDs |
|
| Status LEDs |
4 x WAN type, 2 x Connection type, 5 x Signal strength, 2 x WiFi, 8 x Ethernet, 1 x Power |
| Environmental Limits |
|
| Operating temperature |
-40 °C to 75 °C |
| Physical Characteristics |
|
| Housing |
Aluminium housing with DIN rail mounting option and grounding capability |
| Dimensions (W x H x D) |
115 x 44.2 x 95.1 mm |
| Weight |
456 g |
| Supported Frequencies |
|
| 4G (LTE-FDD) |
B1, B3, B5, B7, B8, B20, B28, B32 |
| 4G (LTE-TDD) |
B38, B40, B41 |
| 3G |
B1, B3, B5, B8 |
| SOFTWARE |
|
