| Ethernet |
|
| ETH |
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover |
| Fibre |
|
| Fibre |
2 x SFP ports |
| IEEE 802.3 Series Standards |
|
| Standards |
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az, 802.3z, 802.3ad |
| PoE Out |
|
| PoE+ Ports |
Port 1 - 8 |
| PoE Max Power per Port (at PSE) |
30 W |
| Total PoE Power Budget (at PSE) |
240 W |
| Maximum Ethernet Cable Length |
100 m |
| Services |
|
| EtherNet/IP |
Yes |
| SNMP V2, V3 |
Yes |
| LLDP |
Yes |
| Network Management |
|
| Network Management |
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN |
| Network |
|
| MRP |
MRP client role, MRP manager role |
| Port Aggregation |
802.3ad (LACP) |
| L2 Features |
Loop protection, Forwarding table, VLAN, STP/RSTP |
| DHCP |
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards |
| Multicast |
IGMP snooping, multicast querier support |
| Port Settings |
Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring |
| L3 Features |
|
| L3 Features |
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address |
| Routing |
Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP) |
| Security |
|
| Authentication |
PAM — preshared key, Radius & TACACS+, IP & login attempts block |
| MAC Filtering Support |
Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the
port if an unauthorized MAC address is detected
|
| QoS |
|
| QoS |
Port priority, DSCP priority, 802.1p priority, TOS |
| Scheduling Method |
SP/WFQ/WRR |
| Bandwidth Control |
Rate limiting, storm control |
| Traffic Shaper |
Port-based shaping |
| System Characteristics |
|
| RAM |
128MB, DDR3 |
| Flash Storage |
16 MB serial flash |
| Firmware Customisation |
|
| Operating System |
TSWOS (OpenWrt based Linux OS) |
| Supported Languages |
Busybox shell, Lua, C, C++ |
| Development Tools |
SDK package with build environment provided |
| Performance Specifications |
|
| Bandwidth (Non-blocking) |
20 Gbps |
| Forwarding Rate |
14.88 Mpps |
| Packet Buffer |
512 KB |
| MAC Address Table Size |
8K entries |
| Jumbo Frame Support |
10000 bytes |

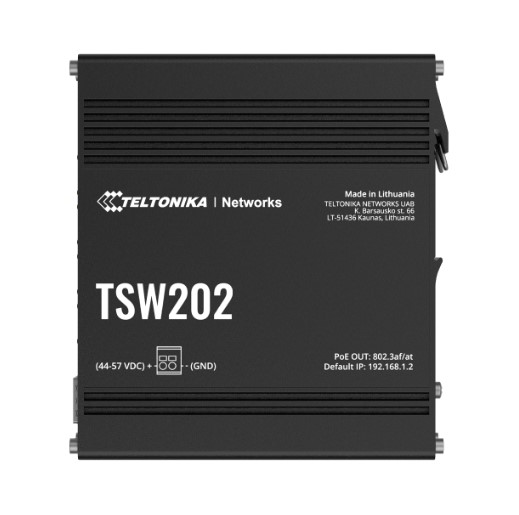

| Power |
|
| Connector |
2-pin industrial DC power socket |
| Input Voltage Range |
7 – 57 VDC |
| PoE-Out Input Voltage Range |
44 – 57 VDC |
| Power Consumption |
Idle: < 3 W / Max: 8 W / PoE Max: 248 W |
| Surge at AC Mains Power Port |
1kV Line to line; 2kV line to ground, 1.2/50us, IEC 61000-4-5 |
| Surge at Signal Port (Ethernet) |
1kV Line to Ground, 1.2/50us, IEC 61000-4-5 |

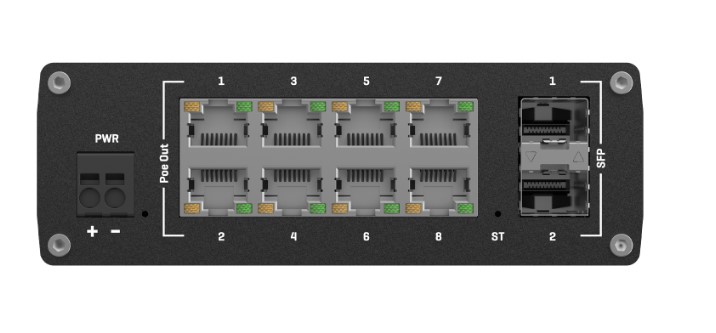

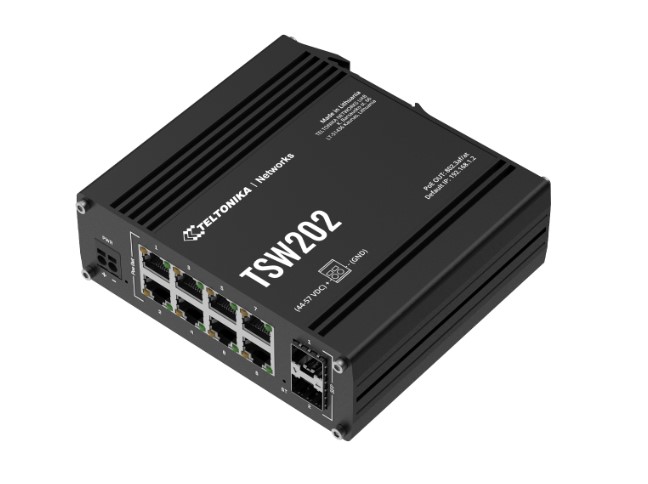

| Physical Interfaces |
|
| Ethernet |
Surge at signal port (Ethernet): 1kV Line to Ground, 1.2/50us, IEC 61000-4-5 |
| Fibre |
2 x SFP ports |
| Status LEDs |
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs |
| Power |
1 x 2-pin industrial DC power socket |

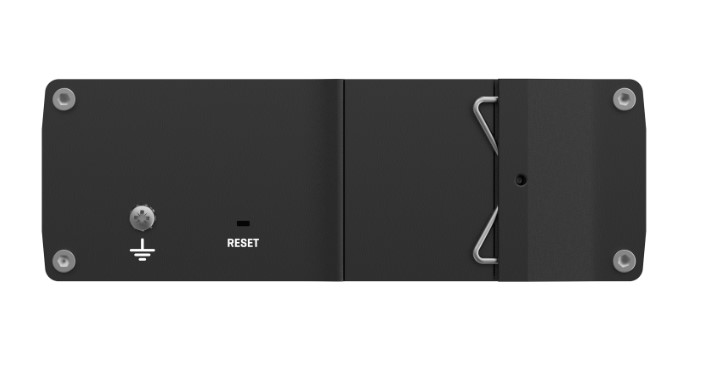

| Reset |
Software reset button |
| Other |
1 x Grounding screw |

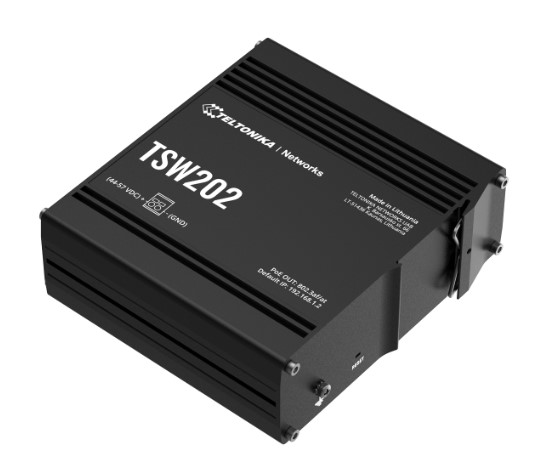

| Physical Specification |
|
| Casing Material |
Anodized aluminium housing and panels |
| Dimensions (W x H x D) |
132 x 44.2 x 122.2 mm |
| Weight |
610 g |
| Mounting Options |
Integrated DIN rail bracket; wall mount and flat surface (additional kit needed) |
| Operating Environment |
|
| Operating Temperature |
-40 °C to 75 °C |
| Operating Humidity |
5% to 95% non-condensing |
| Ingress Protection Rating |
IP30 |
