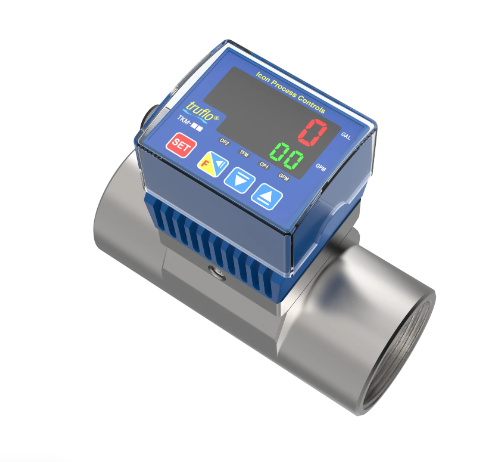

TK3M In Line Paddle Wheel Flow Meter Sensor Stainless Steel

Tired of guessing how much liquid moves through your pipe? The TK3M In Line Paddle Wheel Flow Meter Sensor Stainless Steel gives you exact flow data right where the fluid travels. It fits inside the pipe and measures speed and volume without stopping the process. If you need reliable numbers to avoid waste, protect equipment, or meet regulatory limits, this sensor is the answer you have been looking for.

TK3M In Line Paddle Wheel Flow Meter Sensor Stainless Steel

Many small to medium plants struggle with inaccurate flow readings because traditional clamp-on meters slip or react slowly to changes. Inaccurate data can cause over-pumping, higher energy bills, and even damage to pumps. The TK3M meter sensor solves this by using a sturdy 316L stainless steel body and a precision paddle wheel that delivers 0.5 % accuracy across a wide range of speeds. Its NEMA 4X/IP66 enclosure keeps the electronics safe from water, dust, and chemicals, so you get steady, trustworthy data every day.

Usages of TK3M

The TK3M works in water treatment plants, chemical dosing lines, HVAC cooling loops, and food-grade processing where sanitary metal is required. It can be installed on -inch to 4-inch pipe sizes using NPT or flanged connections, making it ideal for new builds or retrofits. Use it to monitor raw water intake, control dosing pumps, verify coolant flow, or track batch volumes in a brewery. The 4-20 mA output and NPN pulse let you link the meter to PLCs, SCADA systems, or handheld displays for real-time control.

Benefits

• Accurate measurement reduces waste and saves energy.
• Durable stainless steel body resists corrosion for long service life.
• Simple wiring with 5-wire color-coded cable speeds installation.

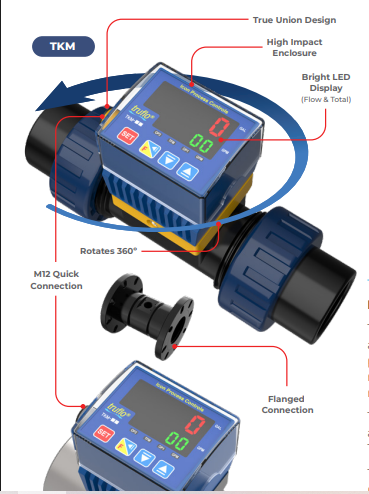

• Rotatable 360 LED display shows flow rate and total instantly.
• Wide temperature and pressure range lets you use it in harsh environments.

Key Features

• Accuracy 0.5 % of full scale.
• Repeatability 0.5 % of full scale.
• Flow velocity range 0.3-33 ft/s (0.1-10 m/s).
• Viscosity range 0.5-20 cSt.
• Body made of 316L stainless steel.
• Paddle wheel constructed from ETFE (Tefzel) for chemical resistance.
• Pin and bushing of zirconium ceramic for wear resistance.
• Standard FKM (Viton) O-ring sealing.
• Power supply 9-30 VDC with 4-20 mA + NPN pulse output.
• NEMA 4X/IP66 enclosure rating for dust and water protection.

Specifications
