Upgrade to a Super-Fast, Futuristic Network

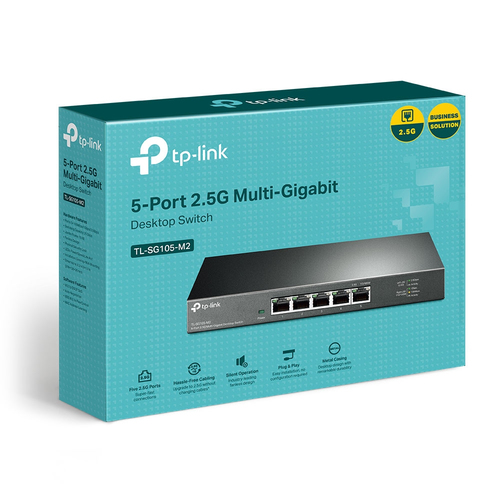

5/8-Port 2.5G Desktop Switch
TL-SG105-M2/ TL-SG108-M2
Unlock the Highest Performance of
2.5G Multi-Gig Bandwidth and Devices
As the flagship 2.5G products, the 5/8-Port desktop switches with 5/8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices, and provide up to 25/40 Gbps of switching capacity. Auto-negotiation 3-speed (100Mb/1G/2.5G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, 2.5G WiFi 6 AP, 4K video, desktop, and more.
Powerful Performance for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!
Ideal for Small and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.
2.5G Super-Fast Speeds
without Changing Cables
Flawlessly integrated into existing gigabit Ethernet network infrastructures, 2.5× faster speeds* with regular Cat5e Ethernet cables, without the need to upgrade to Cat6 wiring, reducing wiring costs and hassle.

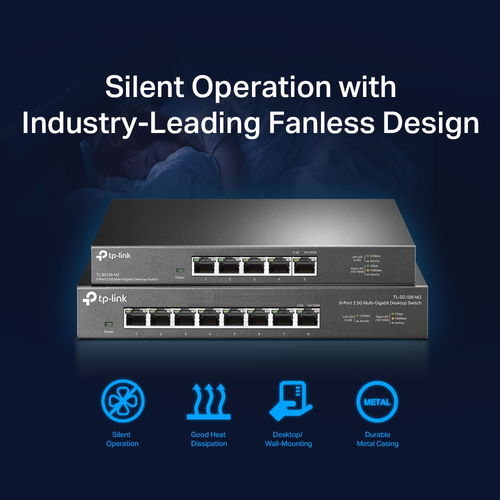

Silent Operation with
Industry-Leading Fanless Design
The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.
Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Specifications
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| 2.5G Ethernet (copper) ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
2.5G Ethernet (100/1000/2500) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Data transmission |
| Packet buffer memory |
1.5 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
18.6 Mpps |
| Switching capacity |
25 Gbit/s |
| MAC address table |
16000 entries |
| Design |
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
No |
| Power |
| Power consumption (max) |
12.11 W |
| Input voltage |
12 V |
| Input current |
1 A |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
41.32 BTU/h |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Height |
26 mm |
| Depth |
126 mm |
| Width |
209 mm |
| Packaging content |
| Quick start guide |
Yes |
| Cables included |
LAN (RJ-45) |
| Packaging data |
| Package weight |
870 g |
| Package height |
70 mm |
| Package depth |
315 mm |
| Package width |
240 mm |
| Certificates |
| Certification |
CE, FCC ,RoHS |
