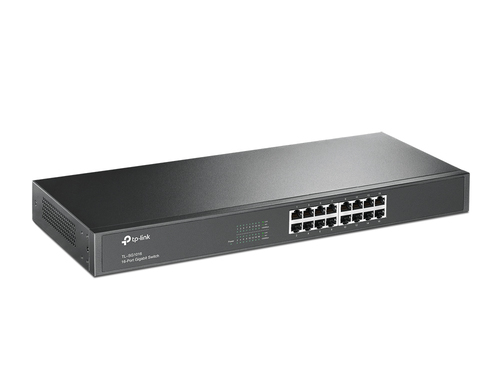

What This Product Does
The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption, making it an eco-friendly solution for your business network.
TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Network |
| VLAN support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Ethernet LAN data rates |
10,100,480,800,1000 Mbit/s |
| Flow control support |
Yes |
| Head-of-line (HOL) blocking |
Yes |
| Full duplex |
Yes |
| IP routing |
Yes |
| Policy-based routing |
Yes |
| Port mirroring |
Yes |
| Cable types supported |
Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards |
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
23.8 Mpps |
| Switching capacity |
32 Gbit/s |
| MAC address table |
8000 entries |
| Security |
| Password protection |
Yes |
| Security algorithms |
802.1x RADIUS |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| DHCP features |
DHCP client, DHCP server, DHCP snooping |
| Design |
| LED indicators |
Activity, Link, Power |
| Product colour |
Black |
| Form factor |
1U |
| Rack mounting |
Yes |
| Performance |
| Fanless |
Yes |
| Power |
| Power consumption (max) |
10.44 W |
| Power consumption (typical) |
9.26 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Heat dissipation |
35.6 BTU/h |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Height |
44 mm |
| Depth |
180 mm |
| Width |
440 mm |
| Packaging content |
| Rack mount kit |
Yes |
| Cables included |
AC |
| Certificates |
| Certification |
FCC, CE, RoHS |
