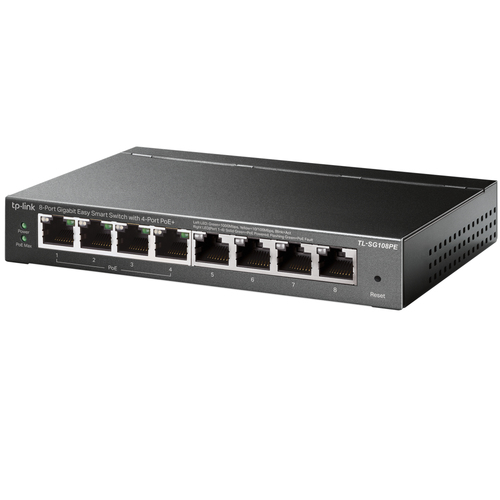

he TL-SG108PE is an 8-port Gigabit Easy Smart Switch with 4 PoE ports, represents a powerful upgrade from an unmanaged switch. It is designed specically for small businesses that require simple network management and PoE function. The TL-SG108PE can connect and power up to four PoE devices, such as wireless access points (APs), IP cameras, and IP phones. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. Additionally, with port-based, tag-based and MTU VLAN, TL-SG108PE can improve security and meet more network segmentation requirements.
Power Over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (port 1 to port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Effective Management
TL-SG108PE offers network monitoring for users to observe trafc behavior. Through its web-based user interface and management utility, the TL-SG108PE offers a variety of useful features, including network monitoring, trafc prioritization, and enhanced QoS. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG108PE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the trafc based on Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG108PE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG108PE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.
Easy to Use
TL-SG108PE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.
Specifications
| Management features |
| Switch layer |
L2 |
| Switch type |
Managed |
| Ports & interfaces |
| Installed SFP+ modules quantity |
0 |
| Installed SFP modules quantity |
0 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Number of VLANs |
32 |
| VLAN support |
Yes |
| Broadcast storm control |
Yes |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
1.5 MB |
| Packet forwarding rate (1 Gbps) |
11900000 pps |
| Jumbo frames |
15000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Switching capacity |
16 Gbit/s |
| MAC address table |
4000 entries |
| Security |
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| Design |
| LED indicators |
Activity, Link, PoE, Power, Speed, Status |
| Product colour |
Black |
| Rack mounting |
No |
| Power |
| Power consumption (max) |
65.2 W |
| Input current |
1.25 A |
| AC input frequency |
50 Hz |
| AC input voltage |
220 V |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
55 W |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Height |
25 mm |
| Depth |
101 mm |
| Width |
158 mm |
| Packaging content |
| User guide |
Yes |
| Cables included |
AC |
| Packaging data |
| Package type |
Box |
| Certificates |
| Certification |
FCC, CE, RoHS |
