PoE Switches for Your Ultra Convenience
10-Port Gigabit Desktop Switch with 8-Port PoE+

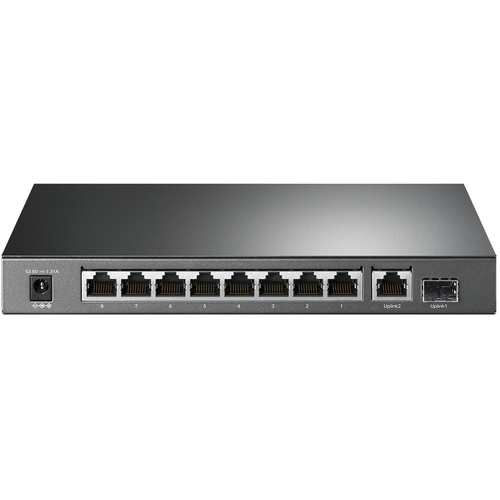

TL-SG1210P
Surveillance
Work with IP Cameras
Conference Call
Work with IP Phones
Wi-Fi Coverage
Work with Omada EAPs
Easy to Use
Power over Ethernet
Port 1-8 of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).
Intelligent Power Management
When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.
Advanced Functions for Higher Performance
Qos
For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP
Snooping
Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Sturdy Metal Casing
Sturdy, compact metal casing, with desktop/wall-mounting design, to meet your needs in any environment. Besides, fanless design ensures quiet operation.
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
| SFP module slots quantity |
1 |
| Gigabit Ethernet (copper) ports quantity |
9 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| MAC address auto-aging supported |
Yes |
| MAC address auto-learning supported |
Yes |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Optical fiber |
| Fiber type |
Single-mode |
| Fiber ethernet cabling technology |
1000BASE-X |
| Data transmission |
| Store-and-forward |
Yes |
| Switching capacity |
20 Gbit/s |
| MAC address table |
4000 entries |
| Security |
| IGMP snooping |
Yes |
| Design |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Grey |
| Performance |
| Fanless |
Yes |
| Power |
| Power consumption (max) |
78.13 W |
| Power consumption (typical) |
7.11 W |
| Input current |
1.31 A |
| DC input voltage |
53.5 V |
| Power supply included |
No |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
63 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Heat dissipation |
266.42 BTU/h |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Height |
26 mm |
| Depth |
126 mm |
| Width |
209 mm |
| Packaging content |
| Manual |
Yes |
| User guide |
Yes |
| Quick start guide |
Yes |
| Cables included |
AC |
| Certificates |
| Certification |
CE, FCC, RoHS |
