Futuristic Networking with Lightning-Fast 10G Connections
5-Port 10G Desktop Switch
Unlock the Highest Performance of
10G/Multi-Gig Bandwidth and Devices

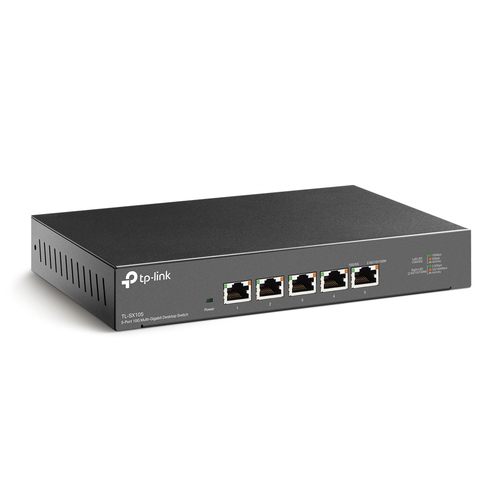

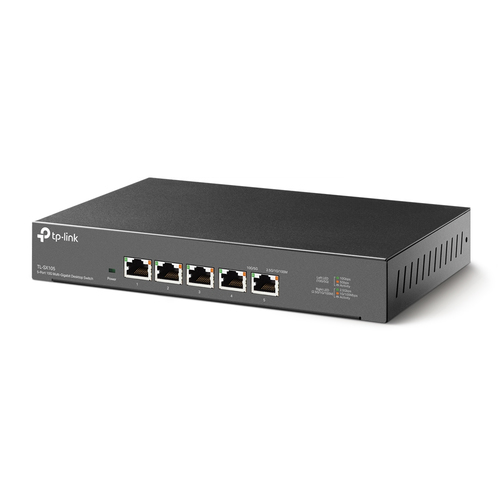

As the flagship 10G product, TL-SX105 is a 5-port 10G desktop switch, providing up to 100 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.
Ready for Immediate Network Upgrading to 10G?
Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.
LAN Party
Never host a laggy LAN party again. Experience the unparalleled speed and let the game run smoothly.
Home Entertainment
Enjoy a fun game time and 8K videos with friends and family, without having to ever worry about buffering again.
Small and Home Offices
Work at office or home with lightning-fast connections to workstations and WiFi 6 access points.
Instant Transfer for Workstations
Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.
Built for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!
Ideal for Home Entertainment
Enjoy Buffer-Free 8K Videos
Enjoy buffer-free multi-channel 8K videos with friends and family for movie nights with maximum entertainment.
More 10GE LAN Ports for WiFi 6 Networking
Expand the 10GE LAN ports of your WiFi 6 routers and connect more devices—all running at max 10 Gbps.
Lightning-Fast Connections for Business and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.
Silent Operation with
Industry-Leading Fanless Design
The revolutionary fanless design ensures unprecedented silent operation, ideal for any home or business. Durable metal casing, desktop/wall-mounting design and professional heat dissipation design are well-suited for different environments.

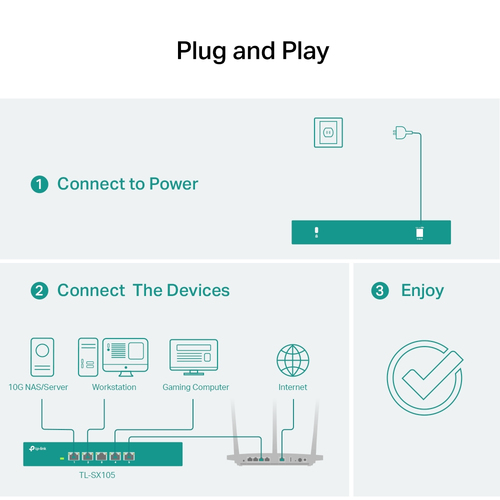

Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Flexible Deployment Options
The versatile mounting system gives you the flexibility to place the 10G switch on a desktop or mount it to a wall.
Same Cables, New Speed
Designed to integrate flawlessly into existing gigabit Ethernet network infrastructures, guaranteeing speeds 5× faster§ using standard Cat5e Ethernet cables—no Cat6 wiring needed. With Cat6a or higher rated cables, 10G connections are built up to 100 meters (328 feet).
Specifications
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| 10G Ethernet (copper) ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
16 MB |
| Jumbo frames |
10000 |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Forwarding rate |
74.4 Mpps |
| Switching capacity |
100 Gbit/s |
| MAC address table |
32000 entries |
| Design |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Product colour |
Black |
| Rack mounting |
No |
| Performance |
| Fanless |
Yes |
| Power |
| Power consumption (max) |
21.4 W |
| Input voltage |
12 V |
| Input current |
2 A |
| Power supply included |
Yes |
| Power source |
DC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
| Height |
35 mm |
| Depth |
131 mm |
| Width |
226 mm |
| Packaging content |
| Manual |
Yes |
| Cables included |
AC |
| Packaging data |
| Package weight |
1.58 kg |
| Package height |
70 mm |
| Package depth |
315 mm |
| Package width |
240 mm |
| Package type |
Box |
| Certificates |
| Certification |
CE, FCC ,RoHS |
