Imagine a control screen that never quits, even in a dusty factory or a cold warehouse. The TPC-315 EHL 15 Inch Industrial Touch Panel PC with Intel Atom Processor is built for that exact need. It gives you a reliable, rugged interface for machines, kiosks, and monitoring stations. If your current PC freezes, cracks, or cant handle harsh weather, you lose time and money. This EHL panel solves those problems so you can keep production moving.

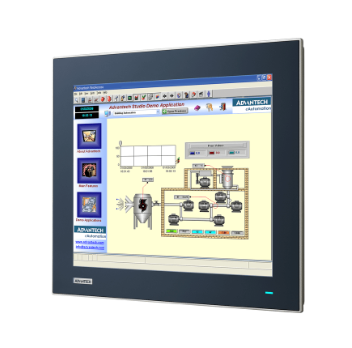

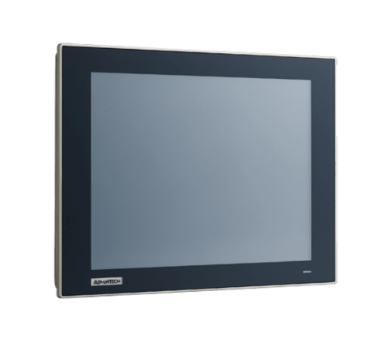

ADVANTECH TPC-315 EHL 15 Inch Industrial Touch Panel PC with Intel Atom Processor
Many industrial users struggle with consumer-grade computers that cant survive vibration, extreme temperatures, or water spray. When a device fails, the whole line can stop, causing costly downtime. The TPC-315 EHL Panel PC is designed to survive those conditions. Its die-cast aluminum case, IP66 front panel, and wide temperature range protect the hardware. At the same time, the Quad-Core Atom processor and 8 GB DDR4 memory give you smooth performance for data collection, graphics, and real-time control.
Usages of EHL
The TPC-315 EHL fits anywhere you need a tough touch screen. Use it as a human-machine interface on assembly lines, a monitoring panel for HVAC systems, a checkout kiosk in a busy retail store, or a command console for warehouse robots. It also works well in outdoor ticketing booths, medical equipment rooms, and transportation hubs where dust and moisture are common. The flexible mounting options let you stand it on a frame, wall-mount it, or attach it to a machine panel.
Benefits
- Rugged design keeps the system running in harsh environments, reducing unexpected shutdowns.
- Fast Quad-Core Atom CPU and 8 GB RAM handle multiple applications without lag.
- IP66 front panel protects against water and dust, perfect for outdoor or factory use.

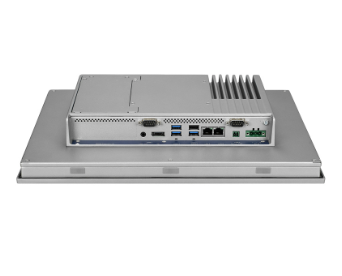

- Multiple I/O ports (USB, LAN, serial, DP) let you connect sensors, printers, and networks easily.
- Long backlight life (70,000 hrs) means the screen stays bright for years without replacement.
Key Features
- Intel Atom x6425E 2.0 GHz Quad-Core processor
- 8 GB DDR4 2666 MHz SO-DIMM memory
- 15-inch 1024 768 resistive touch display with 300 cd/m brightness
- Front panel rated IP66 for dust and water protection
- Operating temperature -20 C to 60 C, storage -30 C to 70 C
- Two 10/100/1000 Mbps Ethernet ports for reliable networking
- Three USB 3.2 ports and one USB 2.0 port for fast peripheral connections
- Serial options: RS-232 and RS-232/422/485 for legacy equipment
- Full-size mPCIe slot for future expansion
- Supports Windows 10 LTSC, Linux, and Android operating systems
Specifications
| Model |
TPC-315-RE23A |
| CPU |
Intel® Atom™ x6425E 2.0GHz Quad-Core |
| Memory |
1 x SO-DIMM with 8 GB DDR4 2666 MHz |
| Storage |
1 x M.2 B key 2242/2280 (SATA/ USB3.0); 3042/3052 (5G), 1 x 2.5” SSD/HDD bay |
| BIOS |
AMI UEFI |
| Display Size |
15" |
| Max. Resolution |
1024 x 768 |
| Luminance |
300 cd/m² |
| Viewing Angle |
176 / 176 |
| Backlight Life |
70,000 hrs |
| Touch Type |
5-wire resistive |
| USB Ports |
1 x USB 2.0, 3 x USB 3.2 |
| LAN |
2 x 10/100/1000 Mbps |
| Serial Ports |
1 x RS-232, 1 x RS-232/422/485 |
| Other I/O |
1 x iDoor slot, 1 x DP, Line-Out, Microphone |
| Expansion |
1 x Full-size mPCIe Slot |
| OS Support |
Microsoft® Windows 10 LTSC, Linux, Android |
| Power |
30 W @ 24 VDC |
| Dimensions |
383.2 x 307.3 x 67 mm |
| Enclosure |

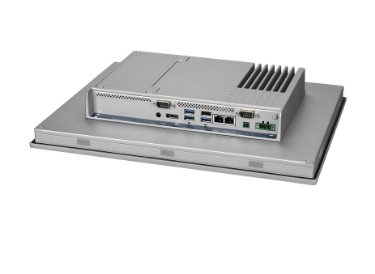

Die-cast aluminum alloy |
| Mounting |
Stand, Wall, VESA, Panel |
| Weight |
5.1 kg (11.2 lb) |
| IP Rating |
Front Panel IP66 |
| Operating Temp |
-20 ~ 60 °C (-4 ~ 140 °F) |
| Storage Temp |
-30 ~ 70 °C (-22 ~ 158 °F) |
| Certifications |
CB, UL, CE, FCC Class A, CCC, BSMI |
