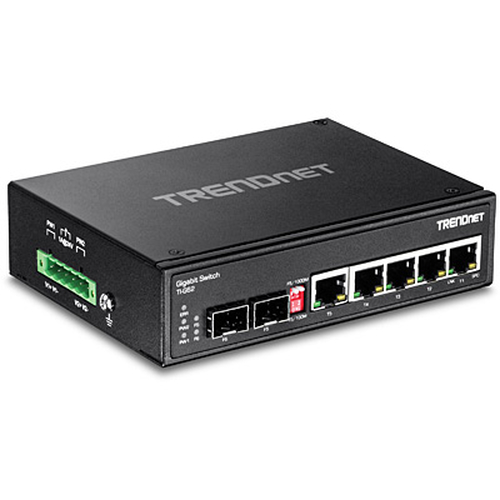

TRENDnet’s TI-G62 is a reliable IP30 unmanaged DIN-rail switch with hardened components rated for extreme industrial environments. It offers 5 Gigabit Ethernet ports, one shared SFP slot, one dedicated SFP slot, and a 12 Gbps switching capacity. DIP switches toggle between the shared Gigabit port and SFP slot and set supported throughput to either 100 Mbps or 1 Gbps. Dual redundant power inputs (power supply sold separately: TI-M6024) and a power failure alarm output trigger support zero downtime applications.
Specifications
| Management features |
| Switch layer |
L2 |
| Switch type |
Unmanaged |
| Ports & interfaces |
| SFP module slots quantity |
1 |
| Combo SFP ports quantity |
1 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Network |
| Flow control support |
Yes |
| Full duplex |
Yes |
| 10G support |
No |
| Networking standards |
IEEE 802.3u, IEEE 802.3x, IEEE 802.3, IEEE 802.3z, IEEE 802.3ab |
| Data transmission |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Switching capacity |
12 Gbit/s |
| MAC address table |
2048 entries |
| Design |
| International Protection (IP) code |
IP30 |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Performance |
| Mean time between failures (MTBF) |
510304 h |
| Buffer size |
1024 KB |
| Power |
| Power consumption (max) |
3.84 W |
| Redundant power supply (RPS) support |
Yes |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 75 °C |
| Operating temperature (T-T) |
-40 - 75 °C |
| Weight & dimensions |
| Weight |
514 g |
| Height |
36 mm |
| Depth |
104 mm |
| Width |
143 mm |
| Packaging content |
| Quick start guide |
No |
| Packaging data |
| Terminal block included |
Yes |
| Wall mounting kit |
Yes |
| Certificates |
| Certification |
FCC CE |
