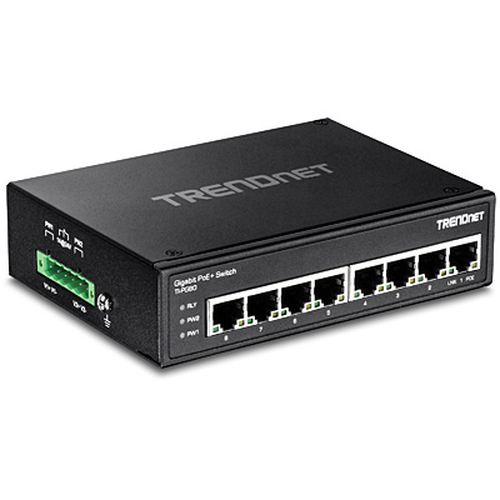

TRENDnet’s TI-PG80 is a reliable IP30 unmanaged PoE+ DIN-rail switch with hardened components rated for extreme industrial environments. It offers 8 Gigabit PoE+ ports (802.3at/802.3af) and a PoE power budget of up to 200 Watts. Dual redundant power inputs (power supply sold separately: TI-S24048) and a power failure alarm output trigger support zero downtime applications.
- 8 x Gigabit PoE+ Ethernet ports
- Up to a 200 Watt full PoE+ power budget
- 16 Gbps switching capacity
- Hardened IP30 rated metal switch

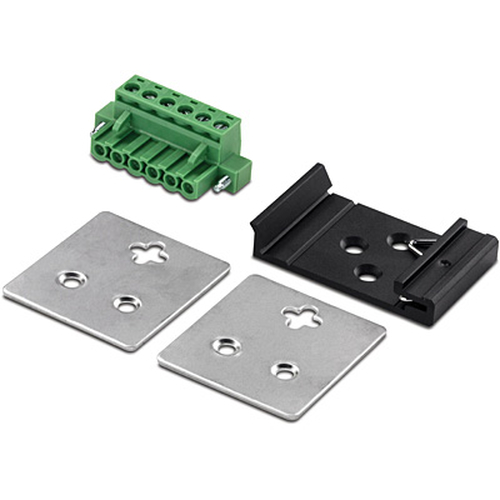

- Includes DIN-rail and wall mounts
- Extreme -40 to 75 ºC (-40 to 167 ºF) operating temperature range
- Dual redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Powers supply sold separately
Specifications
| Management features |
| Switch layer |
L2 |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Flow control support |
Yes |
| Full duplex |
Yes |
| Copper ethernet cabling technology |
1000BASE-T, 100BASE-TX, 10BASE-T |
| 10G support |
No |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
1 MB |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Throughput |
11.9 Mpps |
| Throughput |
11.9 Mpps |
| Switching capacity |
16 Gbit/s |
| MAC address table |
8000 entries |
| Design |
| International Protection (IP) code |
IP30 |
| Wall mountable |
Yes |
| LED indicators |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| Rack mounting |
No |
| Performance |
| Mean time between failures (MTBF) |
510304 h |
| Power |
| Power consumption (max) |
5.76 W |
| Redundant power supply (RPS) support |
Yes |
| Power over Ethernet (PoE) |
| Total Power over Ethernet (PoE) budget |
200 W |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Operating temperature (T-T) |
-40 - 75 °C |
| Operating temperature (T-T) |
-40 - 75 °C |
| Weight & dimensions |
| Weight |
554 g |
| Height |
143 mm |
| Depth |
36 mm |
| Width |
104 mm |
| Packaging content |
| Quick start guide |
Yes |
| Packaging data |
| Wall mounting kit |
Yes |
| Certificates |
| Certification |
FCC, CE |
