Imagine a sudden power cut while you are caring for a patient or running critical lab equipment. The loss of power can damage devices, lose data, and put lives at risk. The Tripp Lite SMX1200XLHG 1kVA 750W Medical-Grade Tower UPS 230V gives you reliable battery backup and surge protection that meets hospital standards. It keeps your machines running long enough to finish a task or shut down safely.

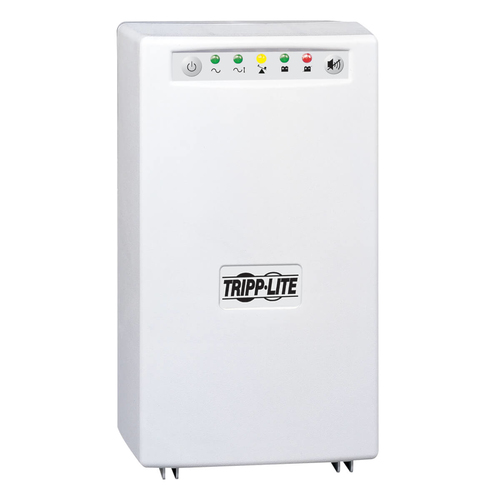

Tripp Lite SMX1200XLHG 1kVA 750W Medical-Grade Tower UPS 230V
Power interruptions in a medical setting can cause costly downtime and jeopardize patient safety. This problem matters because equipment like monitors, ventilators, and imaging devices must stay on without spikes or noise. The SMX1200XLHG solves the issue with a medical-grade UPS that follows UL 60601-1 rules, provides up to 27 minutes of backup at half load, and cleans the voltage before it reaches your devices.
Usages of Tripp
You can place this tower UPS in a patient care room to protect monitors and infusion pumps. It works well in a hospital IT closet to keep servers and networking gear online during short outages. Small clinics use it for diagnostic equipment such as ultrasound or ECG machines. Even a home health office can benefit when a laptop runs tele-medicine software that must not lose connection.
Benefits
- Provides clean, uninterrupted power for life-supporting devices.
- Stops data loss by allowing safe shutdown of computers.
- Reduces equipment wear caused by voltage spikes and noise.
- Meets strict medical safety certifications for peace of mind.
- Easy to install with six hospital-grade outlets and clear LEDs.
Key Features
- 1 kVA / 750 W capacity for moderate loads.
- 27.5 min backup at half load, 11 min at full load.
- Line-interactive voltage regulation from 155 V to 274 V.
- Built-in isolation transformer with Faraday shield.

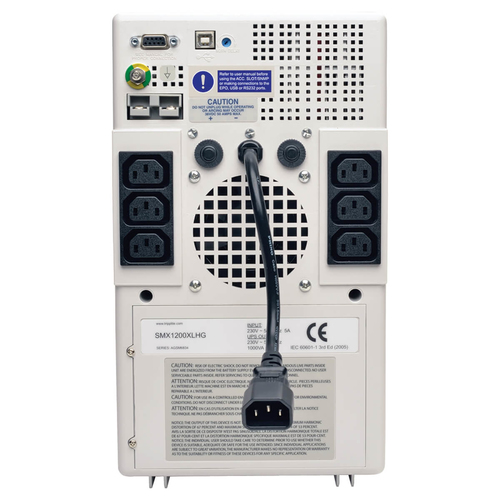

- Six IEC-320 C13 hospital-grade outlets with 340 J surge protection.
- USB and DB9 ports for automated shutdown via PowerAlert software.
- Hot-swap lead-acid battery for quick replacement.
- Audible alarm alerts you to power events.
- LED indicators show status at a glance.
- White tower design fits most clinical environments.
Specifications
| Features |
| Audible alarm(s) |
Yes |
| Power protection features |
Over voltage, Under voltage |
| Surge protection |
Yes |
| EMI/RFI noise filtering |
Yes |
| EMI/RFI noise filtering |
Yes |
| Surge energy rating |
340 J |
| Maximum current |
10 A |
| Output operation voltage (max) |
230 V |
| Output operation voltage (min) |
230 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
230 V |
| Input operation voltage (min) |
230 V |
| Output power |
750 W |
| Output power capacity |
1 kVA |
| Ports & interfaces |
| AC outlets quantity |
6 AC outlet(s) |
| Power plug |
C14 coupler |
| AC outlet types |
C13 coupler |
| Battery |
| Cold start |
Yes |
| Hot-swap battery |
Yes |
| Battery recharge time |
4.5 h |
| Typical backup time at half load |
27.5 min |
| Typical backup time at full load |
11 min |
| Design |
| LED indicators |
Yes |
| Product colour |
White |
| Form factor |
Tower |
| Operational conditions |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage temperature (T-T) |
-15 - 50 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
| Certification |
CE, IEC 60601-1 |
| Weight & dimensions |
| Weight |
20.6 kg |
| Height |
323 mm |
| Depth |
231 mm |
| Width |
190.5 mm |
| Packaging data |
| Package weight |
22.1 kg |
| Package height |
469.9 mm |
| Package depth |
339.9 mm |
| Package width |
309.9 mm |
| Other features |
| Operating temperature (T-T) |
0 - 40 °C |
| Interface |
USB; DB9 |
