Running a small shop or a warehouse often means you need clear, fast labels for products, shipments, and inventory. Without a reliable printer, you waste time hand-writing or using a slow machine that jams. The TSC TDP-247 solves this by giving you quick, crisp labels from a compact desktop unit. It removes the bottleneck and lets you focus on serving customers.

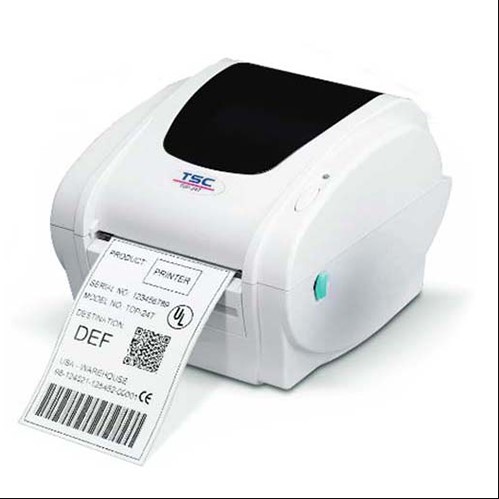

TSC TDP-247, 203 dpi (8 dots/mm) Direct Thermal Desktop Label Printer
Print perfect labels in seconds with the TSC TDP-247. This is a direct thermal desktop printer that creates high-resolution (203 dpi) labels without ink or toner. Small businesses, retail counters, and logistics teams need reliable labeling to keep shelves organized and shipments accurate. The TSC printer delivers speed, durability, and easy connectivity so you never miss a scan or a shipment deadline.
Key Features
- Resolution 203 dpi (8 dots/mm) for sharp text and barcodes.
- Direct thermal only, no ribbons or toner needed.
- Print speed up to 7 ips (178 mm/s) for high volume.
- Maximum print width 4.25 in (108 mm) and length 90 in.
- 8 MB SDRAM and 4 MB flash for smooth operation.
- SD card slot supports up to 4 GB for extra storage.
- Standalone keyboard for independent label creation.
Specifications
| Resolution |
203 dpi (8 dots/mm) |
| Print Method |
Direct thermal only |
| Display |
LED with buttons |
| Hardwire Connectivity |
Ethernet
Parallel port
Serial RS-232
USB
|
| Enterprise Printer Management |
TSC Console |
| Type |
Desktop |
| Max. Print Speed |
Up to 7 ips (178 mm/s) |
| Max. Print Width |
4.25" (108 mm) |
| Max. Print Length |
90" (2.286 mm) |
| RAM |
8 MB SDRAM |
| Flash |
4 MB |
| Expandable Flash |
SD memory card reader; up to 4 GB |
| Keyboard |
Standalone keyboard |
| Optional Cutter |
Guillotine cutter (full-cut or partial-cut) |
| Media Specifications |
|
| Internal Label Capacity |
5" (127 mm) OD |
| Max. Media Width |
0.78" - 4.4" (20 - 112 mm) |
| Media Type |
Continuous; Die-Cut; Black Mark; Fan-Fold; Notched (Outside Wound) |
| Media Core Diameter |
1" - 3" (25.4 - 76.2 mm) |
| Construction |
Clamshell with double-walled plastic |
| Programming Languages |
TSPL-EZD |
