Youre juggling dozens of cameras, Wi-Fi APs and VoIP phones, and a single overloaded switch is dropping connections just when you need them most. Ubiquiti makes the chaos disappear by delivering power and high-speed data over one compact rack unit. The solution gives you 48 PoE ports, 10 Gbps backbone, and full management so every device stays online and fast.

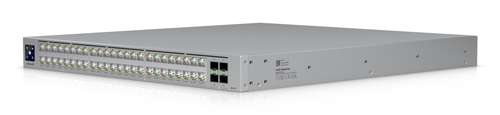

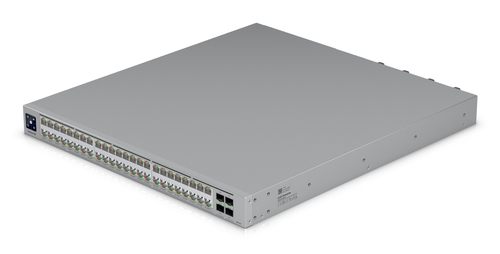

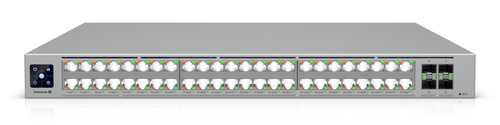

Ubiquiti UniFi ECS-48-PoE, Managed, 10G Ethernet PoE Rack mounting 1U Switch
This 1U managed switch is built for small-to-medium enterprises that need reliable power-over-Ethernet and high-capacity routing in a rack. It fits standard 19-inch racks, includes redundant fans and power supplies, and lets you control traffic with VLANs and QoS.
Benefits
- Keeps your network fast even during peak traffic
- Powers cameras, APs, and phones from a single switch
- Ubiquiti hardware ensures reliable PoE delivery
- Lets you separate voice, video, and data with VLANs
- Protects against storms and loops for stable uptime
- Scales easily as you add more devices
Features
- 48 RJ45 ports up to 10G each
- 16 ports support 2.5G speeds
- 4 SFP28 uplink modules
- 32 10G copper ports
- 2150W PoE budget total
- 90W per PoE++ port
- Redundant 2x 2400W power supplies
- 4 fans with redundancy
Specifications
| Management features |
|
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L2/L3 |
| Switch type |
Managed |
| Ports & interfaces |
|
| Power connector |
AC-in jack |
| SFP28 ports quantity |
4 |
| SFP module slots quantity |
4 |
| 10G Ethernet (copper) ports quantity |
32 |
| 2.5G Ethernet (copper) ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
10G Ethernet (100/1000/10000) |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Network |
|
| Number of VLANs |
1000 |
| Virtual LAN features |
Voice VLAN |
| VLAN support |
Yes |
| Broadcast storm control |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500,5000,10000 Mbit/s |
| Flow control support |
Yes |
| IPv4 routes |
256000 |
| Link aggregation |
Yes |
| Rate limiting |
Yes |
| Port mirroring |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1x, IEEE 802.3bt |
| Data transmission |
|
| Packet buffer memory |
8 MB |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
684 Mpps |
| Throughput |
460 Gbit/s |
| Throughput |
460 Gbit/s |
| Switching capacity |
920 Gbit/s |
| MAC address table |
128000 entries |
| Security |
|
| Loop protection |
Yes |
| IGMP snooping |
Yes |
| DHCP features |
DHCP guarding, DHCP relay, DHCP snooping |
| Multicast features |
|
| Multicast support |
Yes |
| Design |
|
| Display type |
LCM |
| Number of fans |
4 fan(s) |
| Redundant fans support |
Yes |
| LED indicators |
Activity, Link, Status |
| Reset button |
Yes |
| Housing material |
SGCC |
| Product colour |
Grey |
| Form factor |
1U |

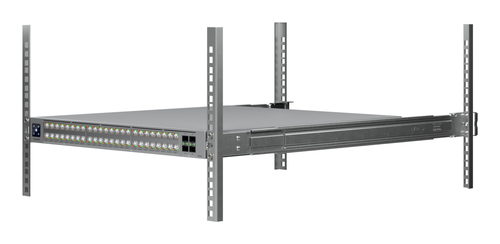

| Rack mounting |
Yes |
| Power |
|
| Power consumption (max) |
2400 W |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 - 240 V |
| Number of power supply units |
2 |
| Redundant power supply (RPS) support |
Yes |
| Power supply included |
Yes |
| Power source |
AC |
| Power over Ethernet (PoE) |
|
| Total Power over Ethernet (PoE) budget |
2150 W |
| Power over Ethernet (PoE) power per port |
90 W |
| Power over Ethernet (PoE) type supported |
PoE+, PoE++ (4PPoE) |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
|
| Operating temperature (T-T) |
-5 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
-5 - 40 °C |
| Weight & dimensions |
|
| Weight |
9.46 kg |
| Height |
43.7 mm |
| Depth |
496 mm |
| Width |
442 mm |

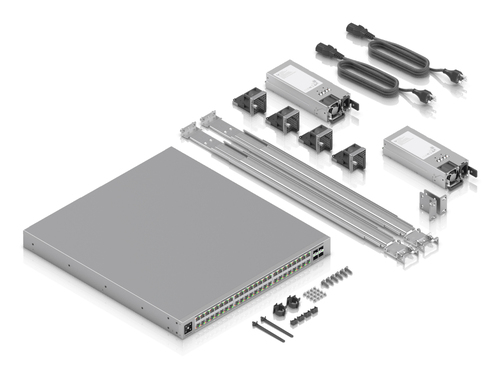

| Packaging content |
|
| Rack mount kit |
Yes |
| Cables included |
Power |
| Packaging data |
|
| Mounting brackets included |
Yes |
| Rack rails |
Yes |
| Certificates |
|
| Compliance certificates |
CE, Federal Communications Commission (FCC), Industry Canada (IC) |
