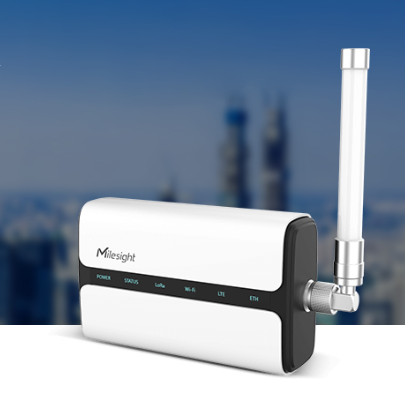

Milesight UG65 LoRaWAN Gateway 8 Channel IP65 4G LTE WiFi Industrial Gateway

Imagine a farm, a factory, or a city that can talk to every sensor without wires or dead spots. The UG65 does exactly that. It is an 8-channel LoRaWAN gateway built for tough outdoor sites. If you struggle with unreliable connections, limited range, or costly cabling, you need a device that bridges low-power sensors to the cloud quickly and securely.

Milesight UG65 LoRaWAN Gateway 8 Channel IP65 4G LTE WiFi Industrial Gateway

Many IoT projects fail because the gateway cannot survive rain, dust, or temperature swings. When a gateway drops, data stops and you lose insight. The UG65 solves this by offering IP65 protection, dual-band Wi-Fi, and optional 4G LTE backup. It keeps your network alive even in harsh weather, and it forwards data over Ethernet, Wi-Fi, or cellular so you stay connected wherever you are.

Usages of UG65

The UG65 fits in smart agriculture to collect soil moisture and weather data across large fields. In manufacturing it links machine sensors for predictive maintenance. City planners use it for air-quality monitors and street-light controls. It also works in remote oil-field sites where power is limited and cellular coverage is the only back-haul option.

Benefits

• Never lose data - automatic LTE failover keeps the link alive.
• Easy installation - plug-and-play ports and web UI reduce setup time.
• Wide coverage - eight channels and high sensitivity reach sensors far apart.
• Low power use - runs on 9-24 V, PoE, or USB-C, saving energy costs.
• Secure operation - firewalls, VPN, and WPA2 protect every transmission.

Key Features

• Quad-core 1.5 GHz ARM Cortex-A53 processor.
• 512 MB DDR4 RAM and 8 GB eMMC storage.
• Eight LoRaWAN channels (half/full-duplex) supporting global bands.
• -140 dBm sensitivity for long-range links.
• 27 dBm max Tx power for strong uplink.

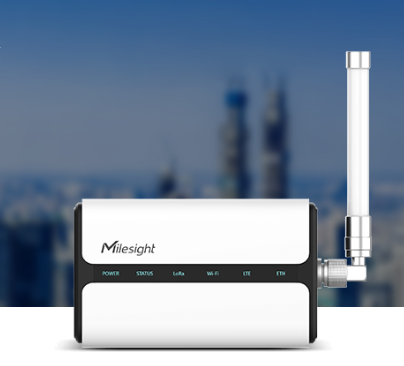

• IP65 enclosure protects against dust and water.
• Ethernet RJ45 with PoE, Wi-Fi 2.4 GHz, and optional 4G LTE.
• Built-in VPN (OpenVPN, WireGuard, IPsec) for secure remote access.
• Web, CLI, SNMP, MQTT and HTTP APIs for easy integration.
• FUOTA over-the-air updates keep firmware current without downtime.
• Temperature range -40 C to +70 C for outdoor deployment.

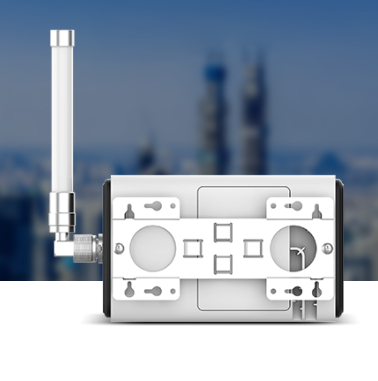

• Compact size 180 110 55.5 mm, weight 548 g for flexible mounting.
