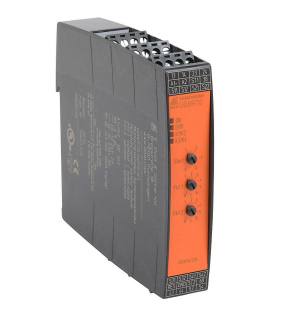

UG6970 Safety Relay 24VDC DIN Rail IP40 Industrial Protection Module

Imagine a factory line that stops the moment a person steps too close to a moving part. That safety comes from a reliable safety relay. The UG6970 is a compact safety relay that watches your machines and cuts power instantly when a fault is detected. If you have ever worried about unexpected shutdowns or costly downtime, this relay solves that problem for you.

UG6970 Safety Relay 24VDC DIN Rail IP40 Industrial Protection Module

Machines that run unattended can create serious hazards if a safety circuit fails. Operators need a device that guarantees a fast, reliable stop to protect people and equipment. The UG6970 relay provides that guarantee. It fits neatly on a DIN rail, works with a 24 VDC supply, and includes built-in short-circuit and over-voltage protection. In short, it turns a risky system into a safe one without extra wiring or complex setup.

Usages of UG6970

The UG6970 is ideal for CNC machines that need an emergency stop, conveyor belts that must halt when a guard opens, and packaging lines where light curtains protect operators. It also works well in robotic cells, lift systems, and any equipment that follows EN 60 000 safety standards. Wherever a quick, reliable power cut is required, this relay fits the job.

Benefits

• Fast response time keeps people safe and prevents damage.
• Simple DIN-rail mounting saves installation time.
• Long electrical and mechanical life reduces replacement costs.
• Integrated short-circuit and over-voltage protection adds extra security.
• Clear specifications make it easy to match with existing control panels.

Key Features

• Nominal voltage 24 VDC with 0.8-1.1 UN range.
• IP40 housing and IP20 terminals for dust protection.
• Operating temperature -15 C to +55 C.
• Minimum off-time 250 ms for safe reset.
• Electrical contact life over 150 000 cycles.
• Mechanical life exceeding 1 000 000 cycles.
• Independent normally-open contacts, two per function.
• Short-circuit protection using internal PTC.
• Over-voltage protection with built-in VDR.
• Thermal current rating up to 8 A.
• Compact DIN mount size 35 7.5 mm, weight 275 g.
• Certified to CSA, cULus, CE, RoHS, and TUV standards.
