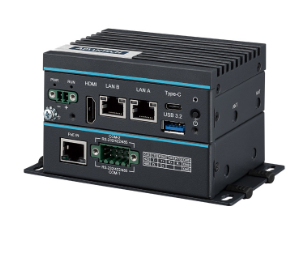

Advantech UNO-2271G V3 Edge IoT Gateway Intel Atom x7211RE 8GB 64GB eMMC

Imagine a factory floor where data from sensors never reaches the cloud fast enough. The UNO-2271G V3 Edge IoT Gateway Intel Atom x7211RE 8GB 64GB eMMC is built to bring that data to the edge, process it locally, and keep your operations running smoothly. If you struggle with latency, unreliable connections, or costly cloud bandwidth, this gateway gives you the power you need right at the source.

Advantech UNO-2271G V3 Edge IoT Gateway Intel Atom x7211RE 8GB 64GB eMMC

Many IoT projects fail because the central server cannot handle the flood of sensor data in real time. When data is delayed, decisions are delayed, and production can suffer. This industrial PC problem matters to anyone who needs instant insight, such as manufacturers, utilities, or retail chains. The UNO-2271G V3 solves the issue by processing data at the edge, reducing round-trip time, and lowering cloud costs. It supports Windows 11 LTSC and Linux, offers dual high-speed Ethernet, and fits into tight spaces with its compact aluminum case.

Benefits

• Fast local processing cuts latency and improves real-time control.
• Compact aluminum housing saves space and resists harsh environments.
• Flexible 10-30 VDC power input works with many industrial power supplies.
• Dual 2.5 Gbps Ethernet ports ensure reliable, high-speed network links.
• Easy integration with Windows or Linux simplifies deployment.

Usages

• Smart manufacturing lines that need instant feedback from machines.
• Remote monitoring stations for oil, gas, or water pipelines.
• Edge AI inference for video analytics in retail stores.
• Energy grid nodes that balance load based on local sensor data.
• Environmental stations that collect weather data in isolated locations.

Key Features

• Intel Atom x7211RE 3.2 GHz dual-core CPU.
• 8 GB DDR4 RAM for smooth multitasking.
• 64 GB eMMC storage for OS and applications.
• Intel UHD Graphics 620 for basic visual output.
• 2 10/100/1000/2500 Mbps Ethernet ports.
• 2 USB 3.2 ports for peripherals.

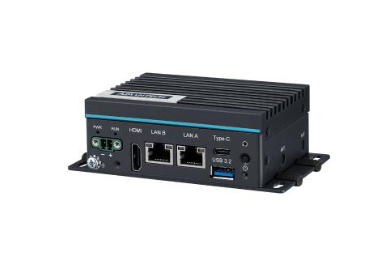

• 1 HDMI output for display connection.
• 1 M.2 B-key slot for future expansion.
• IP30 enclosure with aluminum housing.
• Operating temperature -20 C to 60 C, storage -40 C to 85 C.
• Power input 10-30 VDC via 2-pin terminal block.
• CE, FCC, UL, CCC, BSMI certifications for global compliance.
