Imagine a sudden power cut that shuts down your servers, your data disappears, and your business stops. The Vertiv Liebert GXT5 10kVA 10kW Online UPS 230V Rack Tower stops that from happening. It is a high-capacity uninterruptible power supply that keeps critical equipment running when the grid fails. If you cannot afford downtime, this UPS gives you the safety net you need.

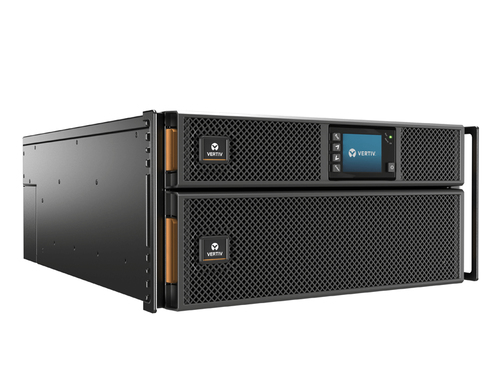

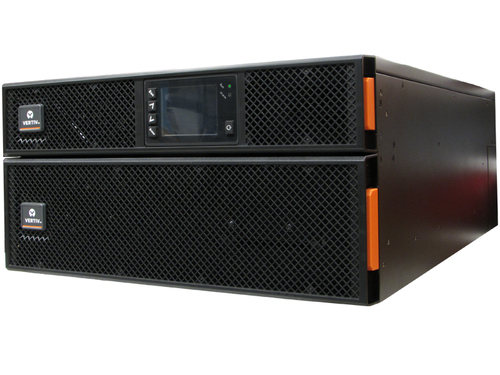

Vertiv Liebert GXT5 10kVA 10kW Online UPS 230V Rack Tower
Power spikes, brownouts, and total outages can damage hardware and cause data loss. For a data center or a small office, those events mean lost revenue and angry customers. The GXT5 UPS solves the problem by delivering clean, continuous power through double-conversion technology. It corrects voltage, frequency and waveform issues instantly, so your servers, networking gear and storage devices never see a bad surge. The result is reliable operation and peace of mind.
Usages of Vertiv
The UPS fits in a standard 5U rack or can stand as a tower, making it ideal for server rooms, telecom closets, and edge sites. Use it to protect servers, switches, routers, and storage arrays. It also works well for medical equipment, industrial control panels, and critical office workstations. Anywhere you need uninterrupted power for sensitive electronics, the GXT5 can be deployed.
Benefits
- Zero downtime during outages, keeping business running.
- Clean power prevents hardware wear and reduces maintenance costs.
- Remote monitoring lets you see status and alerts from any location.
- Scalable battery modules extend runtime for longer outages.
- Five-year warranty gives confidence in long-term reliability.
Key Features
- 10 kVA / 10 kW double-conversion online design.
- Unity power factor (1.0) for maximum load efficiency.
- 95 % efficiency in online mode.
- Active cooling with 55 dB noise level.
- Eight universal AC outlets (C13, C19, IEC-320, terminal).
- Built-in RDU101 card for remote management.

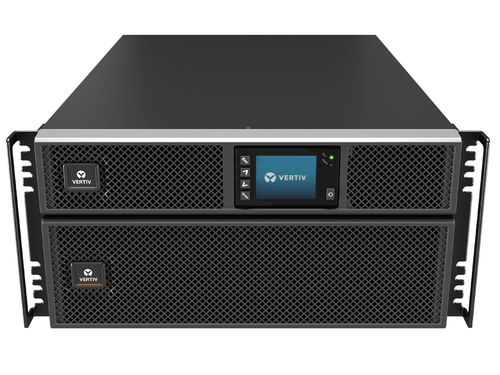

- Full-color LCD with gravity-sensing display.
- Hot-swap VRLA batteries, 16 units included.
- Scalable external battery cabinets for longer backup.
- Compliance with CE, RoHS, IEC62040-1 standards.
Specifications
| Features |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload |
| Noise level |
55 dB |
| Emergency Power Off (EPO) |
Yes |
| Output power factor |
1 |
| Input power factor |
0.99 |
| Power factor |
1 |
| Efficiency (On-line mode) |
95% |
| Efficiency |
95% |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
0 ms |
| Output voltage regulation |
3% |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
230 V |
| Input frequency |
40 - 70 Hz |
| Input operation voltage (max) |
288 V |
| Input operation voltage (min) |
176 V |
| Waveform |
Pure sine |
| Output power |
10000 W |
| Output power capacity |
10 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Serial interface |
Yes |
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| Power plug |
Terminal |
| AC outlet types |
C13 coupler, C19 coupler, IEC 320, Terminal |
| Battery |
| Battery capacity |
9 Ah |
| Hot-swap battery |
Yes |
| Charging current |
8 A |
| Typical backup time at half load |
7 min |
| Typical backup time at full load |
2 min |
| Number of batteries included |
16 pc(s) |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| International Protection (IP) code |
IP20 |
| Display type |
LCD |
| Cooling type |
Active |
| Rack capacity |
5U |
| Product colour |
Black |
| Form factor |
Rackmount/Tower |
| Certificates |
| Certification |
CE, EMI/EMC/C-Tick EMC, ESD |
| Compliance certificates |
RoHS |
| Packaging content |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Cables included |
USB cable |
| Batteries included |
Yes |
| Safety regulation & standards |
| Safety |
IEC62040-1:2008 |
| Weight & dimensions |
| Weight |
74.5 kg |
| Height |
217 mm |
| Depth |
630 mm |
| Width |
430 mm |
| Packaging data |
| Package weight |
93 kg |
| Package height |
520 mm |
| Package depth |
816 mm |
| Package width |
646 mm |
