WAVESHARE 5G/4G/3G Module for Jetson Orin, NSA SA, GNSS, Qualcomm X62

Developers who need fast, reliable cellular connectivity for Jetson Orin often face a missing link between the board and modern 5G networks. Without a proper module, projects can stall, data rates drop, and real-time AI tasks lose their edge. The WAVESHARE 5G/4G/3G Module for Jetson Orin, NSA SA, GNSS, Qualcomm X62 fills that gap. It gives you a single, compact solution that brings 5G, 4G and 3G together with precise GPS support, so your AI edge device can stay online and fast.

WAVESHARE 5G/4G/3G Module for Jetson Orin, NSA SA, GNSS, Qualcomm X62 with WAVESHARE

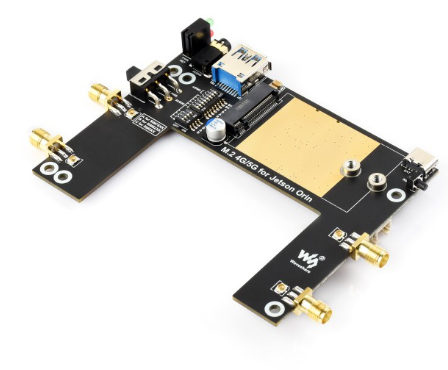

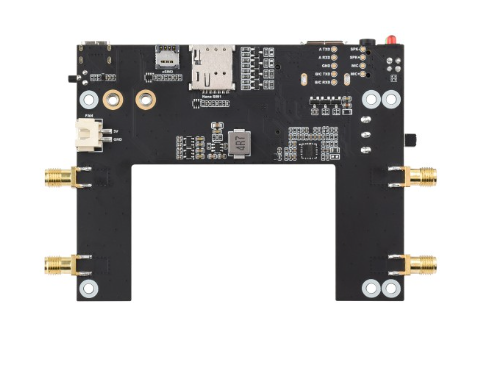

Imagine a module that plugs straight into your Jetson Orin and unlocks carrier-grade 5G speeds. This is the WAVESHARE module, built around the Qualcomm Snapdragon X62 chip. It is designed for developers who need to add cellular and satellite positioning to robots, drones, or smart cameras. If you struggle with slow LTE links or lack of GPS accuracy, this board gives you the speed of 5G and the reliability of multi-constellation GNSS in one package.

Usages

The module works well in autonomous robots that travel far from Wi-Fi. It fits into drones that need live video streams over 5G. It also serves smart cameras in remote sites where LTE is the only option. Edge servers that run AI inference can use the fast download speeds for cloud updates. Any Jetson Orin project that requires precise location data can benefit from the built-in GNSS support.

Benefits

• Instant 5G connectivity lets your AI models receive data without delay.
• Multi-band support works in most countries, so you can ship worldwide.
• Integrated GPS, GLONASS, Beidou, Galileo and QZSS give accurate positioning.
• Compact size saves board space and keeps your design lightweight.
• High download and upload speeds reduce bottlenecks for video and sensor streams.

Key Features

• 5G standard: 3GPP R16 for future-proof networks.
• Qualcomm Snapdragon X62 chip provides industry-leading performance.
• Global band coverage includes both SA and NSA 5G frequencies.
• Supports a wide range of LTE FDD and TDD bands for seamless fallback.
• WCDMA bands included for older network compatibility.
• GNSS support for GPS, GLONASS, Beidou, Galileo and QZSS.
• Sub-6G SA speed up to 2.5 Gbps downlink and 0.9 Gbps uplink.
• Sub-6G NSA speed up to 3.47 Gbps downlink and 460 Mbps uplink.
• LTE speed up to 1.6 Gbps downlink and 200 Mbps uplink.
• HSPA+ speed up to 42 Mbps downlink and 5.76 Mbps uplink.
• Dimensions 30 mm by 52 mm by 2.3 mm fit tight spaces.
• Designed for easy integration with Jetson Orin connectors.
