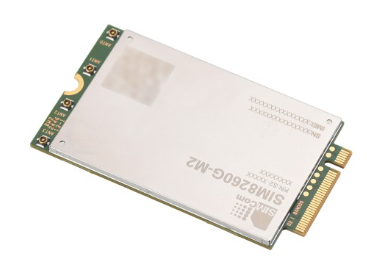

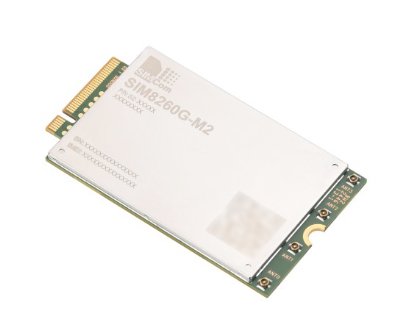

Waveshare SIM8260G-M2 5G Module Switch Qualcomm Snapdragon X62 M.2

Need lightning-fast wireless connectivity for your next IoT project? The Waveshare SIM8260G-M2 5G Module Switch Qualcomm Snapdragon X62 M.2 gives you Sub-6 G 5G speed in a tiny M.2 card. It solves the common problem of slow or unreliable cellular links that hold back remote sensors, video streams, and edge AI. With this module you get a reliable, high-bandwidth link that lets your device work anywhere, anytime.

Waveshare SIM8260G-M2 5G Module Switch Qualcomm Snapdragon X62 M.2

Many developers struggle with cellular boards that only support 4G or older chipsets. That limits data rates and adds latency, which can break real-time monitoring or live video. The problem matters because every second of delay can cost money, data loss, or safety risks. This Waveshare module pairs the powerful Snapdragon X62 with a compact M.2 form factor, delivering up to 3.47 Gbps downlink and seamless integration with Windows, Linux, or Android. It gives you the speed, band coverage, and flexibility you need to build future-proof solutions.

Benefits

• Ultra-fast 5G data lets video streams run without buffering.
• Broad band support (n1-n79) keeps you connected in most countries.
• Low power range (3.1 V-4.4 V) fits battery-operated edge devices.
• Six IPEX-4 connectors handle 5G, 4G, 3G, and GNSS all at once.
• Easy firmware upgrades via USB keep the module secure.

Usages

The module fits perfectly in CPE routers that need a fast backhaul for smart homes or offices. It also powers industrial gateways that collect sensor data from remote sites and send it to the cloud without delay. Live-streaming cameras, tele-medicine devices, and security systems benefit from the high-speed link and built-in GNSS for precise location tagging. Because it works with Windows, Linux, and Android, you can add it to any development board that has an M.2 slot.

Key Features

• 5G Sub-6 G standard (3GPP R16) for worldwide coverage.
• Qualcomm Snapdragon X62 chipset delivers top performance.

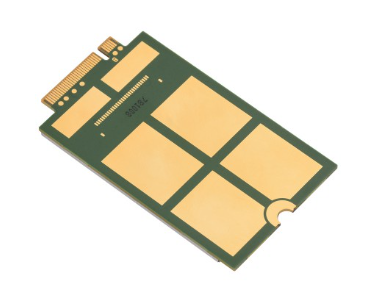

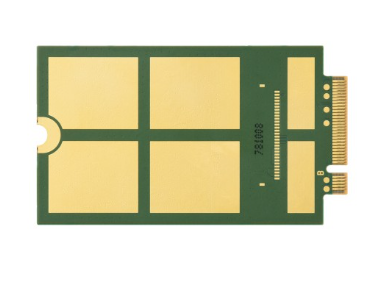

• M.2 form factor, 42 30 2.3 mm, easy to mount.
• Power supply 3.135 V - 4.4 V for flexible power design.
• Six IPEX-4 antenna connectors for 5G, 4G, 3G, and GNSS.
• Supports LTE-FDD, LTE-TDD, WCDMA, and multiple GNSS constellations.
• Downlink up to 3.47 Gbps, uplink up to 460 Mbps on 5G.
• Compatible with Windows, Linux, and Android operating systems.
• Full TCP/IP stack, IPv4/IPv6, HTTP/HTTPS, MQTT, SSL, and more.
• RNDIS, NDIS, PPP, MBIM dial-up options for easy host integration.
• Operating temperature -30 C to +70 C for harsh environments.
• Global frequency bands make it suitable for any region.
