WAVESHARE USB to LoRa Module SX1262 Long Range Data Transfe

Finding a reliable way to send data over many meters can be hard. Many hobbyists and engineers struggle with weak signals, high power use, and complex wiring. When the connection fails, projects stall and costs rise. The WAVESHARE USB to LoRa Module SX1262 Long Range Data Transfe solves these issues by turning a simple USB port into a powerful LoRa radio. It gives you clear, long-range communication without extra hardware, so you can focus on building instead of troubleshooting.

WAVESHARE USB to LoRa Module SX1262 Long Range Data Transfe with WAVESHARE

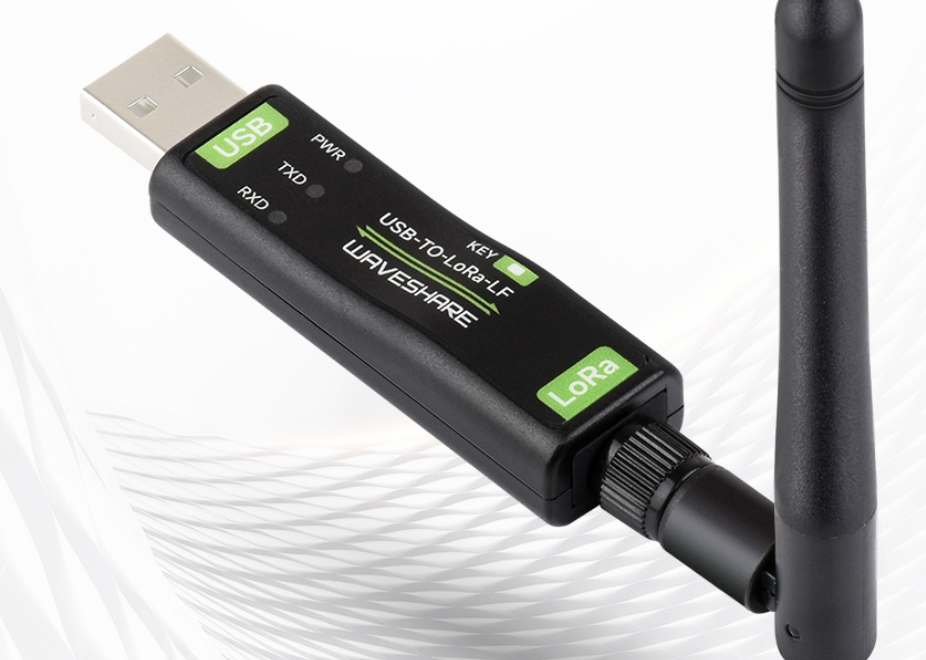

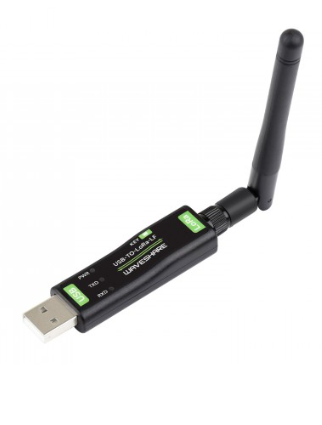

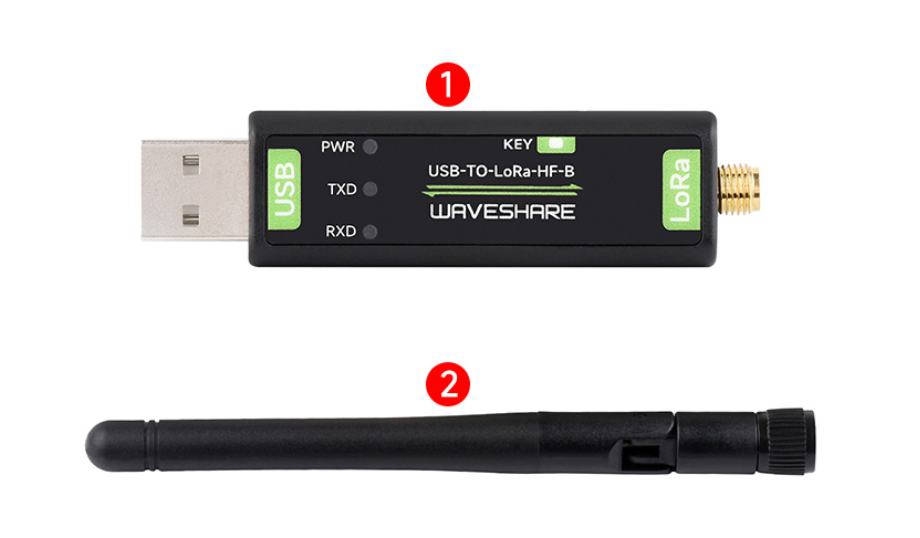

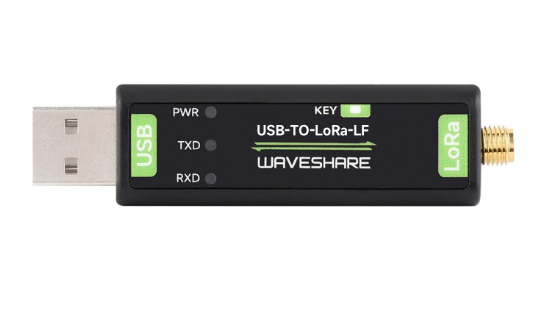

Imagine plugging a tiny device into your laptop and instantly getting a sub-GHz radio link that reaches several kilometers. This is what the WAVESHARE USB to LoRa Module does. It is a USB Type-A dongle that houses the SX1262 chip, an antenna connector, and an ABS case. Users who need to collect sensor data, control remote devices, or build mesh networks often lack a simple bridge between their PC and a LoRa network. This module fills that gap, offering secure AES-128 encryption and high-power transmission in a plug-and-play package.

Usages

The module works well in outdoor environmental monitoring, where weather stations send data back to a base computer. It is also ideal for smart-agriculture projects that need to read soil moisture sensors spread across a field. Hobbyists building DIY remote controls for drones or robots can use it to keep commands reliable over long distances. Finally, developers testing LoRaWAN applications can connect the dongle to a PC and run real-time experiments without building a custom board.

Benefits

• Long range up to several kilometers saves repeaters.
• Low power consumption extends battery life of remote nodes.
• Plug-and-play USB connection eliminates soldering.
• Built-in AES-128 encryption protects your data.
• Compact ABS case fits on any desk or test bench.

Key Features

• USB Type-A interface for easy PC connection.
• SX1262 chip supports 410-510 MHz and 850-930 MHz bands.
• Maximum transmit power of +22 dBm.
• Reception sensitivity down to -148 dBm.

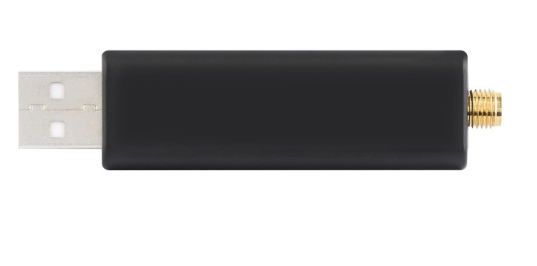

• SMA-KE female connector for 6 dBi omni-directional antenna.
• Baud rates from 1200 to 115200 bps.
• Supports none, odd, and even parity.
• 8- or 9-bit data frames.
• Operating temperature 0 C to 85 C (TCXO) and 0 C to 50 C (XTAL).
• Humidity tolerance from 5 % to 95 % relative humidity.
