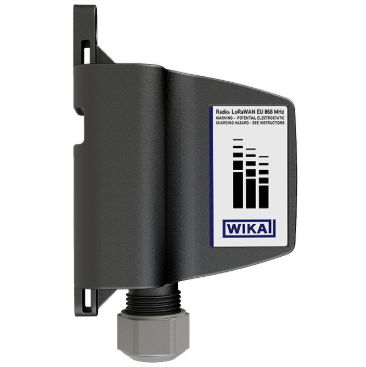

WIKA NETRIS 3 LoRaWAN Radio Unit for Hazardous Area Monitoring

When you work in a plant that handles gas or dust, a loss of sensor data can mean a safety breach, costly downtime, or even an accident. Operators need a way to collect measurements from hazardous zones without running long cables or exposing electronics to explosions. The WIKA NETRIS 3 LoRaWAN Radio Unit for Hazardous Area Monitoring gives you a wireless link that works inside ATEX-rated areas, sending data reliably over many kilometres. It removes the need for expensive wiring while keeping your monitoring system safe and compliant.

WIKA NETRIS 3 LoRaWAN Radio Unit for Hazardous Area Monitoring with WIKA

Imagine a sensor that can talk to your control room from a dangerous zone without any wires. That is what this radio unit does. It uses LoRa technology to carry temperature, pressure or gas-concentration data up to ten kilometres away. If you have missed readings because a cable failed, you will feel the relief of continuous, secure data flow. WIKAs wireless bridge proven expertise ensures the device meets the strict ATEX, IECEx and CSA standards for explosive atmospheres.

Usages

The radio unit can be attached directly to a pressure transmitter in a refinery, mounted on a wall near a dust collector, or linked to a temperature probe in a chemical storage tank. It works in oil-and-gas fields, mining shafts, wastewater treatment plants and any place where hazardous gases or fine dust are present. Because it runs on a long-life lithium thionyl chloride battery, you can install it in remote spots and forget about maintenance for years.

Benefits

• Wireless data eliminates costly and unsafe cable runs.
• Up to ten kilometres of range keeps you connected even in large sites.
• Battery life of up to ten years reduces service visits.
• Full end-to-end encryption protects critical process information.
• IP65 housing and certified explosion protection keep the unit safe in harsh environments.

Key Features

• LoRa radio standard, LoRaWAN 1.0.3 compliance.
• Transmission range ~10 km (free field, SF12).
• 14 dBm maximum output power.
• Internal antenna for compact design.
• Measurement intervals from 60 seconds to 48 hours.
• Bidirectional, full-stack encryption.
• 3 V DC supply from SAFT LM17500 potted battery.
• Angular or circular M12 1, 4-pin connector.
• IP65 protection, Grilamid TR 90 UV housing.
• ATEX II 1(1)G Ex ia, IIC T4 Ga and dust rating II 1(1)D Ex ia, IIIB T200 Da.
• Dimensions: 110 mm 42.5 mm 71 mm, wall or direct-mount options.

Specifications

Category	Parameter	Specification
Core Radio & Transmission	Radio Standard	LoRa®
	LoRaWAN® Specification	Version 1.0.3
	Transmission Range	~10 km (free field, SF12)
	Max. Output Power	14 dBm
	Antenna	Internal
	Measurement Interval	60 seconds to 48 hours
	Transmission Interval	1 minute to 7 days
	Security	Full end-to-end encryption, bidirectional
Electrical & Power	Voltage Supply	3 V DC (Lithium thionyl chloride)
	Battery Model	SAFT LM17500 (potted)
	Battery Life	Up to 10 years (1 measurement/hr @ SF10)
	Electrical Connections	Angular or Circular (M12 x 1, 4-pin)
	Cable Lengths	0.19 m, 0.5 m, or 2.85 m
Operating Conditions	Ambient Temperature	-40 ... +60 °C [-40 ... +140 °F]
	Storage Temperature	-40 ... +70 °C [-40 ... +158 °F]
	Ingress Protection	IP65 (IEC/EN 60529)
	Humidity	20 ... 90% RH, non-condensing
	Vibration Resistance	5g (50 ... 200 Hz)
	Shock Resistance	25g, 6 ms
	Case Material	Grilamid TR 90 UV
Hazardous Area (Ex)	ATEX (Gas)	II 1(1)G Ex ia [ia Ga] IIC T4 Ga
	ATEX (Dust)	II 1(1)D Ex ia [ia Da] IIIB T200 135 °C Da
	IECEx	Ex ia [ia Ga] IIC T4 Ga / Ex ia [ia Da] IIIB T200 135 °C Da
	CSA (USA/Canada)	Class I, Div 1, Groups A, B, C, D; T4
	Max Output Voltage (V)	V
	Max Output Current (I)	mA

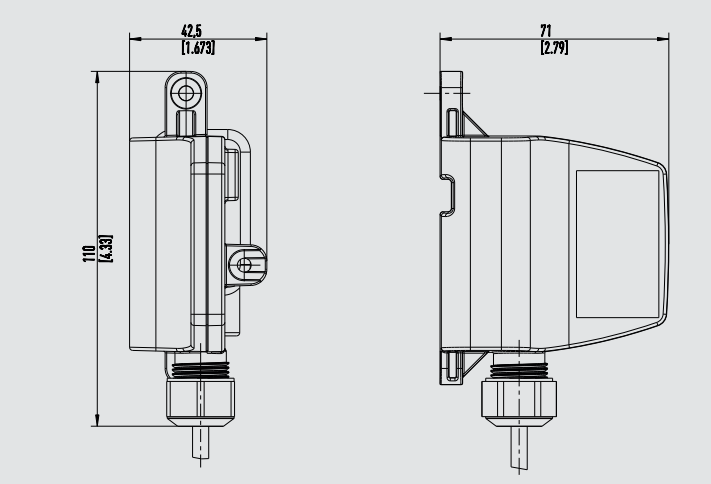

Physical Dimensions	Height	110 mm [4.33 in]
	Width	42.5 mm [1.673 in]
	Depth	71 mm [2.79 in]
	Mounting	Direct to instrument or wall mount
