Product Code: TBEL-653
MPN #: M101EK

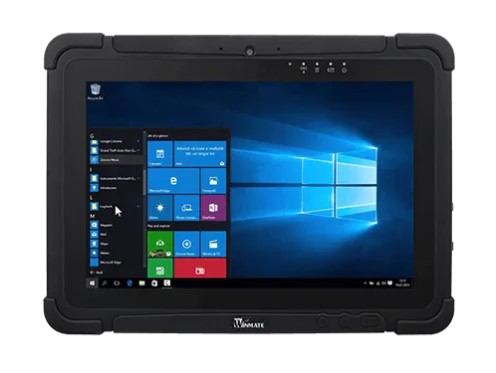

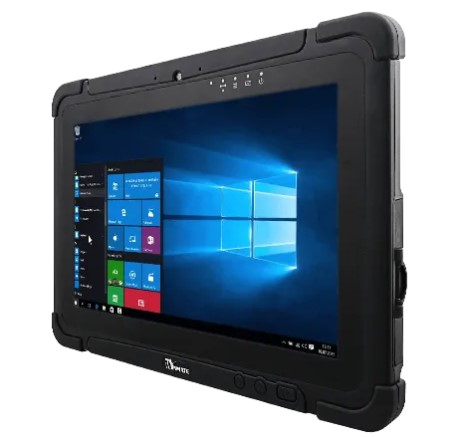

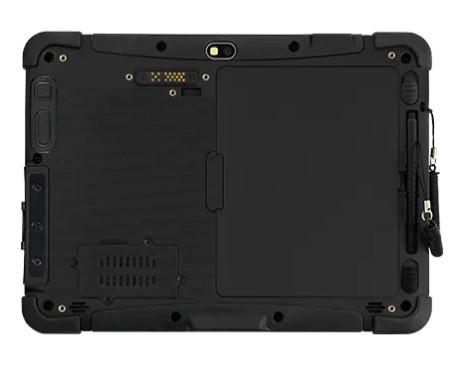

If you are working in a tough environment, you need a device that can keep up with you. Many tablets are not built to withstand rough handling or harsh conditions. This can be a big problem if you need a device for work or other activities that take you outside or into challenging situations. The Winmate M101EK Intel Celeron N6211, 4GB/128GB 10.1" Windows Rugged Tablet PC is a solution to this problem. It is built to be tough and reliable, so you can use it anywhere without worrying about it breaking. This product gives you a clear solution by providing a rugged and reliable device that can handle tough conditions.
Imagine having a device that can go with you anywhere, no matter how tough the conditions are. The Winmate M101EK is a rugged tablet PC that is built for use in harsh environments. It is used for a variety of tasks, from work in the field to activities in extreme weather. One problem that buyers face is finding a device that can keep up with their active lifestyle. The Winmate M101EK is the answer to this problem, providing a reliable and rugged device that can handle anything you throw at it. With its powerful Intel Celeron N6211 processor and 4GB of memory, this device can handle demanding tasks with ease.
| Display | |
| Size | 10.1 inches |
| Resolution | 1920x1200 |
| Type | Projected Capacitive Multi Touch |
| Panel Brightness | 800.0 nits |
| Contrast Ratio | 800:1 |
| View Angles | 85,85,85,85 |
| Bonding | Optical Bonding for Sunlight Viewability |
| Viewability | Anti-Glare touch treatment |
| System Specification | |
| Processor | Intel Celeron N6211 @1.20 GHz (up to 3.00 GHz) |
| Memory | 4GB |
| Storage |
128GB SSD Additional storage available with micro SDXC card slot |
| Smart Card Reader | Add-on Smart Card Reader (Optional) |
| Security | Trusted Platform Module (TPM) 2.0Kensington Lock |
| Operating System | Windows 11 IoT Enterprise LTSC (64 bit) |
| WLAN | Support |
| BT | Support |
| WWAN | 4G |
| GNSS | GPS, GLONASS, Galileo, BeiDou |
| Sensors | Light sensor / G-sensor / Gyro |
| Camera | |
| Front Camera | 2MP Front Camera |
| Rear Camera | 8MP Rear Camera with auto-focus and LED light |
| Mechanical | |
| Dimension | 271.9 x 197.3 x 19.5 mm |
| Weight | 1.2 kg (2.65 lbs) with standard battery,1.4 kg (3.1 lbs) with optional high capacity battery |
| Cooling System | Fanless Design |
| IO Ports | |
| USB Port | 1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In) |
| Audio | 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out)Dual Digital Mic With Noise CancellationDual Speaker |
| SD Card Slot | 1 x Micro SD Card slot (Support SDXC) |
| SIM Card Slot | 1 x SIM card slot |
| Indicator | 4x LED Indicator for Power, Battery, HDD, RF status |
| Docking Connector | 1 x 19-pin docking connector |
| Environment | |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -30°C to 70°C (-22°F to 158°F) |
| Shock | MIL-STD-810G Method 516.6 Procedure I |
| Vibration | MIL-STD-810G Method 514.6 Procedure I |
| Drop | MIL-STD-810G Method 516.6 Procedure IV, 4 ft |
| IP rating | IP65 |
| Certification | |
| Certification | CE, FCC, UL, PTCRB, Verizon |
| Control | |
| Button | 1 x Power, 1 x Home, 2 x Volume,2 x Programmable Function Keys |
| Security Function | |
| SOTI MobiControl | SOTI MobiControl Compliance |
| Kensington Lock | Kensington Lock Support |
| Accessory | |
| Accessory |
Adapter and Power Cord Capacitive Stylus Standard Battery |
| Barcode Scanner | |
| Barcode Scanner | 1D/2D barcode reader (Optional) |
| Power | |
| Battery | Hot-swappable 7.7V, typ. 5900 mAh Li-Polymer Battery (2S1P) |
| Battery Operating Time | Standard. Battery: 9 hoursHigh Capacity Battery: 16 hours |
| Power Rating | 19V DC |
| Adapter | 100-240V, 50-60Hz / 19V DC |
