| Ultra Network |
|
| 5G |
n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/71/75/76/77/78/79 |
| 4G FDD-LTE |
B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
| TDD-LTE |
B34/B38/39/B40/B41/B42/B48 |
| 3G |
HSPA/UMTS B1/B2/B3/B4/B5/B6/B8/B19 |
| Hardware System |
|
| Processor |
MQualcomm ARM A53 Quad-core 1.8GHz |
| RAM |
1GB DDR3 RAM |
| Flash |
256MB NAND FLASH |
| Hardware Watchdog |
Hardware Watchdog |

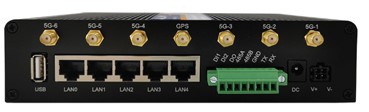

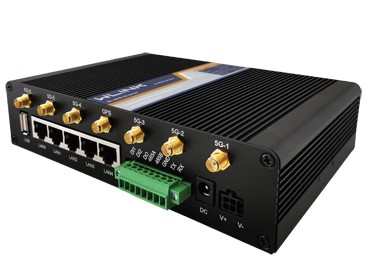

| Interface |
|
| Ethernet |
4x Gigabit Ethernet |
| USB |
1x USB 2.0 |
| Terminal Block Connector |
8Pins Terminal block connector |
| I/O |
2x I/O(Dry contact), 1x RS232, 1xRS485 |
| DC |
1x DC(2Pins plugs) |
| SIM Slot |
2x SIM Slot |
| 5G Antenna Interface |
4x SMA-K(Female) 5G Antenna Interface |
| GPS Antenna Interface |
1x GPS Antenna Interface |
| Wi-Fi Interface |
2x SMA-RP Wi-Fi Interface |
| GPS |
|
| GPS Sensitivity |
-160dBm |
| GPS Accuracy |
2.5m CEP |
| Update Rate |
1Hz@5Hz |
| Time to First Fix |
Cold Status 27s, Hot status 1s |
| Protocol |
NMEA-0183 2.3V |
| LED Indicators |
|
| LED Indicators |
PWR, Signal, WLAN, NET, LAN (LAN1~LAN4, WAN) |
| WLAN (Wi-Fi6) |
|
| Wi-Fi Standard |
IEEE 802.11 n/ac |
| 2.4GHz |
2x2 2.4GHz mumimo ofdma 600Mbps |
| 5GHz |
2x2 5GHz MU-MIMO OFDMA 1201Mbps |
| Consumption |
|
| Voltage |
DC +9~60V (standard 12V/2A power adapter) |
| SIM/R-UIM Card |
1.8V/3V |
| Idle |
600mA@+12VDC |
| Online |
750mA@+12VDC |
| Other |
|
| Housing |
Galvanized metal with grounding Screw |
| Dimension |
142mm x 108mm x 48mm (not including antenna) |
| Weight |
750g (not including accessories) |
| Operation temperature |
-30~+75℃ |
| Storage Temperature |
-40~+85℃ |
| Relative Humidity |
0~95% (non-condensing) |
| Guarantee |
Two years |
| Compliance |
|
| Compliance |
FCC, CE, RoHS, CCC |
| Package Content |
|
| Package Content |
1x WL-G535 Router, 4x Wi-Fi antennas, 4x 5G Magnetic antennas, 1x Ethernet Cable, 1x Power Supply Adapter |
| Software |
|
| Operating System |
WLINK OS based on Linux |
| Firewall |
|
| Firewall |
SNAT/DMZ, Port Forwarding, IP/Mac/Key Word/Domain Name Filter, Access Control, Anti-DoS |
| Network Protocol |
|
| Network Protocol |
IPv4, IPv6, PPPoE, UDP/TCP/ICMP/NTP/DHCP, HTTP/HTTPS, UPNP, SNMP, TR069 |
| Network Monitoring |
|
| Network Monitoring |
ICMP Check, Traffic Check, Traceroute, Data Capture, Bandwidth Graph, Data Traffic Graph |
| VPN |
|
| Wireguard |
Wireguard VPN Client and Server supported |
| Zerotier |
Zerotier VPN |
| GRE Tunnel |
GRE Tunnel |
| OpenVPN |
tls1.2, Encryption as DES, RC2, BF, 3DES, CASTS, AES, SEED 45 encryption method |
| PPTP/L2TP |
Clent mode, L2TP v3 supported |
| IPsec |
GRE Over IPsec, L2TP over IPsec, Two tuunels, Failover, IKEv1, 1KEv2, DES,
AES128, AES192, AES256 multiple encryption methods supprted.
|
| DMVPN |
mGRE, NHRP, IPsec |
| Network Features |
|
| Network Features |
5G/WAN Failover, VLAN, Bandwidth Management, NAT/DMZ, IP Passthrough / Port Redirection,Static/Dynamic routing |
| Router Management |
|
| Router Management |
Local/Remote GU, ITelnet/SSH, WLINK M2M Platform |
| WLAN Mode |
|
| WLAN Mode |
Access Point, AP + WDS, Wireless Client, Wireless Ethernet Bridge, WDS |
| Wi-Fi Network Mode |
|
| Wi-Fi Network Mode |
2.4G, 5G, 2.4G&5G |
| WiFi Security |
|
| WiFi Security |
WEP, WPA Personal/Enterprise, WPA2 Personal/Enterprise, WPA/WPA2 Personal/Etnerprise, Radius |
